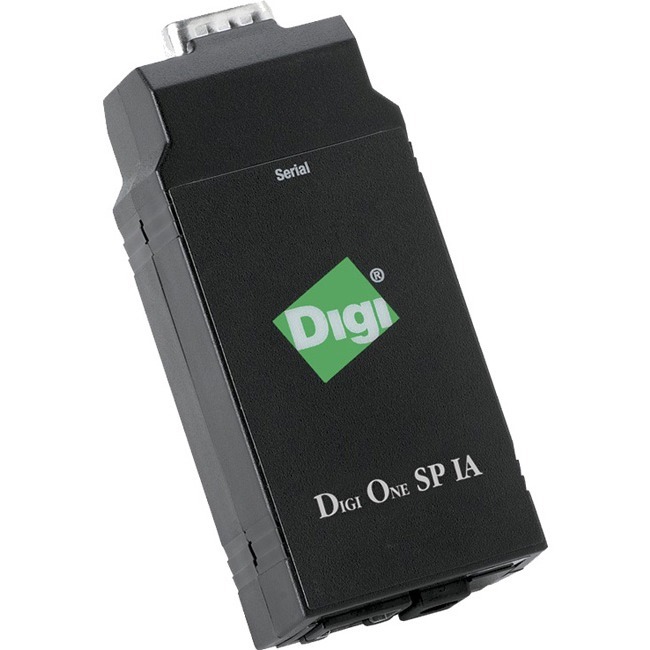

Digi One SP IA Terminal Server
Digi One SP IA Terminal Server - 1 x RJ-45
| $802.30 |
By:
Digi
Manufacturer:
Digi International
Product ID:
75195
Item:
70001999
UPC Code:
663072928155
Our Part #
9J1105
Condition
New
$802.30EA
Availability
Only 9999 Left In Stock
Product description
Digi One SP IA Terminal Server - 1 x RJ-45
1 x RJ-45
Specifications
Network (RJ-45)
Yes
UPC Alternates
663072928155
Additional Information
- RS-232/422/485 switch selectable
- Input power supports 9-30VDC @ 0.5Amps max
Brand Name
Digi
Certifications & Standards
- IEEE 802.3
- IEEE 802.3u
- FCC Part 15 Subpart B Class A
- EN55022 Class A
- EN55024
- EN61000-3-23
- UL 60950
- CAN/CSA C22.2 No.60950
- EN60950
Depth
0.9"
Ethernet Technology
Fast Ethernet
Form factor
Wall Mountable
Height
3.7"
Input current
400 mA
Input voltage
220 V AC
Input voltage
110 V AC
Manufacturer
Digi International
Manufacturer Part Number
70001999
Manufacturer Website Address
http://www.digi.com
Marketing Information
The Digi One SP IA serial server allows any industrial device with a serial port to be easily connected to Ethernet. The compact device server features one RS- 232/422/485 DB-9 serial port making it an optimum solution for many industrial automation applications. The Digi One SP IA supports most industrial automation protocols through serial tunnelling TCP/UDP connections or Digi's patented RealPort software. RealPort makes it possible to establish a connection between the host and networked serial device by creating a local COM or TTY port on the host computer allowing existing software applications to work without modification.
Number of Network (RJ-45) Ports
1
Package Contents
- Digi One SP IA Terminal Server
- DIN Rail brackets
- Wall mount brackets
Product Line
One SP
Product Model
IA
Product Name
One SP IA Terminal Server
Product Type
Terminal Server
Weight (Approximate)
2.29 oz
Width
1.7"
