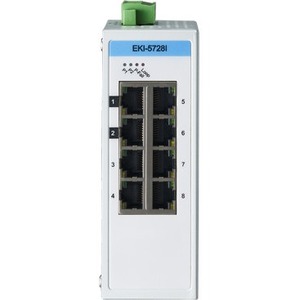

Advantech 8GE Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, E-Mark, -40~75?
Advantech 8GE Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, E-Mark, -40~75? - 8 Ports - 2 Layer Supported - Twisted Pair - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty
| $343.38 |
- Communicates with SCADA software via Modbus/TCP
- Communicates with NMS (Networking management system) via SNMP
- Port-based QoS for deterministic data transmission
- -40~75°C operating temperature range
- 8.4~52.8 V DC wide-range power input
- EMS level 3 protection for extreme outdoor environments
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Jumbo Frame Support (Up to 9,216 Bytes)
- Supports redundant 12~48V DC power input and P-Fail relay
- Loop detection
By:
Advantech
Manufacturer:
Advantech Co., Ltd
Product ID:
78977
Item:
EKI-5728I-AE
Our Part #
9U9072
Condition
New
$343.38EA
Availability
Only 6 Left In Stock
Product description
Advantech 8GE Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, E-Mark, -40~75? - 8 Ports - 2 Layer Supported - Twisted Pair - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty
8 Ports - 2 Layer Supported - Twisted Pair - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty
Specifications
Total Number of Network Ports
8
Brand Name
Advantech
Country of origin
China
Depth
3.7"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Form factor
Wall Mountable
Form factor
DIN Rail Mountable
Height
4.7"
Layer Supported
2
Limited Warranty
5 Year
Manageable
No
Manufacturer
Advantech Co. Ltd
Manufacturer Part Number
EKI-5728I-AE
Manufacturer Website Address
http://www.advantech.com
Marketing Information
The EKI-5725/I and EKI-5728/I are the world's first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5725/I and EKI-5728/I switches use the highest quality components to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.
Media Type Supported
Twisted Pair
Network Technology
10/100/1000Base-TX
Packaged Quantity
1
Port/Expansion Slot Details
8 x Gigabit Ethernet Network
Product Model
EKI-5728
Product Name
8GE Unmanaged Ethernet Switch ATEX/C1D2/IECEx E-Mark -40~75?
Product Type
Ethernet Switch
Weight (Approximate)
1.10 lb
Width
1.7"
