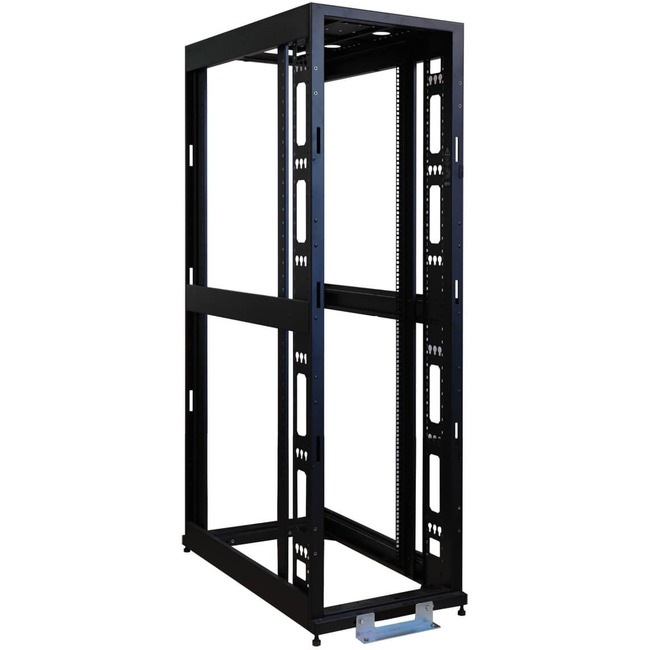

Tripp Lite 45U 4-Post Open Frame Rack Cabinet Square Holes 3000lb Capacity

Tripp Lite 45U 4-Post Open Frame Rack Cabinet Square Holes 3000lb Capacity - 45U Rack Height x 19" Rack Width - Rack-mountable - Black - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity
$1,161.62Retail $1,724.40
  • 45U SmartRack Premium open frame rack
  • 4 interior vertical posts with unthreaded square hole openings
  • Standard 24" (600mm) width and 42" (1050mm) depth for optimizing floor space
  • Ships fully assembled
  • 3000 lb stationary / 2250 lb rolling load capacity
  • Preinstalled casters and leveling feet
  • Includes 50 pieces of M6 cage nuts and 50 pieces of M6 screws (equipment mounting hardware)
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
83655
Item:
SR45UBEXPND
UPC Code:
037332174567
Our Part #
PG1647
Condition
New
$1,161.62EA
$1,724.40
Availability Only 5 Left In Stock
Great Deals Everyday

You may be also interested

Product description

Tripp Lite 45U 4-Post Open Frame Rack Cabinet Square Holes 3000lb Capacity - 45U Rack Height x 19" Rack Width - Rack-mountable - Black - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity
45U Rack Height x 19" Rack Width - Rack-mountable - Black - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity

Specifications

Dynamic/Rolling Weight Capacity
2250 lb
Rack Width
19"
Static/Stationary Weight Capacity
3000 lb
Units Per Pallet
1
UPC Alternates
037332174567
Additional Information
  • 4 Interior vertical posts with unthreaded square hole openings
  • Preinstalled casters and leveling feet
  • Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
  • Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses
  • Maximum usable internal depth of 37 inches/94 cm (front to rear rail).
  • Built in baying tabs allow premium open frame racks to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles.
  • Leveling feet extend to allow premium open frame racks to be positioned on uneven floors. Levelers are removable.
  • Convenient grounding system. All components are grounded to the premium open frame rack structure which includes multiple connections for facility ground.
  • Open bottom for cable access.
  • Grounding lug: Front and Back door frames
Assembly Required
No
Brand Name
Tripp Lite
Certifications & Standards
  • UL60950
  • CE
  • EIA/ECA-310-E
  • IEC 60297-3-100
  • DIN 41494
Country of origin
China
Depth
43"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Height
83.8"
Limited Warranty
5 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
SR45UBEXPND
Manufacturer Website Address
http://www.tripplite.com
Marketing Information

The SR45UBEXPND is 45U SmartRack enclosure with NO doors and NO side panels. The 'EXP' version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.

The SR45UBEXPND houses 3000 lb of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.

All components of the SR45UBEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.

To simplify deployment the SR45UBEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

The SR45UBEXPND comes with a 5-year product warranty. As part of the SmartRack family the SR45UBEXPND is compatible with Tripp Lite's extensive range of rackmount accessories enabling you to customize your solution to meet any requirement.

Package Contents
  • 45U 4-Post SmartRack Premium Open Frame Rack
  • 50 x M6 Cage Nuts
  • 50 x M6 Screws
  • Mounting Hardware
  • Stabilizing Brackets
Product color
Black
Product Line
SmartRack
Product Name
45U 4-Post SmartRack Premium Open Frame Rack
Product Type
Rack Frame
Rack Height
45U
Weight (Approximate)
147 lb
Width
23.6"
