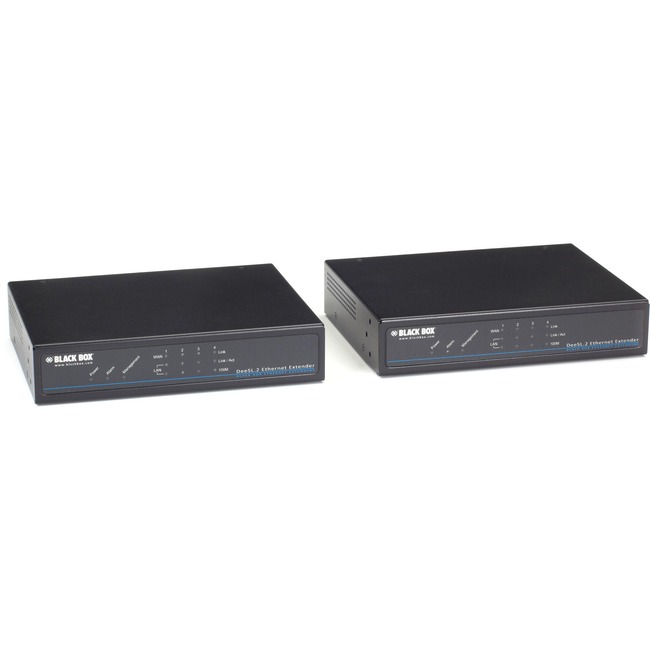

Black Box Managed Ethernet Extender Kit - 4-Wire, 4-Port
Black Box Managed Ethernet Extender Kit - 4-Wire, 4-Port
| $1,496.10 | Retail $1,695.95 |
- Four Ethernet ports
- Support QoS, CoS, and VLAN: Ensure mission-critical network connections are of top quality with advanced traffic management features.
- A built-in console port makes setup a snap. And you can also use the embedded HTTP/SNMP agent to remotely manage the unit from anywhere in the world.
- An advanced auto-rate algorithm automatically determines the best possible baud rate for each connection and sets up the extender without the need for user interface.
- The unit has a built-in MDI-X switch, so it'll work with either a straight-through cable or a crossover cable.
- Plug-and-play! Just plug it in, power it on, and it's up and running.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
86139
Item:
LB524A-KIT-R2
UPC Code:
822088125624
Our Part #
1V9701
Condition
New
$1,496.10EA
$1,695.95
$1,695.95
Availability
Only 8 Left In Stock
Product description
Black Box Managed Ethernet Extender Kit - 4-Wire, 4-Port
Specifications
UPC Alternates
822088125624
Additional Information
Compliance FCC Part 15A; EMC Directive 89/336/EEC; Low-Voltage Directive 73/23/EEC
Data Rate 22.8 Mbps at 0.8 mi. (1.4 km) full-duplex maximum
Distance 5.2 mi. (8.4 km) maximum
LAN Protocols 802.1d transparent bridging; 2K MAC address learning bridge
Management Interface Web-based GUI; CLI for local and console access; password protected; SNMPv1/v2 (RFC 1157/1901/1905) agent and MIB (RFC 1213/1493; software upgradable via Web browser/TFTP
Modulation TC-PAM 32; 16
MTU Support 1792 bytes
Operation Ethernet: Full- or half-duplex
QoS Support Rate limiting rule-based/port-based; traffic classification based on port/802.1p/DSCP; WRR (weighted round robin)/SPQ (strict priority queueing) scheduling algorithm
VLAN Support IEEE 802.1q VLAN Tagging; Port-based VLAN up to 4000 VLANs. VLAN Stacking (Q-in-Q)
Interface Ethernet: 10BASE-T/100BASE-TX
Connectors (4) 8-position shielded RJ-45 Ethernet;
Local/remote interconnect link: (1) shielded RJ-45;
Management: Web: (1) shielded RJ-45; console: (1) shielded RJ-45;
Power: (1) Universal Input (UI);
Link: (1) 10BASE-T/100BASE-TX autosensing with half- or full-duplex operation
Indicators Power Alarm Diagnostic (4) WAN link (4) Ethernet Link; (4) Ethernet 100M
Environmental Operating temperature: +32 to +122° F (0 to +50° C);
Storage temperature: -40 to +185° F (-40 to +85° C)
Power 90-240 VAC 50-60 Hz universal
Data Rate 22.8 Mbps at 0.8 mi. (1.4 km) full-duplex maximum
Distance 5.2 mi. (8.4 km) maximum
LAN Protocols 802.1d transparent bridging; 2K MAC address learning bridge
Management Interface Web-based GUI; CLI for local and console access; password protected; SNMPv1/v2 (RFC 1157/1901/1905) agent and MIB (RFC 1213/1493; software upgradable via Web browser/TFTP
Modulation TC-PAM 32; 16
MTU Support 1792 bytes
Operation Ethernet: Full- or half-duplex
QoS Support Rate limiting rule-based/port-based; traffic classification based on port/802.1p/DSCP; WRR (weighted round robin)/SPQ (strict priority queueing) scheduling algorithm
VLAN Support IEEE 802.1q VLAN Tagging; Port-based VLAN up to 4000 VLANs. VLAN Stacking (Q-in-Q)
Interface Ethernet: 10BASE-T/100BASE-TX
Connectors (4) 8-position shielded RJ-45 Ethernet;
Local/remote interconnect link: (1) shielded RJ-45;
Management: Web: (1) shielded RJ-45; console: (1) shielded RJ-45;
Power: (1) Universal Input (UI);
Link: (1) 10BASE-T/100BASE-TX autosensing with half- or full-duplex operation
Indicators Power Alarm Diagnostic (4) WAN link (4) Ethernet Link; (4) Ethernet 100M
Environmental Operating temperature: +32 to +122° F (0 to +50° C);
Storage temperature: -40 to +185° F (-40 to +85° C)
Power 90-240 VAC 50-60 Hz universal
Brand Name
Black Box
Certifications & Standards
CE
Country of origin
United States
Depth
6.6"
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
1.9"
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
LB524A-KIT-R2
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
This kit includes a pair of auto-rate Ethernet extenders using a standard 2-wire connection which simplifies your life and provides cost-effective network extension by enabling you to make the most of your pre-existing twisted-pair infrastructure.
You'll be able to connect remote LANs across distances and at speeds previously unheard of. An auto-rate feature ensures that you achieve the highest possible speed on each connection.
It's easy to use too. Plug-and-play means that you'll be up and running in seconds and the built-in MDI-X works with either straight-through or crossover cables.
The pair autosenses the data rate up to 22.8 Mbps at a distance of 4750 feet (1450 m) to provide reliable broadband connectivity with full-duplex symmetric rates with lower speeds at longer distances of up to about 5.2 miles (8.3 km).
LB524A-KIT Distance Chart
4-Wire Standard
Distance on 24 AWG (0.5 mm):
Ethernet Extender Kit 4 Port 4 Wire Managed. Extends 4 ports 10/100Mbps Ethernet RJ45 over copper or CATx line interface RJ45. The kit includes 2 extenders for near-end (local) far-end (remote) deployment. Typical applications include Enterprise LAN extension campus LAN expansion. This kit includes a pair of auto-rate Ethernet extenders using a standard 4-wire connection which simplifies your life and provides cost-effective network extension by enabling you to make the most of your pre-existing twisted-pair infrastructure. These 4 port 10BASE-T/100BASE-TX Ethernet Extenders use G-SHDSL technology to provide an easy inexpensive way to extend the reach of your Ethernet network over ordinary voice-grade copper wire. Devices include external 90-240VAC power supplies. Management interfaces include a web based GUI SNMP and a console port.
Product Name
Managed Ethernet Extender Kit - 4-Wire 4-Port
Product Type
Network Extender
Width
7.7"
