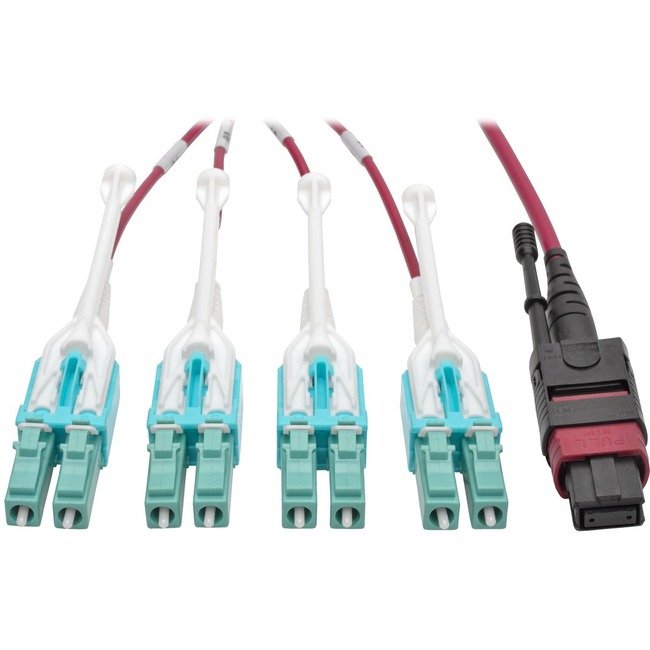

Tripp Lite 1M MTP MPO 8xLC 50/125 OM4 Fanout Patch Cable 12 Fiber 40GB CMP
Tripp Lite 1M MTP MPO 8xLC 50/125 OM4 Fanout Patch Cable 12 Fiber 40GB CMP - Fiber Optic for Network Device, Switch - 5 GB/s - Fan-out Cable - 3.28 ft - 1 x MTP/MPO Female Network - 8 x LC Male Network - Magenta
| $198.48 | Retail $289.60 |
- Push/pull tab connectors install/remove with one hand
- Plenum-rated jacket for connecting in ceilings, walls and ducts
- Magenta color for easy OM4 identification
- Slim, space-saving uniboot design for neat cable management
- Premium-grade ceramic ferrule designed for fast applications
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
86500
Item:
N845-01M-8L-MG
UPC Code:
037332200044
Our Part #
6B7184
Condition
New
$198.48EA
$289.60
$289.60
Availability
Only 61 Left In Stock
Product description
Tripp Lite 1M MTP MPO 8xLC 50/125 OM4 Fanout Patch Cable 12 Fiber 40GB CMP - Fiber Optic for Network Device, Switch - 5 GB/s - Fan-out Cable - 3.28 ft - 1 x MTP/MPO Female Network - 8 x LC Male Network - Magenta
Fiber Optic for Network Device, Switch - 5 GB/s - Fan-out Cable - 3.28 ft - 1 x MTP/MPO Female Network - 8 x LC Male Network - Magenta
Specifications
Connector on First End Details
1 x MTP/MPO Network - Female
Connector on Second End Details
8 x LC Network - Male
Connector Type on First End
MTP/MPO Network - Female
Connector Type on Second End
LC Network - Male
UPC Alternates
037332200044 728072404990
Brand Name
Tripp Lite
Cable Characteristic
Fan-out Cable
Cable length
3.30 ft
Cable type
Fiber Optic
Color
Magenta
Connector on First End
1 x MTP/MPO Female Network
Connector on First End
MTP/MPO Female Network
Connector on Second End
LC Male Network
Connector on Second End
8 x LC Male Network
Country of origin
China
Data transfer rate
40 Gbit/s
Device Supported
Switch
Device Supported
Network Device
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
Uniboot Connector
Fiber Optic Mode
Multi-mode
Limited Warranty
Lifetime
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N845-01M-8L-MG
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The one-meter N845-01M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable supports 40 Gb Ethernet speeds and is designed for high-density connections between 40GBASE-SR4 network equipment. With one male MTP/MPO and eight male LC connectors this OM4-rated multimode fiber optic fan-out cable supports various multi- and single-fiber connections. It fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction.
Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The magenta-colored N845-01M-8L-MG features a premium-grade ceramic ferrule for 10 GbE and faster applications. The slim space-saving uniboot design makes cable easier to manage. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings walls and ducts. The sturdy plastic housing is built to last a long time.
Product color
Magenta
Product Name
N845-01M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable Magenta 1 m
Product Type
Network Cable
