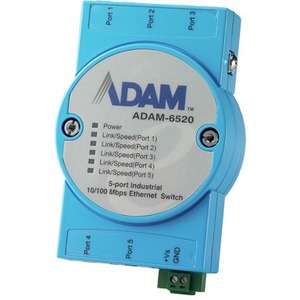

Advantech 5-port 10/100 Mbps Industrial Ethernet Switch
Advantech 5-port 10/100 Mbps Industrial Ethernet Switch - 5 Ports - 2 Layer Supported - Twisted Pair - DIN Rail Mountable, Wall Mountable
| $97.39 | Retail $112.35 |
- Supports full/half duplex flow control
- Supports MDI/MDI-X auto crossover
- Embedded with a switch controller, supports auto-negotiation
- Supports +10 ~ 30 VDC voltage power input
- Provides surge (EFT) protection 3,000 V
- DC for power line (ADAM-6520L not equipped)
- Supports 4,000 VDC Ethernet ESD protection (ADAM-6520L not equipped)
- Provides flexible mounting: DIN-rail, Wall, Stack
- Supports wide operating temperature range : -40 ~ 85° C (ADAM-6520I)
By:
Advantech
Manufacturer:
Advantech Co., Ltd
Product ID:
88854
Item:
ADAM-6520-BE
Our Part #
3BC589
Condition
New
$97.39EA
$112.35
$112.35
Availability
Only 130 Left In Stock
Product description
Advantech 5-port 10/100 Mbps Industrial Ethernet Switch - 5 Ports - 2 Layer Supported - Twisted Pair - DIN Rail Mountable, Wall Mountable
5 Ports - 2 Layer Supported - Twisted Pair - DIN Rail Mountable, Wall Mountable
Specifications
Total Number of Network Ports
5
Brand Name
Advantech
Country of origin
Taiwan
Depth
1.1"
Ethernet Technology
Fast Ethernet
Form factor
Wall Mountable
Form factor
DIN Rail Mountable
Height
4"
Layer Supported
2
Manageable
No
Manufacturer
Advantech Co. Ltd
Manufacturer Part Number
ADAM-6520-BE
Manufacturer Website Address
http://www.advantech.com
Marketing Information
ADAM-6520 is a 5-port industrial-grade switch with Ethernet connectivity and from 10 to 100 Mbps transfer rates. (Auto-negotiation). Just like any other product in the ADAM family ADAM-6520 can bemounted in three different ways: DIN rail Walland Stack. Solid industrial-grade design assuresreliable operation in common application areaslike:semi-conductor factories inventory control environments assembly lines manufacturing and many more.
All modules support a wide voltage range of +10 ~ 30 VDC over the terminal block and 3000 VDC surge (EFT) protection ensures that over-voltage is no concern. The wide operating temperature of ADAM-6520 goes from -10 ~ 70° while ADAM-6520I from -40 ~ 85°. This permits them to be functional in harsh environments.
The six inclusive LED indicators make troubleshooting of the modules easier. Each port has a pair of LEDs that indicate link status and port activities. This easily informs users of any collisions the link status power failure and data receipts for immediate on-site diagnosis.
All modules support a wide voltage range of +10 ~ 30 VDC over the terminal block and 3000 VDC surge (EFT) protection ensures that over-voltage is no concern. The wide operating temperature of ADAM-6520 goes from -10 ~ 70° while ADAM-6520I from -40 ~ 85°. This permits them to be functional in harsh environments.
The six inclusive LED indicators make troubleshooting of the modules easier. Each port has a pair of LEDs that indicate link status and port activities. This easily informs users of any collisions the link status power failure and data receipts for immediate on-site diagnosis.
Media Type Supported
Twisted Pair
Network Technology
10/100Base-TX
Port/Expansion Slot Details
5 x Fast Ethernet Network
Product Name
5-port 10/100 Mbps Industrial Ethernet Switch
Product Series
ADAM-6520
Product Type
Ethernet Switch
Width
2.8"
