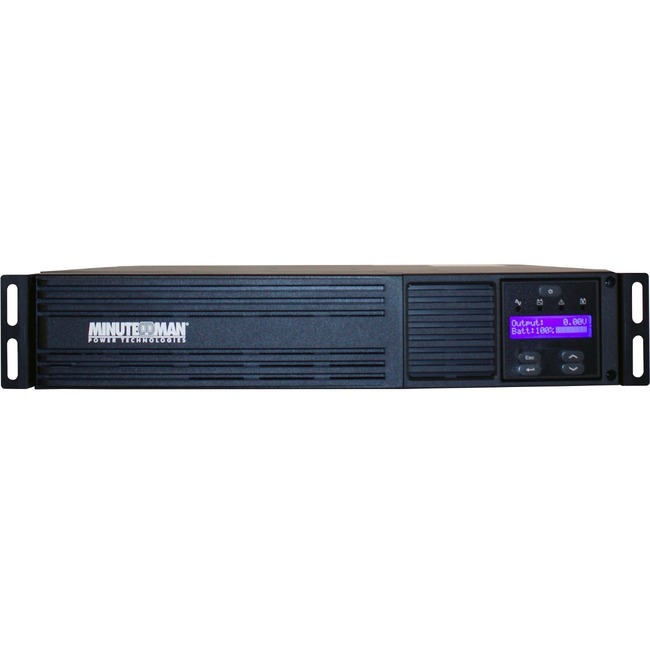

Minuteman EXR Series Line Interactive Uninterruptible Power Supply
Minuteman EXR Series Line Interactive Uninterruptible Power Supply - 2U Tower/Rack/Wall Mountable - AVR - 4 Minute Stand-by - 120 V AC Input - 120 V AC, 208 V AC Output - 8 x NEMA 5-15R
| $822.88 |
- Works adequately in situations where the supply is prone to sags and surges
- Up to 4 minute runtime on full load to preserve critical data from power shortage interruptions
By:
Minuteman
Manufacturer:
Para Systems, Inc
Product ID:
90699
Item:
EXR1000RT2U
Our Part #
9BK820
Condition
New
$822.88EA
Availability
Only 187 Left In Stock
Product description
Minuteman EXR Series Line Interactive Uninterruptible Power Supply - 2U Tower/Rack/Wall Mountable - AVR - 4 Minute Stand-by - 120 V AC Input - 120 V AC, 208 V AC Output - 8 x NEMA 5-15R
2U Tower/Rack/Wall Mountable - AVR - 4 Minute Stand-by - 120 V AC Input - 120 V AC, 208 V AC Output - 8 x NEMA 5-15R
Specifications
Load Capacity (VA)
1000 VA
Load Capacity (W)
900 W
Maximum Operating Elevation
9842.52 ft
Operating Humidity
0% - 95%
Phase
Single Phase
Receptacle Detail
8 x NEMA 5-15R
Waveform Type
True Sine Wave
Application/Usage
Data Center
Application/Usage
Network
Application/Usage
Security System
Application/Usage
Education
Application/Usage
Network Closet
Application/Usage
Electronic Equipment
Application/Usage
Mission Critical Equipment
Backup/Run Time (Full Load)
4 Minute
Backup/Run Time (Half Load)
13 Minute
Brand Name
Minuteman
Country of origin
China
Dataline Protection
RJ-45
Environmental Certification
ENERGY STAR 2.0
Environmental Certification
RoHS 2
Form factor
Tower/Rack/Wall Mountable
Height
3.5"
Hot Swappable
Yes
Input frequency
60 Hz
Input voltage
120 V AC
Input Voltage Range
80 V AC - 164 V AC
Limited Warranty
3 Year
Load Capacity
1000 VA/900 W
Manufacturer
Para Systems Inc
Manufacturer Part Number
EXR1000RT2U
Manufacturer Website Address
http://www.minutemanups.com
Marketing Information
Backup Versatility Redefined: Line Interactive Technology with True-sinewave output
The EXR Series offers users a robust and advanced line interactive UPS offering. New features include a higher power factor for improved UPS efficiency auto-recognition of external battery packs for a smarter extended run-time solution tool-less battery connection and replacement and so much more!
The EXR Series UPSs offer complete protection from all electrical problems including spikes surges sags brownouts and blackouts in a versatile rack/tower convertible format. True sine wave electrical output ensures the best power for sensitive electronic equipment.
EXR® Key Features
Key Features Include:
- 0.9 power factor - increased capacity without migrating to larger models
- NEW Alphanumeric LCD Dot Matrix display - easy access to key UPS statuses
- UPS configuration options via front panel - make key adjustments utilizing the front panel LCD
- Load shedding - two power banks allow equipment prioritizing for increased runtime
- Independent Battery Bypass™ - provides voltage regulation with surge and spike protection even when batteries are weak or dead.
- Auto-recognition of external battery packs - automatically recalculate runtimes
- Unlimited runtime capability with external battery packs - extended runtime solution to meet any backup power demand
- Flexible installation - rack or tower configurable; wall mount kits available
- Simultaneous USB RS232 and SNMP communications
- Minuteman® SentryHD™ - UPS monitoring and control software included
- Industry-leading product warranty - featuring a 3-year non-prorated warranty (including batteries)
- Dedicated remote Emergency Power Off (EPO) port
- 120V & 208V - 208V models available (1500 & 3000VA models)
- cULus certification - NOM certification (Mexico)
- RoHS 2 compliant
- Energy Star 2.0 certification
Front LCD Panel
The NEW Alphanumeric LCD Dot-Matrix EXR Series Display
Provides more detailed information about the UPS status than the previous LCD display including:
- Input and Output Voltage
- Estimated runtime
- UPS Operating Mode
- UPS Self-test results
- Battery Condition
- Display model and serial number
- View load bank status and capacities
- Display battery module part number
- Replace Error Codes with descriptions
The LCD panel is designed so that it can be oriented vertically or horizontally depending on the installation orientation of the UPS.
Maximum Operating Temperature
104°F (40°C)
Network Management
SNMP
Output voltage
208 V AC
Plug/Connector Type
NEMA 5-15P
Product Name
EXR Series Line Interactive Uninterruptible Power Supply
Product Series
EXR
Product Type
Line-interactive UPS
Rack Height
2U
Receptacle Type
NEMA 5-15R
Software Included
Minuteman SentryHD
Status Indicators
Front LCD Panel:
- Input and Output Voltage
- Estimated runtime
- UPS Operating Mode
- UPS Self-test results
- Battery Condition
- Display model and serial number
- View load bank status and capacities
- Display battery module part number
- Replace Error Codes with descriptions
Surge energy rating
1000 J
Weight (Approximate)
41.70 lb
Width
19"
