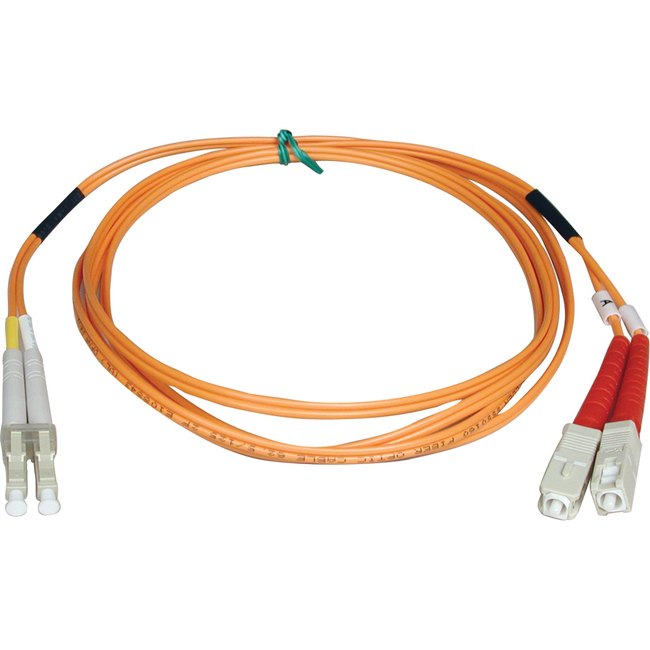

Tripp Lite 3M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/SC 10' 10ft 3 Meter
Tripp Lite 3M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/SC 10' 10ft 3 Meter - LC Male - SC Male - 9.84ft - Orange
| $12.41 | Retail $18.32 |
- Premium PVC 50/125 multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth, optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
91231
Item:
N516-03M
UPC Code:
037332117229
Our Part #
371623
Condition
New
$12.41EA
$18.32
$18.32
Availability
Only 355 Left In Stock
Product description
Tripp Lite 3M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/SC 10' 10ft 3 Meter - LC Male - SC Male - 9.84ft - Orange
LC Male - SC Male - 9.84ft - Orange
Specifications
Connector on First End Details
2 x LC - Male
Connector on Second End Details
2 x SC Network - Male
Connector Type on First End
LC - Male
Connector Type on Second End
SC Network - Male
Jacket Material
Polyvinyl Chloride (PVC)
UPC Alternates
037332117229 818242610624
Additional Information
- Number of fibers: 2
- Primary coating diameter: 245+/-15 microns
- Primary coating material: Acrylate
- Secondary coating diameter: 900+/-50 microns
- Numeric apeture: .275 nominal
- Proof test level: 100000 PSI
- Insertion loss testing performed on every connector (0.2db typical) and provided with cable
- Beveled edge on ends of glass makes insertion of plug a breeze
- Color coded/labeled connectors
Applications:
- Gigabit
- 10Gbps networks
- Fiber and fibre channel installations
Brand Name
Tripp Lite
Cable Characteristic
Patch Cable
Cable length
10 ft
Cable type
Fiber Optic
Certifications & Standards
- FDDI
- OFNR
Color
Orange
Compatibility
- Network Interface Card Fiber optic card requiring multimode duplex cable with LC/SC connectors
Connector on First End
2 x LC Male
Connector on First End
LC Male
Connector on Second End
2 x SC Male
Connector on Second End
SC Male
Core/Cladding Diameter
50/125 µm
Country of origin
China
Limited Warranty
Lifetime
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N516-03M
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Tripp Lite's 3-meter multimode duplex Fibre Channel SC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on one end and LC at the other a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1 2 5 10 15 20 30 and 50 meter lengths. Search "N516-" to bring up all lengths. Also search "N506-" for SC-SC cables and "N520-" for LC-LC cables. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
Package Contents
- Duplex Fibre Channel Patch Cable
- 3M Duplex MMF Cable LC/SC 50/125 Fiber
Product color
Orange
Product Name
Duplex Fibre Channel Patch Cable
Product Type
Network Cable
