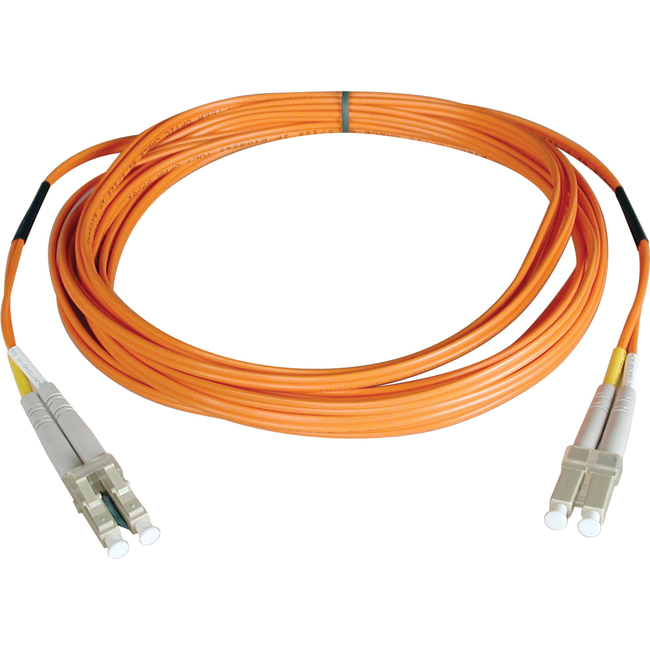

Tripp Lite 20M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/LC 65' 65ft 20 Meter
Tripp Lite 20M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/LC 65' 65ft 20 Meter - LC Male - LC Male - 65.62ft
| $30.04 | Retail $44.08 |
- Perfect for use with Fibre Channel Controller Cards and Switches
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth, optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- Premium PVC multimode patch cables
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
91326
Item:
N520-20M
UPC Code:
037332123619
Our Part #
F62063
Condition
New
$30.04EA
$44.08
$44.08
Availability
Only 130 Left In Stock
Product description
Tripp Lite 20M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/LC 65' 65ft 20 Meter - LC Male - LC Male - 65.62ft
LC Male - LC Male - 65.62ft
Specifications
Connector on First End Details
2 x LC - Male
Connector Type on First End
LC - Male
UPC Alternates
037332123619
Additional Information
- Use on fiber and fibre channel installations
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Fiber type: all glass graded index
- Core diameter: Two 50+/-3 microns
- CLAD diameter: 125+/-2 microns
- Primary coating diameter: 245+/-15 microns
- Primary coating material: acrylate
- Secondary coating diameter: 900+/-50 microns
- Attenuation @850NM: 3.5DB/KM maximum @1300NM: 1.0DB/KM maximum
- Bandwidth @850NM: 220 MHz-KM minimum @1300NM: 600 MHz-KM minimum
- Proof test level: 100000 PSI
- Insertion loss testing performed on every connector (0.2db typical) and provided with cable
- Beveled edge on ends of glass makes insertion of plug a breeze
Brand Name
Tripp Lite
Cable Characteristic
Patch Cable
Cable length
65.60 ft
Cable type
Fiber Optic
Certifications & Standards
- FDDI
- OFNR
Connector on First End
2 x LC Male
Connector on First End
LC Male
Core/Cladding Diameter
50/125 µm
Country of origin
China
Jacket Type
Plenum
Limited Warranty
Lifetime
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N520-20M
Manufacturer Part Number
N52020M
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Tripp Lite's 20-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1 2 3 5 10 15 25 30 and 50 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables search "N516-" and for SC-SC search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
Package Contents
- Fiber Optic Patch Cable
- 20M Duplex MMF Cable LC/LC 50/125 Fiber
Product Name
Fiber Optic Patch Cable
Product Type
Network Cable
