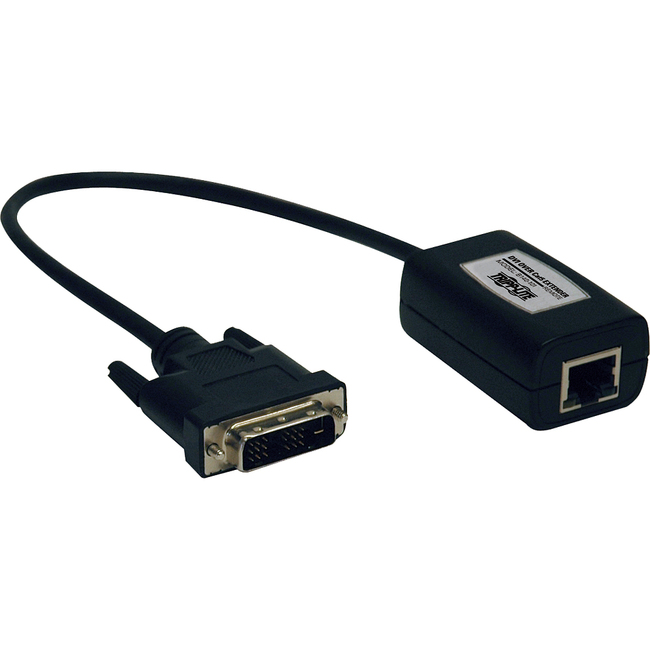

Tripp Lite DVI Over Cat5/Cat6 Passive Video Extender Remote Video Receiver 100'
Tripp Lite DVI Over Cat5/Cat6 Passive Video Extender Remote Video Receiver 100' - 1 Input Device - 1 Output Device - 100 ft Range - 1 x Network (RJ-45) - 1 x DVI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant
| $12.41 | Retail $34.00 |
- For use with B140-002 or B140-004 extender/splitter transmitter units
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- Extends a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100 ft.
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- Compatible with all operating systems
- Plug and play, no external power, software or drivers required
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
91819
Item:
B140-1P0
UPC Code:
037332156655
Our Part #
DP8653
Condition
New
$12.41EA
$34.00
$34.00
Availability
Only 7 Left In Stock
Product description
Tripp Lite DVI Over Cat5/Cat6 Passive Video Extender Remote Video Receiver 100' - 1 Input Device - 1 Output Device - 100 ft Range - 1 x Network (RJ-45) - 1 x DVI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant
1 Input Device - 1 Output Device - 100 ft Range - 1 x Network (RJ-45) - 1 x DVI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant
Specifications
UPC Alternates
037332156655
Brand Name
Tripp Lite
Certifications & Standards
TAA
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
RoHS
Environmentally Friendly
Yes
Graphics Modes
Full HD
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B140-1P0
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The B140-1P0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units and it transmits a DVI-D Single-Link signal up to 100 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-1P0 is compatible with all operating systems and is plug and play with no external power software or drivers required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Installation is simple. Connect a B140-002 or B140-004 transmitter (not included) to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect the B140-1P0's built-in DVI connector to a display. Finally the receiver unit is connected to an RJ45 port on the transmitter unit using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 50 ft. from the source or a 1024 x 768 @ 60Hz signal up to 100 ft..
Maximum Operating Distance
100 ft
Maximum Video Resolution
1920 x 1080
Media Type Supported
Twisted Pair
Number of Network (RJ-45) Ports
1
Package Contents
- B140-1P0 DVI Over Cat5 Passive Extender Remote Unit
- Owner's Manual
Product Name
DVI Over Cat5 Passive Extender Remote Unit
Product Type
Video Extender Receiver
Twisted Pair Cable Standard
Category 6
