Black Box 8PT Gb HRD SWT RJ45

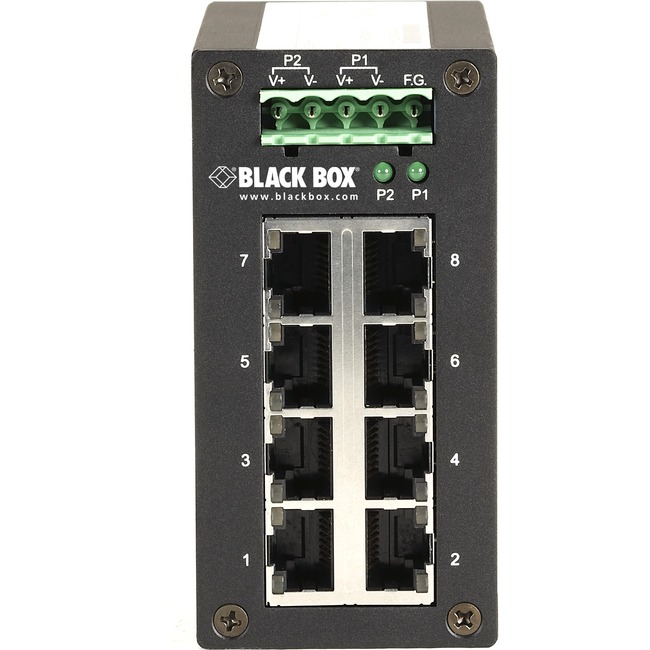

Black Box 8PT Gb HRD SWT RJ45 - Gigabit Ethernet (1000-Mbps) Hardened Temperature Switch - (8) 10/100/1000-Mbps Copper RJ45
| $263.23 | Retail $300.80 |
- Eight 10-/100-/1000-Mbps RJ-45 ports.
- Extended temperature range of 14 to +158F (-10 to +70C).
- 9-48VDC power input.
- Includes DIN rail mount kit.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
93489
Item:
LGH008A
UPC Code:
013269146341
Our Part #
UP7813
Condition
New
$263.23EA
$300.80
$300.80
Availability
Only 15 Left In Stock
Product description
Black Box 8PT Gb HRD SWT RJ45 - Gigabit Ethernet (1000-Mbps) Hardened Temperature Switch - (8) 10/100/1000-Mbps Copper RJ45
Gigabit Ethernet (1000-Mbps) Hardened Temperature Switch - (8) 10/100/1000-Mbps Copper RJ45
Specifications
UPC Alternates
013269146341 822088065548
Additional Information
Product works with:
Brand Name
Black Box
Certifications & Standards
- CE
- FCC
- 802.3
- 802.3u
- 802.3ab
Country of origin
Taiwan
Depth
3.1"
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Form factor
Rail-mountable
Height
3.5"
Input voltage
220 V AC
Input voltage
110 V AC
Layer Supported
2
Limited Warranty
5 Year
Manageable
No
Manufacturer
Black Box Corporation
Manufacturer Part Number
LGH008A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
The Hardened Gigabit Edge Switch brings eight Gigabit Ethernet ports to harsh industrial environments with temperatures ranging from 14 to 158° F (-10 to +70° C). Its rugged steel enclosure mounts on standard DIN rails.
Dual DC power inputs enable redundant power provisioning. Ethernet ports are autosensing 10/100/1000 Mbps with Auto MDI/MDI-X on all ports. This industrial switch does not include a power supply.
For a compatible non-hardened power supply order the Power Adapter 100 - 240-VAC to 12-VDC Flying Leads (PS012); for a hardened power supply order the External 100 - 240-VAC Power Adapter 12-VDC Stripped Ends Output U.S. Cord (PS003A).
Media Type Supported
Twisted Pair
Network Technology
10/100/1000Base-T
Number of Network (RJ-45) Ports
8
Port/Expansion Slot Details
8 x Gigabit Ethernet Network
Power source
Power Supply
Product color
Black
Product Name
HRD Switch - (8) 10/100/1000Mbps RJ45
Product Type
Ethernet Switch
Weight (Approximate)
9.60 oz
Width
1.8"
