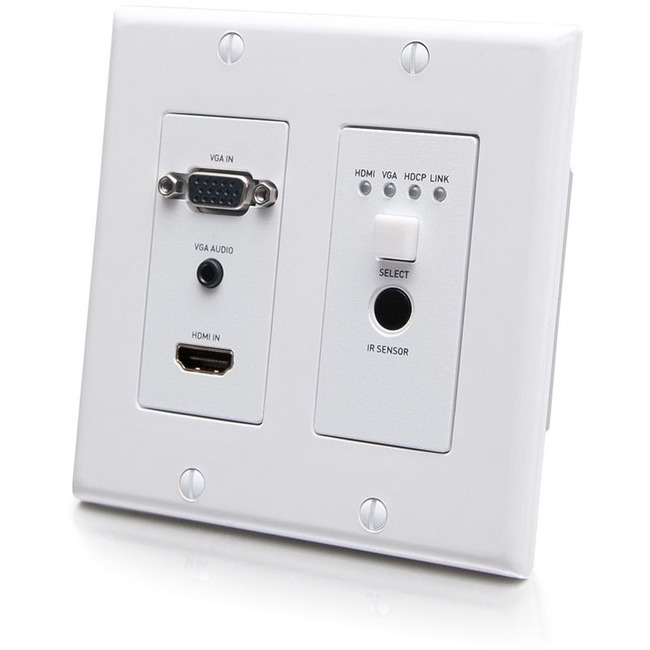

C2G 1 HDMI+VGA Wall Plate TX
C2G 1 HDMI+VGA Wall Plate TX - 2 Input Device - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x VGA In - 4K UHD - Twisted Pair - Category 6a - Wall Plate
| $153.70 | Retail $415.99 |
- Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
- Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
- Supports VGA resolutions up to 1920x1200 at 60Hz
- Supports auto switching
- HDCP 2.2 compliant, to create a secure connection between the source and display
- All audio inputs support EDID - fixed at PCM 2CH
- HDMI input supports EDID - copied from HDBaseT receiver
- Independent DIP switch provided for VGA EDID Management
- Supports IR and RS232 pass-through
- Supports PoC PD to receive power from an HDBaseT receiver with PSE module
Manufacturer:
C2G
Product ID:
100005
Item:
C2G30017
UPC Code:
757120300175
Our Part #
9FZ138
Condition
New
$153.70EA
$415.99
$415.99
Availability
Only 478 Left In Stock
Product description
C2G 1 HDMI+VGA Wall Plate TX - 2 Input Device - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x VGA In - 4K UHD - Twisted Pair - Category 6a - Wall Plate
2 Input Device - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x VGA In - 4K UHD - Twisted Pair - Category 6a - Wall Plate
Specifications
Network (RJ-45)
Yes
Number of Input Devices Supported
2
Transmitter Depth
4.16"
Transmitter Height
1.51"
Transmitter Weight (Approximate)
10.58 oz
Transmitter Width
3.50"
UPC Alternates
757120300175
Connectivity technology
Wired
Country of origin
China
Form factor
Wall Plate
Graphics Modes
4K UHD
Limited Warranty
5 Year
Manufacturer
C2G
Manufacturer Part Number
C2G30017
Manufacturer Website Address
http://www.cablestogo.com
Marketing Information
The HDMI HDBaseT + VGA 3.5mm RS232 and IR over Cat Extender Dual Gang Wall Plate Transmitter - 4K 60Hz allows 4K HDMI or VGA sources to be extended using a single Cat6a Ethernet cable. This is an ideal solution where video and audio needs to be extended to displays in conference rooms classrooms lecture halls and many other installation needs that are far beyond the length limitations of standard cabling.
This transmitter extends HDMI and VGA signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p VGA up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI or up to 130 feet using a Cat6a cable.
This HDMI HDBaseT transmitter is HDCP 2.2 compliant making sure that the connection from the source is secure. The transmitter supports PoC PD to receive power from an HDBaseT receiver with PSE module. It can also be powered by local 12V power supply and share power with the receiver via the 3-pin phoenix power out connector so no additional power adapter is required allowing for greater flexibility in installations. Advanced users can control IR and RS232 pass through.
Maximum Operating Distance
230 ft
Media Type Supported
Twisted Pair
Number of Network (RJ-45) Ports
1
Product color
Black
Product Name
1 HDMI+VGA Wall Plate TX
Product Type
Video Extender Transmitter
Twisted Pair Cable Standard
Category 6a
