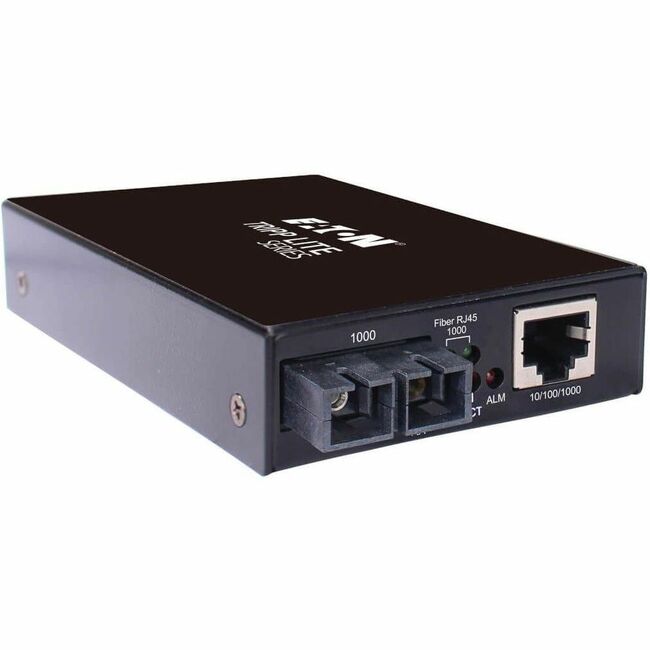

Tripp Lite N785-H01-SCSM Transceiver/Media Converter
Tripp Lite N785-H01-SCSM Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - Wall Mountable, DIN Rail Mountable, Desktop - TAA Compliant
| $198.48 | Retail $288.00 |
- Expand your network capabilities with this 2 transceiver/media converter
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over supported network cable
- The Wall Mountable provides convenient installation
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
100279
Item:
N785-H01-SCSM
UPC Code:
037332267054
Our Part #
9VB871
Condition
New
$198.48EA
$288.00
$288.00
Availability
Only 81 Left In Stock
Product description
Tripp Lite N785-H01-SCSM Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - Wall Mountable, DIN Rail Mountable, Desktop - TAA Compliant
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - Wall Mountable, DIN Rail Mountable, Desktop - TAA Compliant
Specifications
Fiber Mode Supported
Single-mode
Fiber Optic Wavelength
1310 nm
Maximum Distance Supported
6.21 Mile
SC Port Type
Duplex
UPC Alternates
037332267054
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
4.3"
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Form factor
DIN Rail Mountable
Form factor
Desktop
Form factor
Wall Mountable
Height
0.9"
Limited Warranty
2 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N785-H01-SCSM
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Features | Extends a Network Connection up to 10 km over SC Singlemode Fiber Optic Cable
This network media converter converts a copper Gigabit Ethernet signal to a singlemode fiber optic signal and extends it to a second network device up to 10 kilometers (6.2 miles) away. Because copper Cat5e/6 cables are limited to only 100 meters it is more effective to couple the N785-H01-SCSM with singlemode fiber cable to reach hubs switches and other network devices located farther away. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.
Monitor Your Installation with Link Fault Signaling and Loop Back Functions
Determine the health of your network connection via the Link Fault Signaling (LFS) and Loop Back functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The Local Loop Back (LLB) and Remote Loop Back (RLB) functions ensure copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.
LEDs Indicate Installation Performance and Diagnostic Functions
Easy-to-read LEDs on the side of the unit indicate essential status information including network speed and connection LFS diagnostics and unit power.
Protective Metal Housing Built to Withstand a Variety of Hazards
The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD) radio frequency interference (RFI) and power surges. Hardware is included for wall or DIN mounting.
Works in Tandem with Tripp Lite's N785-CH12 Chassis
House and power up to 12 Tripp Lite media converters including the N785-H01-SCSM using the N785-CH12 12-port chassis (sold separately) to create an organized installation.
TAA-Compliant for GSA Schedule Purchases
The N785-H01-SCSM is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
1000Base-X
Network Technology
10/100/1000Base-T
Number of Network (RJ-45) Ports
1
Package Contents
- N785-H01-SCSM Transceiver/Media Converter
- L-shaped Bracket
- Rubber Foot
- SC Connector Cap
- External Power Supply with NEMA 1-15P Plug (Input: 100-240VAC 50/60 Hz 0.5A; Output: 12VDC 1.5A)
- DIN Rail Kit
- Wall-mounting Hardware
- Quick Start Guide
Plug/Connector Type
NEMA 1-15P
Power consumption
1.80 W
Power source
AC Adapter
Product Name
N785-H01-SCSM Transceiver/Media Converter
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Weight (Approximate)
8.43 oz
Width
2.9"
