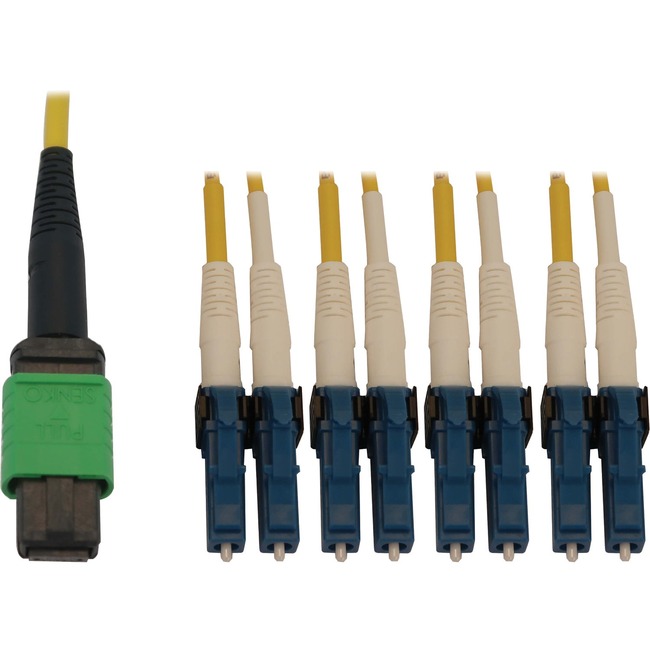

Tripp Lite N390X-02M-8L-AP Fiber Optic Duplex Network Cable
Tripp Lite N390X-02M-8L-AP Fiber Optic Duplex Network Cable - 6.56 ft Fiber Optic Network Cable for Switch, Patch Panel, Network Device - First End: 1 x MTP/MPO Female Network - Second End: 8 x LC/UPC Male Network - 400 Gbit/s - LSZH, OFNR - 9/125 µm - Yellow, Black, Green, Blue
| $135.14 | Retail $183.04 |
- Switchable LC connectors allow polarity conversion without tools or re-termination
- MTP/MPO APC connector minimizes back reflection with low insertion loss
- Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
- Yellow LSZH jacket allows fast, easy identification in a crowdedswitch or patch panel
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
100389
Item:
N390X-02M-8L-AP
UPC Code:
037332272386
Our Part #
01FW94
Condition
New
$135.14EA
$183.04
$183.04
Availability
Only 92 Left In Stock
You may be also interested
Product description
Tripp Lite N390X-02M-8L-AP Fiber Optic Duplex Network Cable - 6.56 ft Fiber Optic Network Cable for Switch, Patch Panel, Network Device - First End: 1 x MTP/MPO Female Network - Second End: 8 x LC/UPC Male Network - 400 Gbit/s - LSZH, OFNR - 9/125 µm - Yellow, Black, Green, Blue
6.56 ft Fiber Optic Network Cable for Switch, Patch Panel, Network Device - First End: 1 x MTP/MPO Female Network - Second End: 8 x LC/UPC Male Network - 400 Gbit/s - LSZH, OFNR - 9/125 µm - Yellow, Black, Green, Blue
Specifications
Boot Type
Slim
Connector Color
Black
Connector Color
Blue
Connector Color
Green
Connector on First End Details
1 x MTP/MPO Network - Female
Connector on Second End Details
8 x LC/UPC Network - Male
Connector Type on First End
MTP/MPO Network - Female
Connector Type on Second End
LC/UPC Network - Male
UPC Alternates
037332272386
Brand Name
Tripp Lite
Cable length
6.56 ft
Cable type
Fiber Optic
Color
Yellow
Color
Black Connector
Color
Black
Color
Blue
Color
Blue Connector
Color
Green
Color
Green Connector
Color
Yellow Jacket
Connector on First End
MTP/MPO Female Network
Connector on First End
1 x MTP/MPO Female Network
Connector on Second End
8 x LC/UPC Male Network
Connector on Second End
LC/UPC Male Network
Core/Cladding Diameter
9/125 µm
Country of origin
China
Data transfer rate
400 Gbit/s
Device Supported
Network Device
Device Supported
Patch Panel
Device Supported
Switch
Environmental Certification
RoHS
Environmental Certification
REACH
Environmentally Friendly
Yes
Features
Angled Physical Contact (APC)
Features
Push-Pull Tab
Features
Slim Boot
Features
Bendable
Features
Stranded
Fiber Optic Mode
Single-mode
Jacket Color
Yellow
Jacket Type
LSZH
Jacket Type
OFNR
Limited Warranty
Lifetime
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N390X-02M-8L-AP
Manufacturer Part Number
N390X02M8LAP
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
40/100/400 GbE Cable Supports Higher Bandwidths for High-Density Data Networking
The N390X-02M-8L-AP is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This singlemode 9/125 OS2 cable is an ideal choice for 100 Gb Ethernet applications up to 100 meters (328 feet) at 1550 nm. The breakout cable also eliminates the need for long fan-out cables or long individual duplex cable runs.
Switchable Connectors Allow Easy Polarity Conversions
The switchable LC/UPC duplex ends let you easily switch the fiber polarity without tools or the need to re-terminate the connectors.
100% Tested for Low Insertion Loss and Back Reflection
The 12-fiber MTP/MPO APC connector with a green housing helps minimize back reflection with low insertion loss. The connector's slim boot is designed for easy cable management.
Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion making it suitable for poorly ventilated areas.
Product Model
N390X-02M-8L-AP
Product Name
N390X-02M-8L-AP Fiber Optic Duplex Network Cable
Product Type
Network Cable
