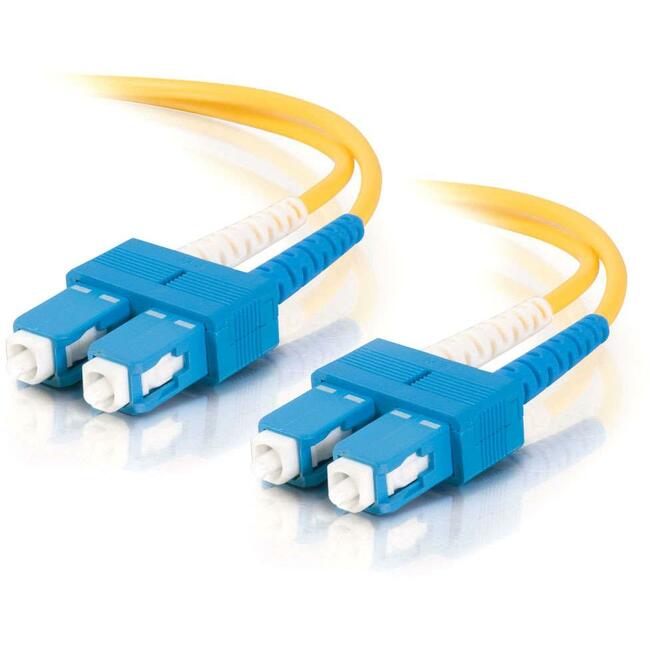

C2G-2m SC-SC 9/125 OS1 Duplex Singlemode Fiber Optic Cable (Plenum-Rated) - Yellow
C2G-2m SC-SC 9/125 OS1 Duplex Singlemode Fiber Optic Cable (Plenum-Rated) - Yellow - 2m SC-SC 9/125 Duplex Single Mode OS2 Fiber Cable - Plenum CMP-Rated - Yellow - 6ft
| $17.18 | Retail $17.99 |
- Experience a simpler way to connect devices with the entire business network
- Features Fiber Optic cable type
Manufacturer:
C2G
Product ID:
100890
Item:
34539
UPC Code:
000319620074
Our Part #
26121607
Condition
New
$17.18EA
$17.99
$17.99
Availability
Only 112 Left In Stock
Product description
C2G-2m SC-SC 9/125 OS1 Duplex Singlemode Fiber Optic Cable (Plenum-Rated) - Yellow - 2m SC-SC 9/125 Duplex Single Mode OS2 Fiber Cable - Plenum CMP-Rated - Yellow - 6ft
2m SC-SC 9/125 Duplex Single Mode OS2 Fiber Cable - Plenum CMP-Rated - Yellow - 6ft
Specifications
Connector on First End Details
2 x SC Network - Male
Connector Type on First End
SC Network - Male
UPC Alternates
000319620074 757120345398
Additional Information
- Buffer OD: 900 µm
- Jacket OD: 3.0 mm
- Attenuation @1310 nm: 1.0 dB/km
- Attenuation @1550 nm: 0.75 dB/km
- Maximum tensile load: 100 N/cm
- Loaded min. bend radius: 5 cm
- Unloaded min. bend radius: 3 cm
- Crush resistance: 750 N/cm
- Impact resistance: 1000 cycles
- Flex resistance: 5000 cycles
Cable Characteristic
Patch Cable
Cable length
6.56 ft
Cable type
Fiber Optic
Certifications & Standards
CMP Rated
Color
Yellow
Connector on First End
SC Male Network
Connector on First End
2 x SC Male Network
Core/Cladding Diameter
9/125 µm
Device Supported
Network Device
Environmental Certification
RoHS
Environmentally Friendly
Yes
Fiber Optic Mode
Single-mode
Jacket Type
Plenum
Limited Warranty
Lifetime
Manufacturer
C2G
Manufacturer Part Number
34539
Manufacturer Website Address
http://www.cablestogo.com
Marketing Information
C2G (formerly Cables To Go) a division of Lastar Inc. is an industry leader in high performance cabling and connectivity solutions. Founded in 1984 the company provides end-to-end connectivity solutions serving a variety of markets - including hospitality education healthcare corporate home theater and digital signage. C2G also delivers customized connectivity products and solutions renowned for superior quality value and innovation using premium components and the latest technologies to maximize cable performance and ensure compliance with industry specifications for each cable and its designated application.
Product color
Yellow
Product Name
Fiber Optic Duplex Patch Cable - Plenum-Rated
Product Type
Network Cable
Weight (Approximate)
0.10 lb
