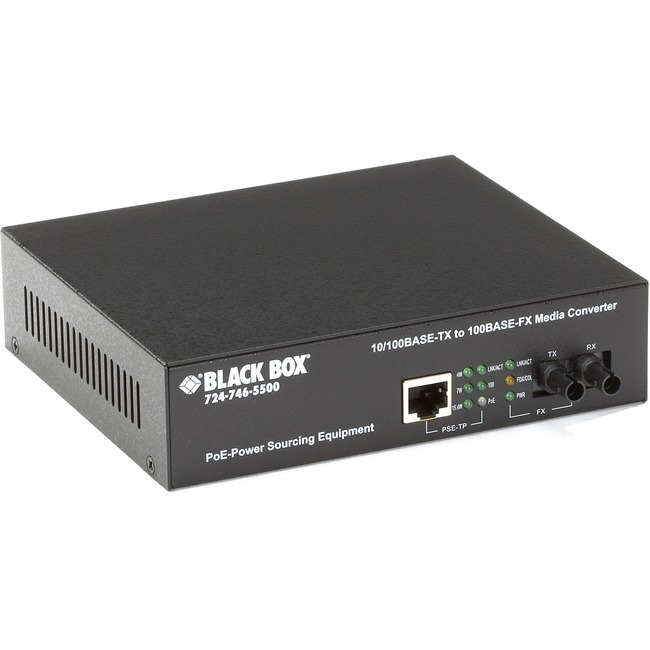

Black Box PoE PSE Media Converter
Black Box PoE PSE Media Converter - 1 x RJ-45 PoE, 1 x ST - 10/100Base-TX, 100Base-FX - External
| $212.54 | Retail $229.99 |
- A low-cost, economical solution for powering PoE devices over the same CATx link used for data communications.
- Powered device (PD) signature sending detects when a PoE device is connected.
- Supports 802.3x flow control on full-duplex ports and backpressure on 10BASE-T/100BASE-TX half-duplex ports.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
101029
Item:
LPM601A
UPC Code:
093007173808
Our Part #
8RK622
Condition
New
$212.54EA
$229.99
$229.99
Availability
Only 12 Left In Stock
You may be also interested
Product description
Black Box PoE PSE Media Converter - 1 x RJ-45 PoE, 1 x ST - 10/100Base-TX, 100Base-FX - External
1 x RJ-45 PoE, 1 x ST - 10/100Base-TX, 100Base-FX - External
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Wavelength
1300 nm
Maximum Distance Supported
1.24 Mile
Number of PoE (RJ-45) Ports
1
UPC Alternates
093007173808 641676610393
Additional Information
For fiber connections up to 20 kilometers (12 mi.) order the single-mode model. For distances up to 100 km (62.1 mi.) call our FREE Tech Support.
This product is covered by one of more of the following: United States Patent Nos. 7457250; 8902760; and/or 9019838.
Brand Name
Black Box
Country of origin
Taiwan
Depth
5.3"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Form factor
External
Height
1.6"
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
LPM601A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Constrained by the distance limits of PoE over copper? Incorporate fiber into your network! This PoE PSE Media Converter not only enables you to connect copper cables to long-distance fiber data links it also safely powers compatible devices plugged in on the copper side. Fully compliant with the 802.3af Power over Ethernet (PoE) standard the converter functions as power source equipment (PSE) to provide -48 VDC power via copper wiring to access points cameras and similar devices in areas without nearby power outlets. For equipment protection it offers overcurrent and undercurrent detection as well as fault protection input and power monitoring. It also has powered device signature sensing to detect when a 802.3af compliant device is connected downstream. Plus link-fault passthrough and far-end fault detection features keep you from sending valuable data across invalid links.
This product is covered by one of more of the following: United States Patent Nos. 7457250; 8902760; and/or 9019838.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10/100Base-TX
Network Technology
100Base-FX
Product Condition
New
Product Name
PoE PSE Media Converter
Product Series
LPM600
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Width
6.3"
