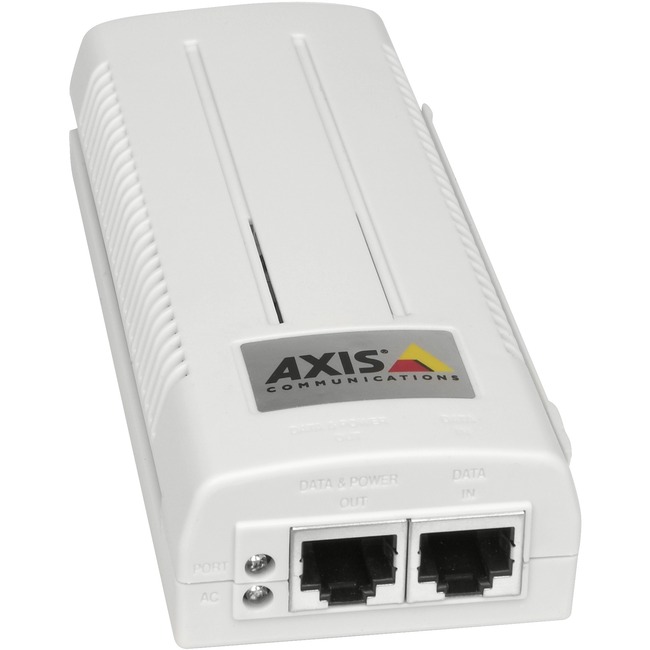

AXIS T8120 Midspan 15 W 1-Port
AXIS T8120 Midspan 15 W 1-Port - 110 V AC, 220 V AC Input - 48 V DC Output - 1 Output Port(s) - 15.40 W - Wall Mountable
| $65.72 |
By:
AXIS
Manufacturer:
Axis Communications
Product ID:
101611
Item:
5026-204
UPC Code:
000886930064
Our Part #
8VV005
Condition
New
$65.72EA
Availability
Only 45 Left In Stock
Product description
AXIS T8120 Midspan 15 W 1-Port - 110 V AC, 220 V AC Input - 48 V DC Output - 1 Output Port(s) - 15.40 W - Wall Mountable
110 V AC, 220 V AC Input - 48 V DC Output - 1 Output Port(s) - 15.40 W - Wall Mountable
Specifications
Maximum Output Voltage
48 V DC
Minimum Input Current
500 mA
Output Ports
1
UPC Alternates
000886930064 115971224550 546873564312 818210538646
UPC Alternates
000886930064 546873564312
Brand Name
AXIS
Certifications & Standards
- IEEE 802.3
- IEEE 802.3af
- FCC Part 15 Class B
- EN55022 (CISPR 22) Class B
Safety:
- cUL
- UL
- TUV
- CE
Compatibility
- Video Encoders
Axis Network Cameras:
- PTZ
- PTZ Dome
Depth
5.7"
Height
1.2"
Input voltage
110 V AC
Input voltage
220 V AC
Limited Warranty
3 Year
Manufacturer
Axis Communications
Manufacturer Part Number
5026-204
Manufacturer Website Address
http://www.axis.com
Marketing Information
Power over Ethernet (PoE) offers an easy fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling. Simply connect the Axis PoE midspans and PoE splitters to the network and the network video products are supplied with power.
Axis PoE midspans provide power (max. 15.4 W per port) over Ethernet cables to network video products with built-in PoE support. For a network video product without built-in PoE support a PoE splitter must be used to separate power and data coming over the network cable.
Maximum Frequency
63 Hz
Maximum Output Power
15.40 W
Minimum Frequency
47 Hz
Mount Type
Wall Mountable
Product Model
T8120
Product Name
T8120 Midspan 15 W 1-Port
Product Type
PoE Injector
Weight (Approximate)
15.87 oz
Width
2.4"
