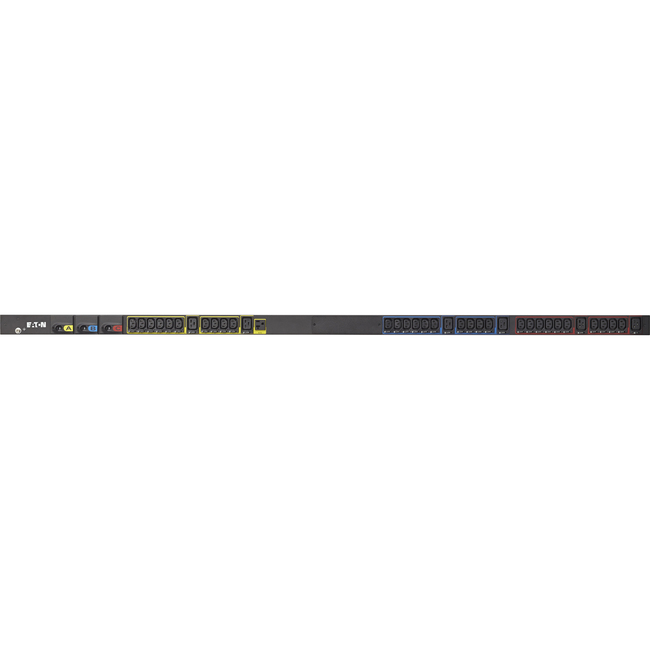

Eaton ePDU G3 Basic 38U-A; 8.64 KW; IN: L21-30P 24A 3P OUT: 30XC13:6XC19:1X5-20R
Eaton ePDU G3 Basic 38U-A; 8.64 KW; IN: L21-30P 24A 3P OUT: 30XC13:6XC19:1X5-20R - NEMA L21-20P - 30 x IEC 60320 C13, 6 x IEC 60320 C19, 1 x NEMA 5-20R - 120 V AC, 230 V AC - 8640 W - 38U - Rack-mountable
| $733.32 | Retail $800.00 |
- ePDU G3 models feature IEC outlet grip, color-coded outlet sections, low-profile form factor and a high operating temperature for best-in-class power management
- Available in horizontal and vertical solutions for a wide range of key applications
- Clearly labeled circuits simplify load balancing
- Cost effective solutions to meet your Basic needs
- Ranges from 15A to 30A up to 208V to offer a variety of plug and outlet configurations
- UL 60950 compliant to meet industry requirements
By:
Eaton
Manufacturer:
Eaton Corporation
Product ID:
102536
Item:
EBA310-10
UPC Code:
743172047946
Our Part #
2H7127
Condition
New
$733.32EA
$800.00
$800.00
Availability
Only 194 Left In Stock
Product description
Eaton ePDU G3 Basic 38U-A; 8.64 KW; IN: L21-30P 24A 3P OUT: 30XC13:6XC19:1X5-20R - NEMA L21-20P - 30 x IEC 60320 C13, 6 x IEC 60320 C19, 1 x NEMA 5-20R - 120 V AC, 230 V AC - 8640 W - 38U - Rack-mountable
NEMA L21-20P - 30 x IEC 60320 C13, 6 x IEC 60320 C19, 1 x NEMA 5-20R - 120 V AC, 230 V AC - 8640 W - 38U - Rack-mountable
Specifications
Power Rating (Watt)
8640 W
Receptacle Detail
1 x NEMA 5-20R
Receptacle Detail
30 x IEC 60320 C13
Receptacle Detail
6 x IEC 60320 C19
UPC Alternates
743172047946 743172050359
Brand Name
Eaton
Certifications & Standards
UL Listed ITE 60950-1
Circuit Breaker
Yes
Cord Length
10 ft
Height
66.5"
Input current
24 A
Input voltage
230 V AC
Input voltage
120 V AC
Input Voltage Range
120 V AC - 208 V AC
Limited Warranty
3 Year
Manufacturer
Eaton Corporation
Manufacturer Part Number
EBA310-10
Manufacturer Website Address
http://www.eaton.com
Marketing Information
Eaton G3 Basic ePDUs provide reliable power distribution for IT and data center applciations. Desgined to operate at high temperatures for high reliability and made from light-weight aluminum for ease of installation.
- IEC outlet grip plug retention secures plugs in place using standard cables
- High operating temperature (140F / 60C) for containment or hot network closet environments
- Color coded outlet sections simplify load balancing
- Low profile form factor reduces interference into the rail space
- Ease of installation using pre-installed buttons for tool-less mounting
- Designed for mission critical IT or data center applications
Mount Type
Rack-mountable
Plug/Connector Type
NEMA L21-20P
Product Line
ePDU
Product Name
ePDU 37-Outlets PDU
Product Type
PDU
Rack Height
38U
Receptacle Type
IEC 60320 C19
Receptacle Type
IEC 60320 C13
Receptacle Type
NEMA 5-20R
Weight (Approximate)
18 lb
Width
2.1"
