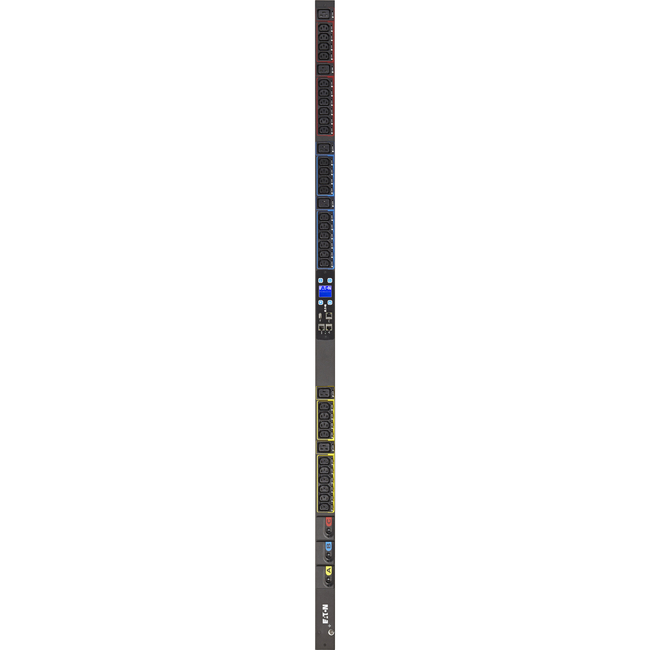

Eaton ePDU G3 Metered Input 38U-A; 8.64 KW; IN: L15-30P 24A 3P OUT: 30XC13:6XC19
Eaton ePDU G3 Metered Input 38U-A; 8.64 KW; IN: L15-30P 24A 3P OUT: 30XC13:6XC19 - NEMA L15-30P - 24 x NEMA 5-20R - 230 V AC - 8640 W - Network (RJ-45) - 38U - Rack-mountable
| $1,406.36 | Retail $1,657.00 |
- New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
- High density units support up to 25 1U/2U servers or three blade server chassis
- Easy read digital ammeter reduces local monitoring time
- Clearly labeled circuits simplify load balancing
- Reading available via Ethernet connection over a network
- UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements
By:
Eaton
Manufacturer:
Eaton Corporation
Product ID:
102540
Item:
EMI303-10
UPC Code:
786685885049
Our Part #
2H7156
Condition
New
$1,406.36EA
$1,657.00
$1,657.00
Availability
Only 2 Left In Stock
You may be also interested
Product description
Eaton ePDU G3 Metered Input 38U-A; 8.64 KW; IN: L15-30P 24A 3P OUT: 30XC13:6XC19 - NEMA L15-30P - 24 x NEMA 5-20R - 230 V AC - 8640 W - Network (RJ-45) - 38U - Rack-mountable
NEMA L15-30P - 24 x NEMA 5-20R - 230 V AC - 8640 W - Network (RJ-45) - 38U - Rack-mountable
Specifications
Power Rating (Watt)
8640 W
Receptacle Detail
24 x NEMA 5-20R
UPC Alternates
786685885049
Brand Name
Eaton
Certifications & Standards
- UL ITE 60950-1
- FCC
Certifications & Standards
- UL ITE 60950-1
- FCC
Circuit Breaker
Yes
Cord Length
10 ft
Country of origin
United States
Height
66.5"
Input current
24 A
Input voltage
230 V AC
Limited Warranty
3 Year
Manufacturer
Eaton Corporation
Manufacturer Part Number
EMI303-10
Manufacturer Website Address
http://www.eaton.com
Marketing Information
Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
- IEC outlet grip plug retention secures plugs in place using standard cables
- Advanced LCD pixel display for local display of current voltage power energy and menu setup of parameters such as IP address or display rotation
- High operating temperature (140F / 60C) for containment or hot network closet environments
- Hot-swap meter for servicability of without removing power to the rack
- +/- 1% billing grade accuracy for high accuracy reporting of energy usage
- Daisy chain of IP addresses allows four devices to share one network connection
Marketing Information
Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
- IEC outlet grip plug retention secures plugs in place using standard cables
- Advanced LCD pixel display for local display of current voltage power energy and menu setup of parameters such as IP address or display rotation
- High operating temperature (140F / 60C) for containment or hot network closet environments
- Hot-swap meter for servicability of without removing power to the rack
- +/- 1% billing grade accuracy for high accuracy reporting of energy usage
- Daisy chain of IP addresses allows four devices to share one network connection
Mount Type
Rack-mountable
Plug/Connector Type
NEMA L15-30P
Product Line
ePDU
Product Name
ePDU 36-Outlets PDU
Product Type
PDU
Rack Height
38U
Receptacle Type
NEMA 5-20R
Weight (Approximate)
16.50 lb
Width
2.1"
