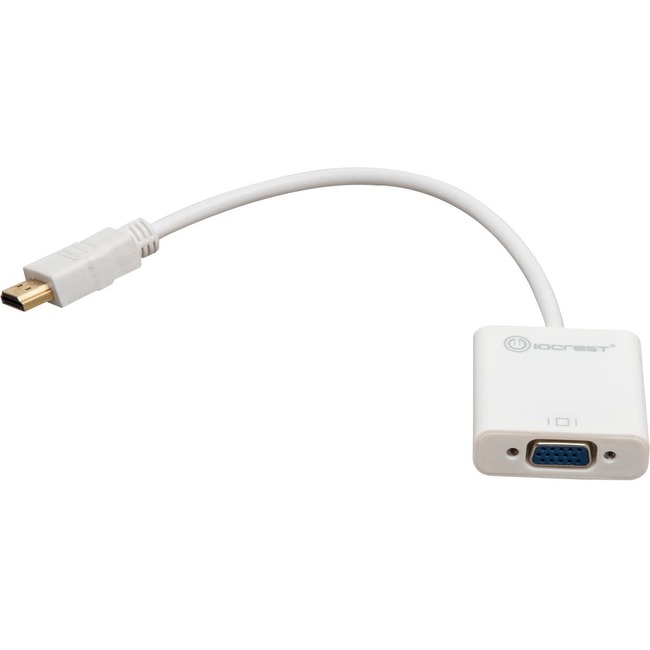

IO Crest Active HDMI to VGA Adapter with Audio Support via 3.5mm jack
IO Crest Active HDMI to VGA Adapter with Audio Support via 3.5mm jack - 6.50" HDMI/Mini-phone/VGA A/V Cable for Audio/Video Device - First End: 1 x HDMI Male Digital Audio/Video - Second End: 1 x HD-15 Female VGA, Second End: 1 x 3.5mm Female Audio - White - 1
| $10.73 | Retail $21.99 |
- Supports HDMI Standard Norm
- Complaint with HDMI 1.4 specification
- Analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate.
- Supports VESA and CEA timing standards up to WUXGA 1920x1200@60MHz and 1920x1080@60MHz.
- On-chip encoder supports 2 channel IIS/S/PDIF audio output
- Integrated EDID buffer
- VGA/HDMI connection detection supported
By:
IO Crest
Manufacturer:
SYBA Multimedia, Inc
Product ID:
103052
Item:
SY-ADA31044
UPC Code:
810154019007
Our Part #
3FH804
Condition
New
$10.73EA
$21.99
$21.99
Availability
Only 16 Left In Stock
Product description
IO Crest Active HDMI to VGA Adapter with Audio Support via 3.5mm jack - 6.50" HDMI/Mini-phone/VGA A/V Cable for Audio/Video Device - First End: 1 x HDMI Male Digital Audio/Video - Second End: 1 x HD-15 Female VGA, Second End: 1 x 3.5mm Female Audio - White - 1
6.50" HDMI/Mini-phone/VGA A/V Cable for Audio/Video Device - First End: 1 x HDMI Male Digital Audio/Video - Second End: 1 x HD-15 Female VGA, Second End: 1 x 3.5mm Female Audio - White - 1
Specifications
UPC Alternates
810154019007 818243043452
Brand Name
IO Crest
Cable length
6.50"
Cable type
HDMI/Mini-phone/VGA
Color
White
Conductor
Copper
Connector on First End
HDMI Male Digital Audio/Video
Connector on First End
1 x HDMI Male HDMI 1.4b Digital Audio/Video
Connector on Second End
1 x 15-pin HD-15 Female VGA
Connector on Second End
3.5mm Female Audio
Connector on Second End
HD-15 Female VGA
Connector on Second End
1 x 3.5mm Female Audio
Country of origin
China
Device Supported
Audio/Video Device
Features
Extended Display Identification Data (EDID)
Features
Active
Limited Warranty
1 Year
Manufacturer
SYBA Multimedia Inc
Manufacturer Part Number
SY-ADA31044
Manufacturer Website Address
http://www.syba.com
Marketing Information
Convert HDMI signals into VGA outputs at a maximum conversion rate of 200 MHz with IIS or SPDIF audio output. The HDMI Receiver integrated is compliant with HDMI 1.4b. The DACs are based on current source architecture. And the VGA output meet VESA VSIS v1r2 clock jitter target.
Package Contents
- Active HDMI to VGA Adapter with Audio Support via 3.5mm jack
- 1 x Male to Male Audio Jack
Packaged Quantity
1
Product Name
Active HDMI to VGA Adapter with Audio Support via 3.5mm jack
Product Type
A/V Cable
Weight (Approximate)
0.11 lb
