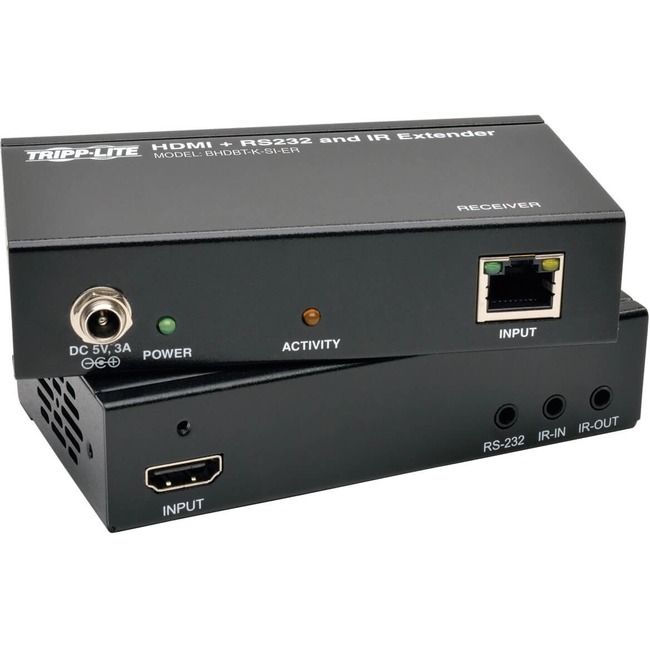

Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Kit with Serial / IR Control 4K x 2K 150m 500ft
Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Kit with Serial / IR Control 4K x 2K 150m 500ft - 1 Input Device - 1 Output Device - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Category 6a - Pole-mountable, Wall Mountable, Rack-mountable"
| $328.33 | Retail $566.40 |
- Extends a 1080p @ 60 Hz signal up to 500 feet (150 m)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Controls RS-232 serial devices at baud rates up to 115 Kbps
- Allows you to control a Blu-ray™ player from a remote monitor
- Plug and play-no software or drivers to install
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
103484
Item:
BHDBT-K-SI-ER
UPC Code:
037332187086
Our Part #
ZZ0203
Condition
New
$328.33EA
$566.40
$566.40
Availability
Only 242 Left In Stock
Product description
Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Kit with Serial / IR Control 4K x 2K 150m 500ft - 1 Input Device - 1 Output Device - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Category 6a - Pole-mountable, Wall Mountable, Rack-mountable"
1 Input Device - 1 Output Device - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Full HD - 1920 x 1080 - Category 6a - Pole-mountable, Wall Mountable, Rack-mountable"
Specifications
Transmitter Weight (Approximate)
1.05 lb
UPC Alternates
037332187086
Brand Name
Tripp Lite
Certifications & Standards
- TAA
- CE
- FCC
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
RoHS
Environmental Certification
REACH
Environmentally Friendly
Yes
Form factor
Wall Mountable
Form factor
Rack-mountable
Form factor
Pole-mountable
Graphics Modes
Full HD
Input voltage
120 V AC
Input voltage
230 V AC
Input voltage
5 V DC
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
BHDBT-K-SI-ER
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Tripp Lite's BHDBT-K-SI-ER implements HDBaseT technology to transmit HDMI audio and video RS-232 Serial and IR Remote Control signals up to 500-ft. (150M) over a single Cat5e/6/6a cable displaying HD video resolutions up to 1920 x 1080 (1080p) @ 60Hz. You can further expand the range and number of monitors in your installation by adding BHDBT-TR-SI-ER transceivers in between the transmitter and receiver units. The BHDBT-TR-SI-ER features a HDMI port for the connection of a monitor and can be located 500-ft. (150M) from the transmitter unit. The receiver unit can then be located the same distance from the transceiver allowing you to double the total extension distance. Up to 5 transceiver units can be inserted in between the transmitter and receiver allowing for an overall extension distance of up to 3000-ft. (900M) with a monitor located at each point in the chain.
In addition to transmitting HDMI audio and video the BHDBT-K-SI-ER features 2-way IR Remote Control allowing you to control your Blu-Ray player using its remote control when at the remote display or to control your remote display using its remote control when at the Blu-Ray player. (IR Frequency @ 39Khz) RS-232 Serial is also transmitted with support for baud rates up to 115kbps allowing you to control serial devices such as touchscreens or scanners.
The transmitter and receiver feature locking HDMI ports for use with Tripp Lite's series of High Speed HDMI cables with Locking connectors (e.g. P569-006-LOCK). These cables lock into the ports on the transmitter and receiver units preventing them from accidentally being loosened or disconnected and ensuring that your signal remains intact The BHDBT-K-SI-ER supports 7.1 channel surround sound DTS-HD and Dolby TrueHD audio as well as 3D video EDID and HDCP. Mounting hardware is included that allows each unit to be wall mounted rack mounted or pole mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
In addition to transmitting HDMI audio and video the BHDBT-K-SI-ER features 2-way IR Remote Control allowing you to control your Blu-Ray player using its remote control when at the remote display or to control your remote display using its remote control when at the Blu-Ray player. (IR Frequency @ 39Khz) RS-232 Serial is also transmitted with support for baud rates up to 115kbps allowing you to control serial devices such as touchscreens or scanners.
The transmitter and receiver feature locking HDMI ports for use with Tripp Lite's series of High Speed HDMI cables with Locking connectors (e.g. P569-006-LOCK). These cables lock into the ports on the transmitter and receiver units preventing them from accidentally being loosened or disconnected and ensuring that your signal remains intact The BHDBT-K-SI-ER supports 7.1 channel surround sound DTS-HD and Dolby TrueHD audio as well as 3D video EDID and HDCP. Mounting hardware is included that allows each unit to be wall mounted rack mounted or pole mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Maximum Operating Distance
500 ft
Maximum Video Resolution
1920 x 1080
Media Type Supported
Twisted Pair
Number of HDMI Inputs
1
Number of Network (RJ-45) Ports
2
Package Contents
- Transmitter
- Receiver
- IR-IN and IR-OUT Cables
- 3.5 mm Male to DB9 Female Adapter Cable
- 3.5 mm Male to DB9 Male Adapter Cable
- 2 x External Power Supplies (Input: 100-240V 50/60 Hz 0.5A Output: 5V 3A)
- Mounting Hardware
- Owner's Manual
Product color
Black
Product Name
BHDBT-K-SI-ER Video Console/Extender
Product Type
Video Extender Transmitter/Receiver
Twisted Pair Cable Standard
Category 6a
