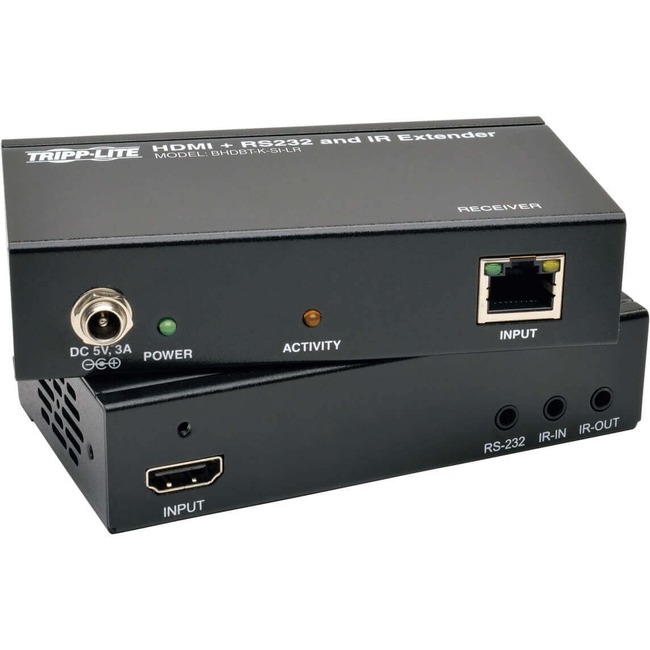

Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Kit with Serial / IR Control 4K x 2K @ 24/30Hz 100m 328ft
Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Kit with Serial / IR Control 4K x 2K @ 24/30Hz 100m 328ft - 1 Input Device - 1 Output Device - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 3840 x 2160 - Category 6a - Pole-mountable, Wall Mountable, Rack-mountable"
| $331.64 | Retail $632.00 |
- Extends a 1080p @ 60 Hz signal up to 328 feet (100 m)
- Extends a 3840 x 2160 (4K x 2K) signal up to 328 feet (100 m)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Controls RS-232 serial devices at baud rates up to 115 Kbps
- Allows you to control a Blu-ray™ player from a remote monitor
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
103485
Item:
BHDBT-K-SI-LR
UPC Code:
037332187093
Our Part #
ZZ0204
Condition
New
$331.64EA
$632.00
$632.00
Availability
Currently out of stock
Product description
Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a Extender Kit with Serial / IR Control 4K x 2K @ 24/30Hz 100m 328ft - 1 Input Device - 1 Output Device - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 3840 x 2160 - Category 6a - Pole-mountable, Wall Mountable, Rack-mountable"
1 Input Device - 1 Output Device - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 3840 x 2160 - Category 6a - Pole-mountable, Wall Mountable, Rack-mountable"
Specifications
Transmitter Weight (Approximate)
1.05 lb
UPC Alternates
037332187093 803929452376
Brand Name
Tripp Lite
Certifications & Standards
- TAA
- CE
- FCC
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
RoHS
Environmental Certification
REACH
Environmentally Friendly
Yes
Form factor
Rack-mountable
Form factor
Pole-mountable
Form factor
Wall Mountable
Graphics Modes
4K
Input voltage
230 V AC
Input voltage
5 V DC
Input voltage
120 V AC
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
BHDBT-K-SI-LR
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The BHDBT-K-SI-LR HDBaseT Extender Kit allows you to transmit HDMI audio and video RS-232 serial and IR Remote Control signals up to 328 feet(100 m) over a single Cat5e/6/6a cable. This includes 1920 x 1080(1080p) signals @ 60 Hz and even Ultra High Definition(UHD) 3840 x 2160(4K x 2K) @ 24/30Hz video signals. Add up to five Tripp Lite BHDBT-TR-SI-LR transceivers(sold separately) between the transmitter and receiver units to further expand the range up to 2000 feet(600 m) with a monitor connected via HDMI port to each transceiver.You can also control RS-232 serial devices such as touchscreen displays or scanners at baud rates up to 115 Kbps. The BHDBT-K-SI-LR's 2-way IR Remote Control feature(@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite's High-Speed HDMI cables with locking connectors such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or undone ensuring an intact signal. The BHDBT-K-SI-LR supports 7.1-channel surround sound DTS-HD and Dolby TrueHD audio as well as 3D video EDID and HDCP. Included mounting hardware lets you attach each unit to a wall rack or pole. There's no software to download or install and you can have the BHDBT-K-SI-LR Extender Kit set up and ready to go quickly. Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases.
Maximum Operating Distance
328 ft
Maximum Video Resolution
3840 x 2160
Media Type Supported
Twisted Pair
Number of HDMI Inputs
1
Number of Network (RJ-45) Ports
2
Package Contents
- Transmitter
- Receiver
- IR-IN and IR-OUT Cables
- 3.5 mm Male to DB9 Female Adapter Cable
- 3.5 mm Male to DB9 Male Adapter Cable
- 2 x External Power Supplies (Input: 100-240V 50/60 Hz 0.5A Output: 5V 3A)
- Mounting Hardware
- Owner's Manual
Product color
Black
Product Name
BHDBT-K-SI-LR Video Console/Extender
Product Type
Video Extender Transmitter/Receiver
Twisted Pair Cable Standard
Category 6a
