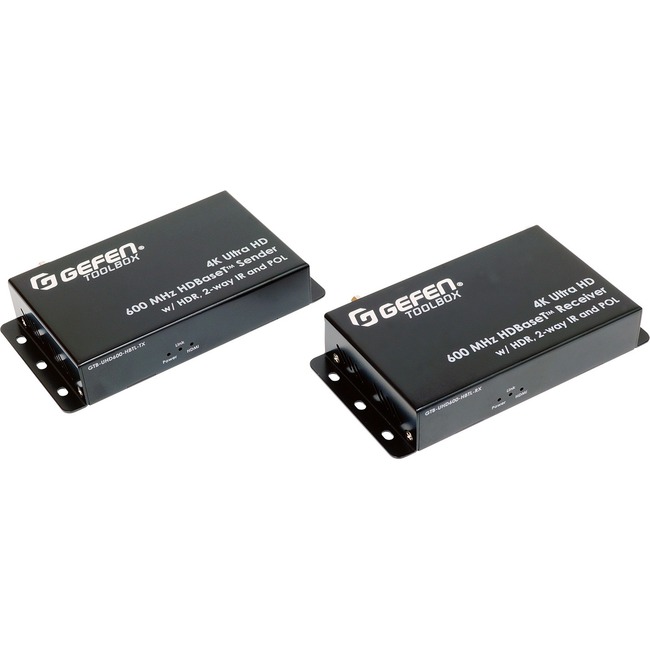

Gefen 4K Ultra HD 600 MHz HDBaseT Extender w/ HDR, 2-Way IR, And POL

Gefen 4K Ultra HD 600 MHz HDBaseT Extender w/ HDR, 2-Way IR, And POL - 1 Input Device - 1 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable
$449.81Retail $584.85
  • Supports 18.2 Gbps bandwidth and 600 MHz TMDS clock
  • Extends HDMI, RS-232, & Bi-Directional IR over a single CAT-5e/CAT-6A:4K Ultra HD (3840 x 2160 to 60 Hz, 4:4:4), up to 132 feet/40 meters (8-bit color), 4K Cinema (DCI) (4096 x 2160 to 60 Hz 4:4:4), up to 132 feet/40 meters (8-bit color), 1080p Full HD (60 Hz) and WUXGA (1920 x 1200 to 60 Hz), up to 200 feet/60 meters (up to 12-bit Deep Color)
  • Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920x1200), with Gefen CAB-DVI2HDMI-LCK DVI-to-HDMI cables (not included)
  • RS-232 2-way link between Sender and Receiver
  • Gefen's Bi-Directional POL provides power to the Sender or the Receiver unit over the link cable - only one side will need external power
  • Uses Gefen's implementation of HDBaseT™ technology with proprietary algorithms and enhanced features
  • Advanced EDID Management
  • Firmware updatable via external Gefen Syner-G™ port<
By:
Gefen
Manufacturer:
Gefen, Inc
Product ID:
105552
Item:
GTB-UHD600-HBTL
UPC Code:
696551547776
Our Part #
45111815
Condition
New
$449.81EA
$584.85
Availability Only 10 Left In Stock
Great Deals Everyday

You may be also interested

Product description

Gefen 4K Ultra HD 600 MHz HDBaseT Extender w/ HDR, 2-Way IR, And POL - 1 Input Device - 1 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable
1 Input Device - 1 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Surface-mountable

Specifications

Network (RJ-45)
Yes
Transmitter Depth
2.90"
Transmitter Height
1"
Transmitter Weight (Approximate)
9.60 oz
Transmitter Width
4.70"
UPC Alternates
696551547776 818242905607 888814999938
Brand Name
Gefen
Connectivity technology
Wired
Form factor
Surface-mountable
Graphics Modes
4K
Limited Warranty
3 Year
Manufacturer
Gefen Inc
Manufacturer Part Number
GTB-UHD600-HBTL
Manufacturer Website Address
http://www.gefen.com
Marketing Information

Gefen GTB-UHD600-HBTL

Extend Full-Bandwidth HDMI 2.0 w/ HDR up to 40 meters/132 feet over a single CAT-5

The Gefen GTB-UHD600-HBTL is a compact and high-performance solution for extending full-bandwidth HDMI 2.0 audio/video with HDR up to 40 meters (132 feet) over a CAT-5e or better cable. It supports 18.2 Gbps of data throughput and 600 MHz TMDS Clock frequency the highest specified under the HDMI 2.0 standard. This extender uses HDBaseT™ technology along with Gefen's visually lossless proprietary compression algorithms with very high PSNR (Peak Signal to Noise Ratio) to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 to 60 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz 4:4:4) with HDR. High Dynamic Range (HDR) delivers greater contrast between light and dark areas of a video image resulting in tremendous improvement in picture quality and color depth. HDCP 2.2 and the legacy HDCP 1.4 are both supported. The GTB-UHD600-HBTL also supports 1080p Full HD WUXGA (1920 x 1200) 3DTV and Deep Color (up to 1080p resolution). Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby Atmos® Dolby® TrueHD DTS:X™ and DTS-HD Master Audio™ are passed through to the HDMI outputs. The GTB-UHD600-HBTL provides 2-way IR extension between the Sender and the Receiver units facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Gefen's Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. Small low profile enclosures can be securely surface-mounted and conveniently hidden away from sight and accommodate Gefen locking HDMI cables for secure connections.

Maximum Operating Distance
200 ft
Maximum Video Resolution
4096 x 2160
Media Type Supported
Twisted Pair
Number of HDMI Inputs
1
Number of Network (RJ-45) Ports
2
Package Contents
  • 1 x Sender Unit (GTB-UHD600-HBTL-TX)
  • 1 x Receiver Unit (GTB-UHD600-HBTL-RX)
  • 1 x HDMI-To-HDMI Male-To-Male Locking Cable 6 Feet
  • 1 x IR Emitter (EXT-IREMIT)
  • 1 x IR Extender (EXT-RMT-EXTIRN)
  • 1 x 12V DC Power Supply With US/EU/UK/AU Reginal AC Plugs And 5.5mm/2.1mm DC Plug (EXT-PS121.5AIP-LP-6)
  • 1 x Quick-Start Guide
Product Name
4K Ultra HD 600 MHz HDBaseT Extender w/ HDR 2-Way IR And POL
Product Type
Video Extender Transmitter/Receiver
Twisted Pair Cable Standard
Category 6a
