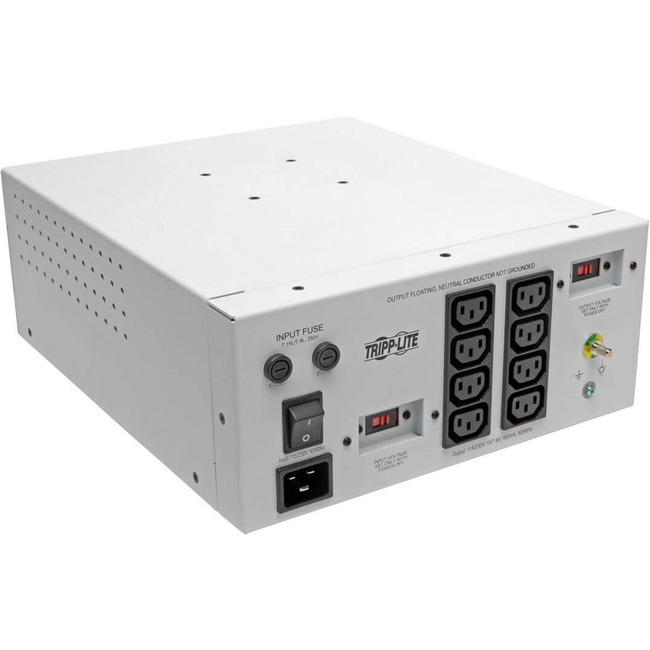

Tripp Lite Isolation Transformer Hospital Dual-Voltage 115/230V 1800W 8 C13
Tripp Lite Isolation Transformer Hospital Dual-Voltage 115/230V 1800W 8 C13 - 1800 VA - 120 V AC, 230 V AC Input - 115 V AC, 230 V AC Output
| $1,360.60 | Retail $2,063.36 |
- Protects sensitive equipment from EMI/RFI line noise and surges
- Cumulative leakage current less than 100 µA
- Automatically shuts down all outlets in case of overload
- Offers complete isolation from input AC mains power
- Ideal for use in any industrial, network or medical environment
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
105664
Item:
IS1800HGDV
UPC Code:
037332200037
Our Part #
3BU437
Condition
New
$1,360.60EA
$2,063.36
$2,063.36
Availability
Only 10 Left In Stock
You may be also interested
Product description
Tripp Lite Isolation Transformer Hospital Dual-Voltage 115/230V 1800W 8 C13 - 1800 VA - 120 V AC, 230 V AC Input - 115 V AC, 230 V AC Output
1800 VA - 120 V AC, 230 V AC Input - 115 V AC, 230 V AC Output
Specifications
Input Receptacles
IEC 60320 C14
Output Receptacle Detail
8 x IEC 60320 C13
Output Receptacles
IEC 60320 C13
Shipping Depth
19.69"
Shipping Height
11.02"
Shipping Width
17.52"
UPC Alternates
037332200037
Brand Name
Tripp Lite
Certifications & Standards
- ANSI/AAMI ES60601-1:2005+A2+A1
- IEC60601-1 3RD EDITION +A1
- cAN/CSA-C22.2 NO. 60601-1:14
- CE
- NOM
Country of origin
Taiwan
Depth
13.8"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Cabinet
Height
5.5"
Input voltage
230 V AC
Input voltage
120 V AC
Limited Warranty
2 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
IS1800HGDV
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The IS1800HGDV Isolator® Series Dual-Voltage 115/230V 1800W 50/60Hz Medical-Grade™ Transformer with full CAN/ES/IEC/EN 60601-1 listing is ideal for protecting sensitive electronic equipment in patient-care vicinities. It can be configured for either step-up voltage step-down voltage or pass-through voltage operation. Along with line isolation and continuous EMI/RFI line noise filtering its surge protection rating of 240 joules suppresses excess voltage to prevent it from damaging connected equipment.
An internal low-impedance isolation transformer component offers 100% isolation from the input mains AC line. Faraday shield reduces the cumulative leakage current of the IS1800HGDV and connected equipment to levels less than 100 microamps while removing utility switching transients and harmonics generated by other on-site loads and reducing the impact of utility or lightning related surge conditions.
Transformer filtering provides continuous common-mode noise rejection with no wearable parts. The IS1800HGDV reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode.
Components connect to eight C13 outlets with fuse overload protection and a lighted on/off switch. The rugged all-metal unit housing ships ready for placement in any industrial medical office network or audio/video environment. Requires a C20-to-C19 AC input cord (sold separately).
An internal low-impedance isolation transformer component offers 100% isolation from the input mains AC line. Faraday shield reduces the cumulative leakage current of the IS1800HGDV and connected equipment to levels less than 100 microamps while removing utility switching transients and harmonics generated by other on-site loads and reducing the impact of utility or lightning related surge conditions.
Transformer filtering provides continuous common-mode noise rejection with no wearable parts. The IS1800HGDV reduces 6000V IEEE 587 Category A and B ring wave and combination wave test surges to only 0.5V common mode.
Components connect to eight C13 outlets with fuse overload protection and a lighted on/off switch. The rugged all-metal unit housing ships ready for placement in any industrial medical office network or audio/video environment. Requires a C20-to-C19 AC input cord (sold separately).
Maximum Line Current
15 A
Output voltage
115 V AC
Package Contents
- Isolator IS1800HGDV Isolation Transformer
- 2 x Fuse Sets (115V and 230V Operation)
- Input/Output Cable Selector Data Sheet
- Owner's Manual
Power Rating
1800 VA
Product color
White
Product Line
Isolator
Product Name
Isolator IS1800HGDV Isolation Transformer
Product Type
Isolation Transformer
Shipping Weight (Approximate)
51.21 lb
Width
11.8"
