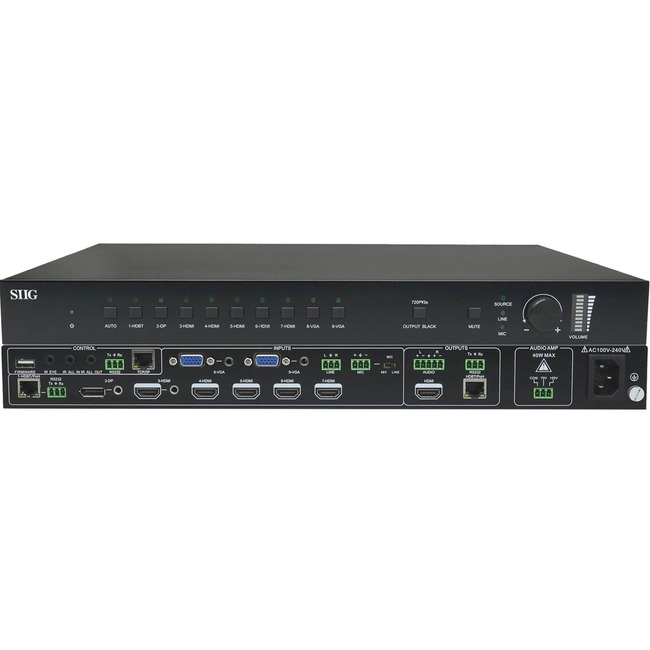

SIIG 9x1 HDBaseT 4K Scaler Switcher
SIIG 9x1 HDBaseT 4K Scaler Switcher - 4096 x 2160 - 4K - Twisted Pair - 9 x 1 - Display - 1 x HDMI Out - 1 x DisplayPort In - DisplayPort
| $1,349.22 | Retail $2,899.00 |
- Use this audio video switchbox and eliminate the need to manually switch cables between sources
- Trouble free connection with display
- Switch between 9 sources to a single display
- Up to 4096 x 2160 video resolution
By:
SIIG
Manufacturer:
SIIG, Inc
Product ID:
106052
Item:
CE-H24311-S1
UPC Code:
662774042039
Our Part #
8JX713
Condition
New
$1,349.22EA
$2,899.00
$2,899.00
Availability
Only 7 Left In Stock
You may be also interested
Product description
SIIG 9x1 HDBaseT 4K Scaler Switcher - 4096 x 2160 - 4K - Twisted Pair - 9 x 1 - Display - 1 x HDMI Out - 1 x DisplayPort In - DisplayPort
4096 x 2160 - 4K - Twisted Pair - 9 x 1 - Display - 1 x HDMI Out - 1 x DisplayPort In - DisplayPort
Specifications
Number of Connectivity (RJ-45) Ports
3
Number of Input Devices Supported
9
Number of VGA Inputs
2
UPC Alternates
662774042039 818247180276 818285048538
Brand Name
SIIG
Connectivity technology
Cable
Country of origin
China
Depth
10.9"
Device Supported
Display
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Graphics Modes
4K
Height
1.7"
Limited Warranty
3 Year
Manufacturer
SIIG Inc
Manufacturer Part Number
CE-H24311-S1
Manufacturer Website Address
http://www.siig.com
Marketing Information
Allows you to select and switch between any of the 9 source devices (1 DisplayPort 5 HDMI 2 VGA 1 HDBaseT) to display on a HDMI display through single economical CAT5e/6 cable up to 70 meters (70m-1080p/40m-4K) using advance HDBaseT technology with audio and IR control
- Scales and switches up to 9 inputs of different formats to an HDMI and HDBaseT outputs simultaneously
- Output resolution can be selected between720p 4K @60Hz YUV 4:2:0 or 4K @30Hz YUV 4:4:4
- Receives signals via HDBaseT Input up to 40m (131ft) at 4K or 70m (230ft) at 1080p
- Transmits signals via HDBaseT Output up to 70m (230ft) at 4K or 100m (328ft) at 1080p
- Device switching controllable via push buttons IR remote RS232 and GUI
- Supports Bi-directional IR control and RS232 pass-through
Maximum Operating Distance
328.08 ft
Maximum Video Resolution
4096 x 2160
Media Type Supported
Twisted Pair
Number of HDMI Inputs
5
Number of USB Ports
1
Package Contents
- 9x1 HDBaseT 4K Scaler Switcher
- HDBaseT Receiver
- IR Receiver
- IR Emitter
- IR Remote
- Power Cord
- 4 x Switcher Plastic Cushions
- 4 x Receiver Plastic Cushions
- 2 x Switcher Mounting Ears
- 6 x Screws
- 2 x Receiver Mounting Ears
- 2 x Screws
- 6 x 3-pin phoenix connectors
- 5-pin phoenix connectors
- 2 x RS-232 cable (3-pin to DB9)
- User manual
Product Name
9x1 HDBaseT 4K Scaler Switcher
Product Type
Audio/Video Switchbox
Weight (Approximate)
7.72 lb
Width
17.2"
