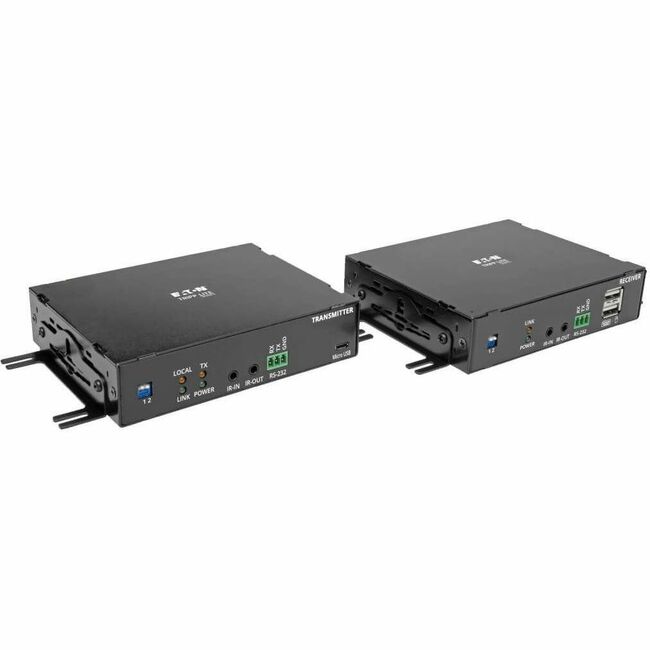

Tripp Lite DisplayPort Over Fiber Extender Kit 4K @ 30Hz IR USB Duplex SMF Singlemode TAA
Tripp Lite DisplayPort Over Fiber Extender Kit 4K @ 30Hz IR USB Duplex SMF Singlemode TAA - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 32808.40 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 3 x USB - 1 x HDMI - DisplayPort - 120 V AC, 230 V AC Input Voltage - Rack-mountable - TAA Compliant
| $816.35 | Retail $1,697.60 |
- Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
- Supports uncompressed DTSHD, Dolby AC-3 and 8-channel LPCM digital audio
- Meets DisplayPort 1.2a standards, including 4:4:4 subsampling for HDR televisions
- Transmitter's local HDMI port allows you to see the Ultra HD image being displayed
- Plug-and-play operation with no software required for easy, immediate installation
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
106857
Item:
B127F-1A1-SM-DD
UPC Code:
037332239174
Our Part #
6LP464
Condition
New
$816.35EA
$1,697.60
$1,697.60
Availability
Only 83 Left In Stock
Product description
Tripp Lite DisplayPort Over Fiber Extender Kit 4K @ 30Hz IR USB Duplex SMF Singlemode TAA - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 32808.40 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 3 x USB - 1 x HDMI - DisplayPort - 120 V AC, 230 V AC Input Voltage - Rack-mountable - TAA Compliant
1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 32808.40 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 3 x USB - 1 x HDMI - DisplayPort - 120 V AC, 230 V AC Input Voltage - Rack-mountable - TAA Compliant
Specifications
Number of HDMI Ports
1
Transmitter Depth
2.46"
Transmitter Height
1.06"
Transmitter Weight (Approximate)
1.10 lb
Transmitter Width
4.53"
UPC Alternates
037332239174
Brand Name
Tripp Lite
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
REACH
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Graphic Mode
4K
Input voltage
120 V AC
Input voltage
240 V AC
Input Voltage Range
100V AC to 240V AC
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B127F-1A1-SM-DD
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Transmitter/receiver kit extends a 4K DisplayPort signal via singlemode fiber cable to a DisplayPort monitor up to 6.2 miles away.
Features
DisplayPort Extender for Digital Signage or Displaying Video in Schools or Trade Show Booths
This complete transmitter and receiver system is recommended for video presentations in conference rooms schools trade shows meeting facilities houses of worship retail settings and digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127F-1A1-SM-DD extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 6.2 miles (10 kilometers) away via user-supplied duplex singlemode LC fiber cabling.
Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 Color
The B127F-1A1-SM-DD supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with full rich uncompressed DTS-HD Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It's compatible with HDCP 2.2 DisplayPort 1.2a and EDID standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
DIP Switches Extend Your Choice of USB IR or RS-232 Signals
The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1 bi-directional IR and RS-232 functions. Only one function can be extended at a time.
Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as Tripp Lite's P580-Series). Then connect the two units using a duplex singlemode LC fiber cable (Tripp Lite N520-Series). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the receiver up to 6.2 miles away.
TAA-Compliant for GSA Schedule Purchases
The B127F-1A1-SM-DD is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Features
DisplayPort Extender for Digital Signage or Displaying Video in Schools or Trade Show Booths
This complete transmitter and receiver system is recommended for video presentations in conference rooms schools trade shows meeting facilities houses of worship retail settings and digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127F-1A1-SM-DD extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 6.2 miles (10 kilometers) away via user-supplied duplex singlemode LC fiber cabling.
Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 Color
The B127F-1A1-SM-DD supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with full rich uncompressed DTS-HD Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It's compatible with HDCP 2.2 DisplayPort 1.2a and EDID standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
DIP Switches Extend Your Choice of USB IR or RS-232 Signals
The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1 bi-directional IR and RS-232 functions. Only one function can be extended at a time.
Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as Tripp Lite's P580-Series). Then connect the two units using a duplex singlemode LC fiber cable (Tripp Lite N520-Series). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the receiver up to 6.2 miles away.
TAA-Compliant for GSA Schedule Purchases
The B127F-1A1-SM-DD is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Maximum Operating Distance
32808.40 ft
Maximum Video Resolution
3840 x 2160
Number of USB Ports
3
Package Contents
- 1 x Transmitter Unit
- 1 x Receiver Unit
- 2 x External power supplies with 4.5 ft. cord (Input: 100-240V 50/60 Hz 0.35A; Output: 5V 2A)
- 8 x International plug adapters (North America Europe Australia United Kingdom)
- 2 x Sets of Mounting Hardware
- Owner's Manual
Product color
Black
Product Name
B127F-1A1-SM-DD Video Extender Transmitter/Receiver
Product Type
KVM Console/Extender
