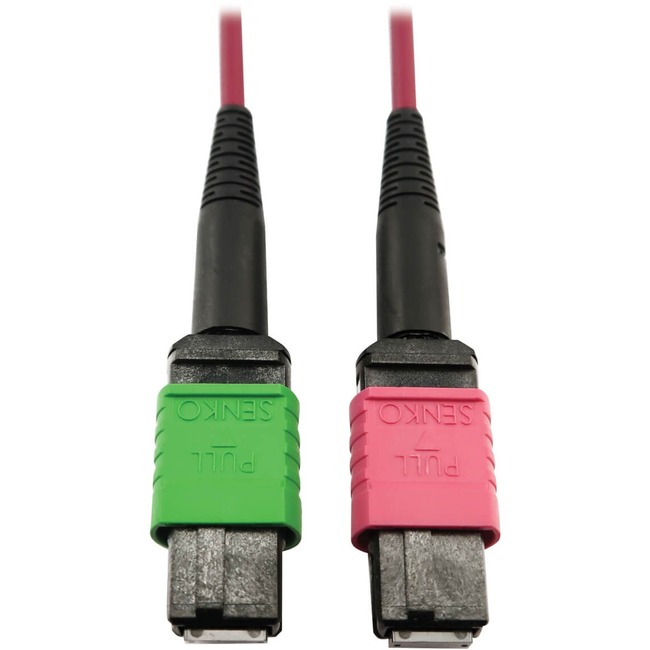

Tripp Lite Multimode Fiber Optic Cable 400G OM4 MTP/MPO-APC to MTP/MPO-UPC F/F 1M
Tripp Lite Multimode Fiber Optic Cable 400G OM4 MTP/MPO-APC to MTP/MPO-UPC F/F 1M - 3.28 ft Fiber Optic Network Cable for Network Device, Transceiver, Network Switch, Patch Panel - First End: 1 x MTP/MPO Female Network - Second End: 1 x MTP/MPO Female Network - 400 Gbit/s - Patch Cable - Plenum, OFNP - 50/125 µm - Black, Green, Magenta
| $201.08 | Retail $272.00 |
- OM4-rated cable recommended for 400 Gb speeds up to 100 m (@ 850 nm)
- MTP/MPO 16-fiber ends designed for next-generation 400G QSFP-DD transceivers
- Connectors tested for low insertion loss and back reflection to ensure top performance
- Plenum rated for horizontal premise applications in air ducts and drop ceilings
- Magenta jacket allows fast, easy identification in a crowded switch or patch panel
- This product is covered by a Lifetime Limited Warranty (coverage details)
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
108655
Item:
N846D-01M-16BMG
UPC Code:
037332258281
Our Part #
8JR193
Condition
New
$201.08EA
$272.00
$272.00
Availability
Only 45 Left In Stock
Product description
Tripp Lite Multimode Fiber Optic Cable 400G OM4 MTP/MPO-APC to MTP/MPO-UPC F/F 1M - 3.28 ft Fiber Optic Network Cable for Network Device, Transceiver, Network Switch, Patch Panel - First End: 1 x MTP/MPO Female Network - Second End: 1 x MTP/MPO Female Network - 400 Gbit/s - Patch Cable - Plenum, OFNP - 50/125 µm - Black, Green, Magenta
3.28 ft Fiber Optic Network Cable for Network Device, Transceiver, Network Switch, Patch Panel - First End: 1 x MTP/MPO Female Network - Second End: 1 x MTP/MPO Female Network - 400 Gbit/s - Patch Cable - Plenum, OFNP - 50/125 µm - Black, Green, Magenta
Specifications
Connector on First End Details
1 x MTP/MPO Network - Female
Connector Type on First End
MTP/MPO Network - Female
UPC Alternates
037332258281
Brand Name
Tripp Lite
Cable Characteristic
Patch Cable
Cable length
3.28 ft
Cable type
Fiber Optic
Color
Magenta
Color
Green
Color
Black
Color
Magenta Jacket
Connector on First End
MTP/MPO Female Network
Connector on First End
1 x MTP/MPO Female Network
Core/Cladding Diameter
50/125 µm
Country of origin
China
Data transfer rate
400 Gbit/s
Device Supported
Patch Panel
Device Supported
Network Switch
Device Supported
Network Device
Device Supported
Transceiver
Environmental Certification
RoHS
Environmental Certification
REACH
Environmentally Friendly
Yes
Features
Stranded
Fiber Optic Mode
Multi-mode
Jacket Color
Magenta
Jacket Type
OFNP
Jacket Type
Plenum
Limited Warranty
Lifetime
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N846D-01M-16BMG
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data and Voice Networking
As the amount of traffic in data networks grows so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services hyperscale data centers telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards.
16-Fiber MTP/MPO Connectors Designed for the Latest QSFP-DD Transceivers
The 16F MPO connectors have a wide parallel optical interface for use with the latest 400G QSFP-DD transceivers making this cable an excellent solution for your high-density network application. The connectors are the same size as standard SC connectors but 12 times denser allowing vertical stacking in switches or patch panels where space is at a premium. Pull tabs make the cable easy to install or remove with one hand.
Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The three-millimeter ruggedized plenum-rated jacket has low smoke and flame characteristics making it suitable for premise applications in ceilings walls and ducts.
Product color
Black
Product color
Green
Product Name
N846D-01M-16BMG Fiber Optic Patch Network Cable
Product Type
Network Cable
