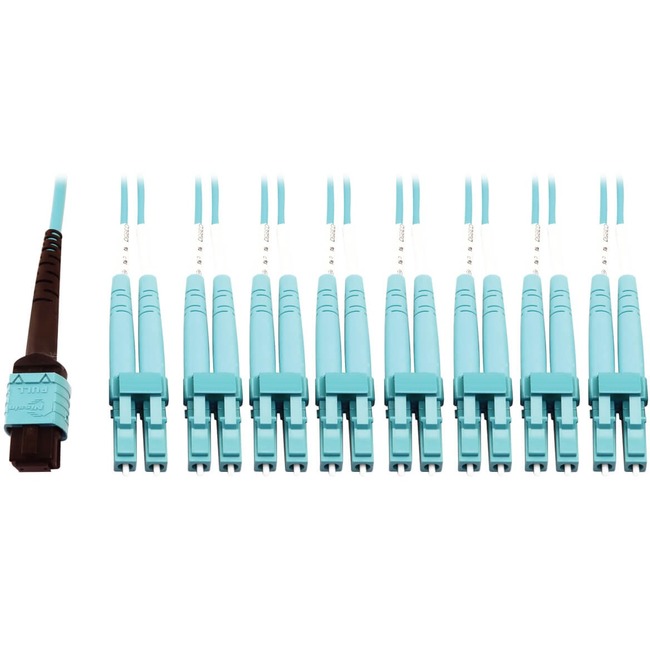

Tripp Lite Multimode Fiber Optic Breakout Cable 24F MTP/MPO-PC to x8 LC F/M 5M
Tripp Lite Multimode Fiber Optic Breakout Cable 24F MTP/MPO-PC to x8 LC F/M 5M - 16.40 ft Fiber Optic Network Cable for Network Device, Transceiver, Network Switch, Patch Panel - First End: 1 x MTP/MPO Female Network - Second End: 16 x LC Male Network - 400 Gbit/s - Plenum, OFNP - 50/125 µm - Aqua, Black
| $368.22 | Retail $497.60 |
- OM4-rated cable recommended for 400 Gb speeds up to 100 m (@ 850 nm)
- MTP/MPO 24-fiber end designed for next-gen 400G QSFP-DD transceivers
- Connectors tested for low insertion loss and back reflection to ensure top performance
- Plenum rated for horizontal premise applications in air ducts and drop ceilings
- Aqua jacket allows fast, easy identification in a crowded switch or patch panel
- This product is covered by a Lifetime Limited Warranty (coverage details)
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
108674
Item:
N846D-05M-24CAQ
UPC Code:
037332258465
Our Part #
8JR217
Condition
New
$368.22EA
$497.60
$497.60
Availability
Only 38 Left In Stock
Product description
Tripp Lite Multimode Fiber Optic Breakout Cable 24F MTP/MPO-PC to x8 LC F/M 5M - 16.40 ft Fiber Optic Network Cable for Network Device, Transceiver, Network Switch, Patch Panel - First End: 1 x MTP/MPO Female Network - Second End: 16 x LC Male Network - 400 Gbit/s - Plenum, OFNP - 50/125 µm - Aqua, Black
16.40 ft Fiber Optic Network Cable for Network Device, Transceiver, Network Switch, Patch Panel - First End: 1 x MTP/MPO Female Network - Second End: 16 x LC Male Network - 400 Gbit/s - Plenum, OFNP - 50/125 µm - Aqua, Black
Specifications
Connector on First End Details
1 x MTP/MPO Network - Female
Connector on Second End Details
16 x LC Network - Male
Connector Type on First End
MTP/MPO Network - Female
Connector Type on Second End
LC Network - Male
Jacket Material
Polyvinyl Chloride (PVC)
UPC Alternates
037332258465
Brand Name
Tripp Lite
Cable length
16.40 ft
Cable type
Fiber Optic
Color
Black
Color
Aqua Jacket
Color
Aqua
Connector on First End
1 x MTP/MPO Female Network
Connector on First End
MTP/MPO Female Network
Connector on Second End
LC Male Network
Connector on Second End
16 x LC Male Network
Core/Cladding Diameter
50/125 µm
Country of origin
China
Data transfer rate
400 Gbit/s
Device Supported
Network Device
Device Supported
Transceiver
Device Supported
Patch Panel
Device Supported
Network Switch
Environmental Certification
RoHS
Environmental Certification
REACH
Environmentally Friendly
Yes
Features
Stranded
Features
Rugged Jacket
Features
Push-Pull Tab
Fiber Optic Mode
Multi-mode
Jacket Color
Aqua
Jacket Type
Plenum
Jacket Type
OFNP
Limited Warranty
Lifetime
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N846D-05M-24CAQ
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data and Voice Networking
As the amount of traffic in data networks grows so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services hyperscale data centers telecom applications and equipment OEM companies. This multimode 50/125 OM4 breakout cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards.
24-Fiber MTP/MPO Connector Designed for the Latest QSFP-DD Transceivers
The MPO connector has a wide parallel optical interface for use with the latest 400G QSFP-DD transceivers making this cable an excellent solution for your high-density network application. The MPO connector is the same size as a standard SC connector but much denser allowing vertical stacking in switches or patch panels where space is at a premium. Pull tabs make the cable easy to install or remove with one hand. The LC duplex connectors are recommended for high-density feed-through cassettes with no splicing required.
Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has an aqua jacket which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The three-millimeter ruggedized plenum-rated jacket has low smoke and flame characteristics making it suitable for premise applications in ceilings walls and ducts.
Product color
Black
Product Name
N846D-05M-24CAQ 400G Multimode 50/125 OM4 Fiber Optic Cable Aqua 5 m
Product Type
Network Cable
