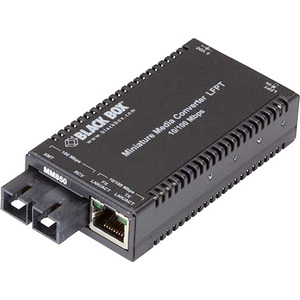

Black Box MultiPower Miniature Transceiver/Media Converter
Black Box MultiPower Miniature Transceiver/Media Converter - 1 x Network (RJ-45) - 2 x SC Ports - DuplexSC Port - Multi-mode - Fast Ethernet - 10/100Base-T, 100Base-SX - DIN Rail Mountable - TAA Compliant
| $199.44 | Retail $223.95 |
- Compliant to EN62368
- Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
- Compact size; measures just 0.8"H x 1.8"W x 3.4"D.
- Powered by a universal AC power supply or the optional rackmountable PowerTray.
- Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
- Converters may also be powered from a USB port using the LHC021A USB power cable.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
108792
Item:
LHC041A-R4
UPC Code:
822088149088
Our Part #
8RN509
Condition
New
$199.44EA
$223.95
$223.95
Availability
Only 19 Left In Stock
Product description
Black Box MultiPower Miniature Transceiver/Media Converter - 1 x Network (RJ-45) - 2 x SC Ports - DuplexSC Port - Multi-mode - Fast Ethernet - 10/100Base-T, 100Base-SX - DIN Rail Mountable - TAA Compliant
1 x Network (RJ-45) - 2 x SC Ports - DuplexSC Port - Multi-mode - Fast Ethernet - 10/100Base-T, 100Base-SX - DIN Rail Mountable - TAA Compliant
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Wavelength
850 nm
Maximum Distance Supported
984.25 ft
Number of SC Ports
2
SC Port Type
Duplex
UPC Alternates
822088149088
Brand Name
Black Box
Country of origin
Taiwan
Depth
3.4"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Form factor
DIN Rail Mountable
Height
0.8"
Limited Warranty
6 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
LHC041A-R4
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable then connect a fiber cable to the converter's other side. That's all there is to it! Best of all you can tuck these tiny converters unobtrusively behind your PC. The converters not only link 10- and 100-Mbps segments to fiber cabling they also work as data rate converters performing 10/100 autonegotiation on the twisted-pair port. Choose from multimode duplex single-mode duplex and single-mode single-strand duplex fiber versions. For extra versatility you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter through the optional USB Power Adapter Cable (LHC021A) which plugs into a PC's USB port and is sold separately or through the optional rackmount PowerTray (LHC018A-AC-R2).
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
10/100Base-T
Network Technology
100Base-SX
Number of Network (RJ-45) Ports
1
Package Contents
- MultiPower Miniature Transceiver/Media Converter
- AC Power Supply
Power source
AC Adapter
Product Line
Multipower Miniature
Product Name
MultiPower Miniature Transceiver/Media Converter
Product Type
Transceiver/Media Converter
Total Number of Ports
3
Weight (Approximate)
4.80 oz
Width
1.8"
