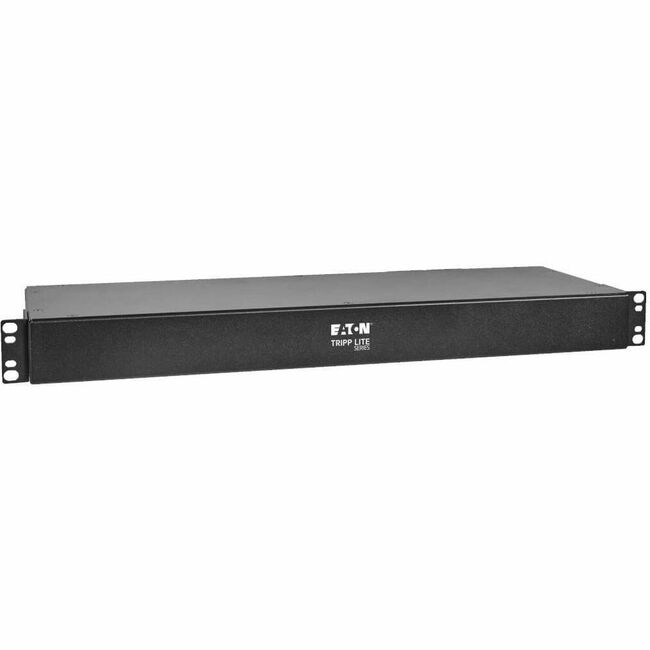

Tripp Lite PDU Metered 8 C13 2 C19 3.2/3.8kW 208/240V L6-20P 6ft Cord 1URM
Tripp Lite PDU Metered 8 C13 2 C19 3.2/3.8kW 208/240V L6-20P 6ft Cord 1URM - Metered - NEMA L6-20P - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 1U - Horizontal/Vertical - Wall-mountable, Rack-mountable - TAA Compliant
| $199.13 | Retail $290.16 |
- 8 C13 and 2 C19 208/240V outlets distribute AC power to connected equipment
- Digital ammeter for on-site real-time load monitoring helps prevent power overloads
- 6 ft. cord with NEMA L6-20P single-phase input connects to AC power source
- Flexible installation options include 1U and 0U rack, under counter and on wall
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 2-year limited warranty
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
108812
Item:
PDUMH20HVL66
UPC Code:
037332255785
Our Part #
8JT721
Condition
New
$199.13EA
$290.16
$290.16
Availability
Only 1 Left In Stock
Product description
Tripp Lite PDU Metered 8 C13 2 C19 3.2/3.8kW 208/240V L6-20P 6ft Cord 1URM - Metered - NEMA L6-20P - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 1U - Horizontal/Vertical - Wall-mountable, Rack-mountable - TAA Compliant
Metered - NEMA L6-20P - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 1U - Horizontal/Vertical - Wall-mountable, Rack-mountable - TAA Compliant
Specifications
Mounting Orientation
Horizontal/Vertical
PDU Type
Metered
Phase
Single Phase
Power Rating (Watt)
3800 W
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
UPC Alternates
037332255785
Additional Information
USER INTERFACE ALERTS & CONTROLS
- Front Panel LCD Display: Digital display reports total PDU output current in amps
- Switches: n/a
- Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
- Relative Humidity: 5-95% non-condensing
SPECIAL FEATURES
- TVSS Grounding: Rear grounding lug
Brand Name
Tripp Lite
Certifications & Standards
STANDARDS & COMPLIANCE
- Certifications: Tested to UL 60950-1 (USA); Tested to CSA (Canada) RoHS compliant TAA compliant
- Certification Details: Series Number (s) AGPD7985; Safety Standards (Canada) CAN/CSA-C22.2 No. 60950-1:2007 (2nd Ed); Safety Standards (U.S.) UL60950-1:2007 (2nd Ed); FCC/ICES Compliant CLASS A; 47 CFR FCC PART 15 SUBPART B; Safety Standards (International) IEC60950-1:2005 (2nd Ed)+A1:2009; NOM; RETIE EMI/EMC Standards Class A; EN55022:2010+AC:2011; EN55024:2010
Cord Length
6 ft
Country of origin
Taiwan
Depth
6.5"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
1.8"
Input current
20 A
Input voltage
230 V AC
Limited Warranty
2 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDUMH20HVL66
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time
This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications small computer rooms and other equipment rack applications the PDUMH20HVL66 features eight C13 and two C19 208/230V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels even while adding new equipment can keep your TCO (total cost of ownership) low.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware. The six-foot cord with NEMA L6-20P input plug connects the single-phase PDU to a protected UPS system generator or mains input source for reliable multi-outlet power distribution.
TAA-Compliant for GSA Schedule Purchases
The PDUMH20HVL66 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Mount Type
Wall-mountable
Mount Type
Rack-mountable
Output voltage
240 V AC
Output voltage
208 V AC
Package Contents
- PDUMH20HVL66 10-Outlets PDU
- 10 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- Owner's Manual
Placement
Under-counter
Plug/Connector Type
NEMA L6-20P
Product Name
PDUMH20HVL66 10-Outlets PDU
Product Type
PDU
Protection Type
Overload Protection
Protection Type
Circuit Protection
Protection Type
Accidental Power Shutdown
Rack Height
1U
Receptacle Type
IEC 60320 C13
Receptacle Type
IEC 60320 C19
Weight (Approximate)
6.80 lb
Width
17.5"
