Tripp Lite PDU Basic 32 C13 6 C19 3.3/3.8kW 208/240V L6-20P 10ft Cord 0URM
Tripp Lite PDU Basic 32 C13 6 C19 3.3/3.8kW 208/240V L6-20P 10ft Cord 0URM - Basic - NEMA L6-20P - 32 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 0U - Vertical/Toolless - Wall-mountable, Rack-mountable
| $270.28 | Retail $413.72 |
- Ideal no-frills PDU for telecom, security, audio/video and other network applications

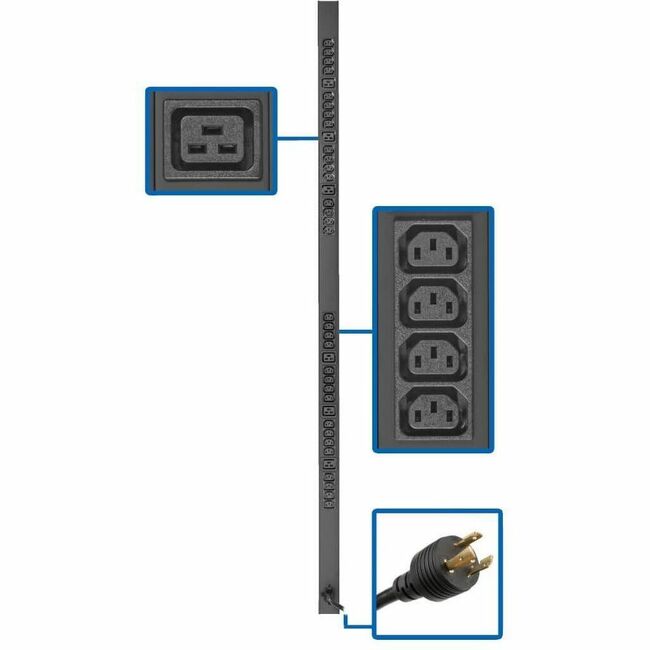

- 32 C13 and 6 C19 outlets distribute AC power to connected equipment
- Switchless design helps prevent accidental shutdowns that can lead to costly downtime
- 10 ft. cord with NEMA L6-20P single-phase input connects to compatible power source
- 63.75 in. 0U PDU with included mounting hardware installs in rack or under counter
- 5-year limited warranty
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
108814
Item:
PDUV20HVL6-72
UPC Code:
037332255945
Our Part #
8JT723
Condition
New
$270.28EA
$413.72
$413.72
Availability
Only 6 Left In Stock
Product description
Tripp Lite PDU Basic 32 C13 6 C19 3.3/3.8kW 208/240V L6-20P 10ft Cord 0URM - Basic - NEMA L6-20P - 32 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 0U - Vertical/Toolless - Wall-mountable, Rack-mountable
Basic - NEMA L6-20P - 32 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - 0U - Vertical/Toolless - Wall-mountable, Rack-mountable
Specifications
Mounting Orientation
Vertical/Toolless
PDU Type
Basic
Phase
Single Phase
Power Rating (Watt)
3840 W
Receptacle Detail
6 x IEC 60320 C19
Receptacle Detail
32 x IEC 60320 C13
UPC Alternates
037332255945
Additional Information
ENVIRONMENTAL
- Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
- Relative Humidity: 5-95% non-condensing
- Operating Elevation: (ft.) 0-10000
- Operating Elevation: (m) 0-3000
USER INTERFACE ALERTS & CONTROLS
- Switches: n/a
Brand Name
Tripp Lite
Certifications & Standards
STANDARDS & COMPLIANCE
- Certifications: Tested to UL60950-1 (USA Canada) NOM (Mexico)
- Certification Details: Series Number (s) AGIB6672; Safety Standards (Canada) CAN/CSA-C22.2 No. 60950-1:2007 (2nd Ed) +A1:2011 +A2:2014; Safety Standards (U.S.) UL60950-1:2007 (2nd Ed)+A1 R10.14; Safety Standards (International) IEC60950-1:2005 (2nd Ed)+A1:2009+A2:2013
Cord Length
10 ft
Country of origin
China
Depth
3.8"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
63.8"
Input current
20 A
Input voltage
230 V AC
Limited Warranty
5 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDUV20HVL6-72
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Single-Phase 208/240V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking telecom security audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers computer rooms and network closets the PDUV20HVL6-72 features 32 C13 and six C19 outlets for connecting equipment. A 10-foot cord with NEMA L6-20P input plug connects to your facility's AC power source generator or protected UPS system to distribute power to connected loads. The switchless design helps prevent an accidental shutdown which could lead to costly downtime.
Versatile Installation Options Give You Plenty of Choices
The 63.75-inch all-metal housing supports 0U vertical mounting in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall counter or other flat secure surface. Included C20 and C14 plug-lock inserts attach to the connected components' plugs to keep them connected and the devices continuously powered.
Typical Applications
Deliver network-grade power to high-density equipment in networking telecom security audio/video and sound reinforcement applications
Package Includes
- PDUV20HVL6-72 3.3/3.8kW 208/240V Single-Phase Basic PDU
- (38) Plug-lock inserts
- Mounting hardware
- Owner's manual
Mount Type
Rack-mountable
Mount Type
Wall-mountable
Output voltage
200 V AC
Output voltage
208 V AC
Output voltage
240 V AC
Package Contents
- PDUV20HVL6-72 38-Outlets PDU
- 38 x Plug-lock Inserts
- Mounting Hardware
- Owner's Manual
Placement
Under-counter
Plug/Connector Type
NEMA L6-20P
Product Name
PDUV20HVL6-72 38-Outlets PDU
Product Type
PDU
Protection Type
Accidental Power Shutdown
Rack Height
0U
Receptacle Type
IEC 60320 C19
Receptacle Type
IEC 60320 C13
Weight (Approximate)
8 lb
Width
2.3"
