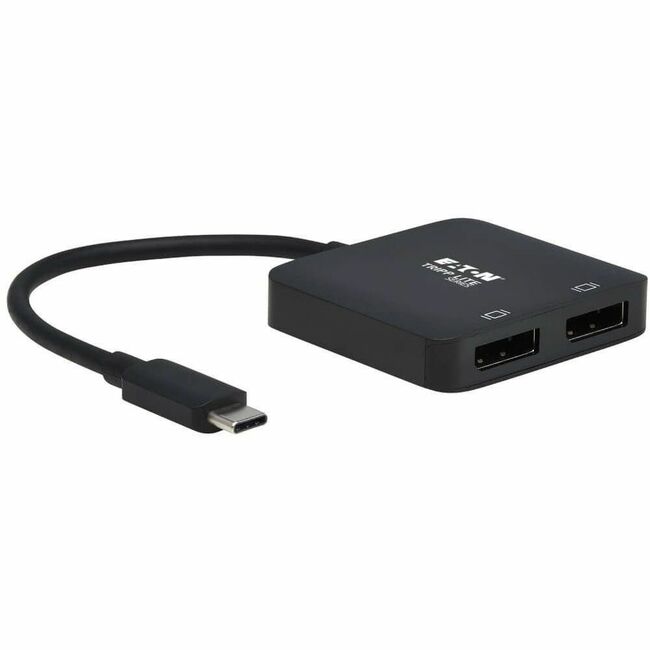

Tripp Lite U444-2DP-MST4K6 USB-C Adapter, Dual Display, Black

SB-C to DisplayPort Adapter Connects 8K or 4K DisplayPort Monitors to Your USB-C Device
This USB adapter connects one 8K or two 4K DisplayPort monitors projectors and/or televisions to the USB-C or Thunderbolt 3 port on your MacBook Pro Chromebook or Windows laptop. It's an ideal connector for creating video walls giving video presentations in conference rooms and classrooms editing multiple documents or high-definition video on a larger screen or streaming video for digital signage in crystal-clear 8K or 4K.

Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals
By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode you can output 8K/4K video and digital audio to DisplayPort monitors televisions or projectors without installing special software drivers. Note: To achieve 8K/4K resolution the source device should support DP 1.4 Alt Mode. When a monitor is connected to a DP 1.2 Alt Mode source the corresponding resolution will be decreased due to bandwidth limitation.

DisplayPort SST and MST Modes Allow Connection of Multiple Displays
By connecting the USB-C adapter to a source that supports DisplayPort Single-Stream Transport (SST) or Multi-Stream Transport (MST) mode you may connect up to two displays simultaneously. This allows you to display the same image on both monitors extend your host desktop across both with different windows open on each or combine both into one large display as a video wall depending on your operating system.

Enjoy the Clarity of 8K/4K Video with HDR 4:4:4 Color and 7.1-Channel Audio
This USB to DisplayPort adapter supports connection of one 8K/30 Hz monitor or two 4K/60 Hz monitors with 7.1-channel surround sound. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast brighter whites and deeper blacks that pop on your display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This adapter also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Ready to Use Right from the Package So You Can Plug and Play Immediately
The adapter requires no software or external power. Just connect the USB-C cable to the USB-C or Thunderbolt 3 port on a source device that supports USB DisplayPort Alternate Mode and connect the DisplayPort outputs to your displays with user-provided cables (such as Tripp Lite's P580-Series cables).

• U444-2DP-MST4K6 USB-C Adapter Dual Display Black
• Owner's Manual
