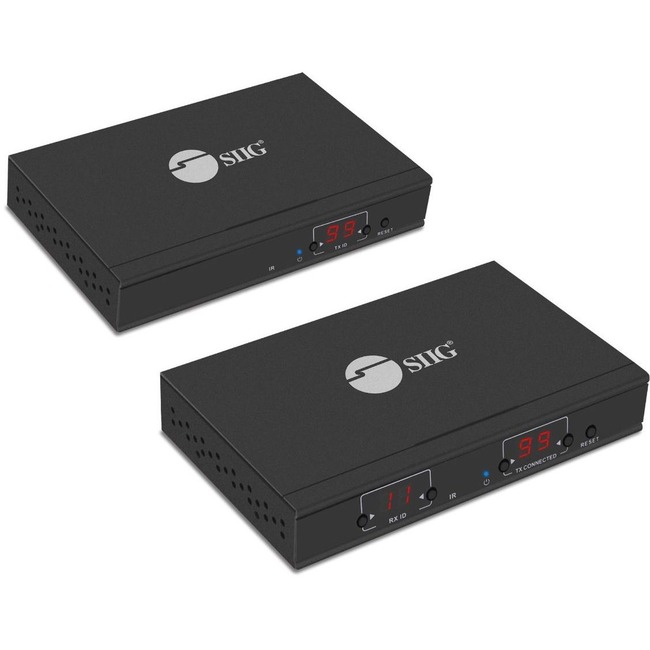

1080p HDMI Over IP Extender with IR - Kit

Features

• Extends HDMI signals with stereo audio to a remote display over UTP CAT5e/6 cabling up to 120 meters

• Works as a scalable TX/RX Matrix over dedicated IP network allows up to 256 total units limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S2) and receiver units (part# CE-H23C11-S2) sold separately

• Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images

• Supports IR pass back function to control the source device from RX location

• Supports computer control software to select and switch between source devices (Matrix only)

• Supports HDbit-T protocol with H.264 compression over IP

• HDMI output on the transmitter allows you to monitor the HDMI signal at the source location

• RS-232 pass-through connection to control RS-232 enabled devices at either direction

• HDMI Over IP Extender with IR - Kit
• 2 x Power Adapters
• IR Blaster Extension Cable and IR Receiver Extension Cable
• 4 x Mounting Ears
• 8 x Screw Kit
• Remote Control
• 2 x 3 Pin Phoenix Connectors
• User Reference Guide
