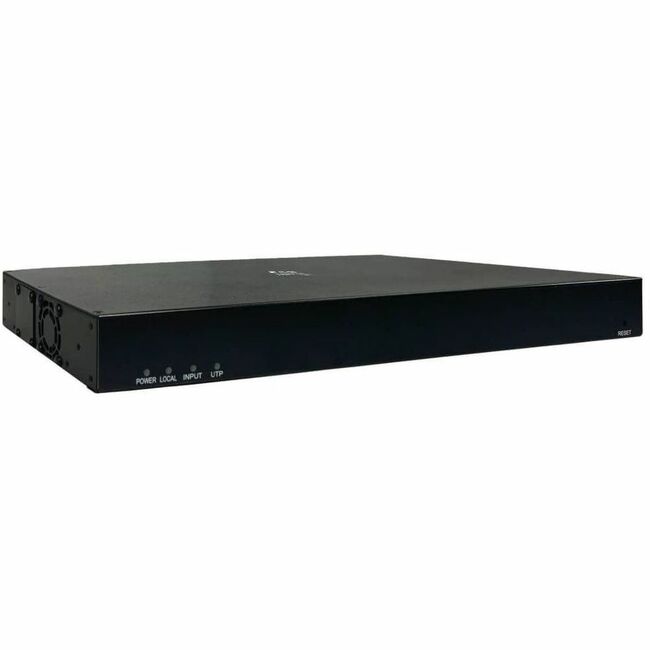

Tripp Lite B127A-008-BH 8-Port HDMI over Cat6 Splitter
Tripp Lite B127A-008-BH 8-Port HDMI over Cat6 Splitter - 3840 � 2160 - 460 ft Maximum Operating Distance - 1 x HDMI In - 1 x HDMI Out - Network (RJ-45) - Metal - TAA Compliant
| $468.12 | Retail $683.20 |
- Split CATV and other signals with this satellite splitter so that it can be used for more than one device
- Up to 3840 � 2160 video resolution.
- Features HDMI input to get connected with the top of the line HDMI supported devices
- Features HDMI port for delivering and transferring high-quality picture and sound simultaneously at a high-speed.
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
109593
Item:
B127A-008-BH
UPC Code:
037332269171
Our Part #
037332269171
Condition
New
$468.12EA
$683.20
$683.20
Availability
Only 132 Left In Stock
Product description
Tripp Lite B127A-008-BH 8-Port HDMI over Cat6 Splitter - 3840 � 2160 - 460 ft Maximum Operating Distance - 1 x HDMI In - 1 x HDMI Out - Network (RJ-45) - Metal - TAA Compliant
3840 � 2160 - 460 ft Maximum Operating Distance - 1 x HDMI In - 1 x HDMI Out - Network (RJ-45) - Metal - TAA Compliant
Specifications
Product Material
Metal
UPC Alternates
037332269171
Additional Warranty Information
1-year limited warranty
Brand Name
Tripp Lite
Depth
7.1"
Environmental Certification
RoHS
Environmental Certification
REACH
Environmentally Friendly
Yes
Height
1.7"
Input voltage
120 V AC
Input voltage
230 V AC
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B127A-008-BH
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Works with Tripp Lite B127A-Series receivers to extend a 4K audio/video signal 230 ft. via Cat6 cable to 8 HDMI displays.
Features | HDMI Multi-Output Splitter Ideal for Digital Signage in Schools and Workplaces
This 4K transmitter/splitter is recommended for video presentations in conference rooms schools trade shows meeting facilities houses of worship retail settings hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.
Extends a 4K A/V Transmission up to 230 ft. (70.1 m)... or Even Farther
The B127A-008-BH connects to Tripp Lite B127A-Series receivers to extend 4K signals from an HDMI source to eight HDMI displays up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. By adding Tripp Lite B127A-010-H signal repeaters or B127A-110-BH transceivers (each sold separately) to the application you can extend the signal to each connected display up to 400 feet (121.9 meters) or 460 feet (140.2 meters) respectively.
Transmits Crystal-Clear 4K Video with Multi-Channel Audio HDR and 4:4:4 Color
The B127A-008-BH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with true uncompressed 7.1-channel digital audio and Dolby TrueHD. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This splitter also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
Say you have a brand new 4K/60 Hz HDTV in one room but want to also connect your Blu-ray player or satellite box to an older 1080p TV in another room. The B127A-008-BH is backward compatible with 4K/30 Hz and 1080p resolutions via automatic switching allowing each connected monitor to display video at its maximum resolution.
Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver connect a 4K display to the splitter's local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities so the connected monitor must also support 4K/60 Hz to function properly.
Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the connected receivers over Cat6 cable. LEDs indicate when the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers where needed without worrying about finding a nearby AC outlet.
Plug-and-Play Operation for Quick Setup and Immediate Use
The splitter works right out of the package with no software required. Mounting hardware is included for installing it on a wall pole or 19-inch rack. Connect the splitter to an HDMI source device with a usersupplied HDMI cable (such as Tripp Lite's P568- or P569-Series). Then connect the splitter to Tripp Lite B127A-Series remote receivers with user-supplied Cat6 cable (such as Tripp Lite's N202-Series).
TAA-Compliant for GSA Schedule Purchases
The B127A-008-BH is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Features | HDMI Multi-Output Splitter Ideal for Digital Signage in Schools and Workplaces
This 4K transmitter/splitter is recommended for video presentations in conference rooms schools trade shows meeting facilities houses of worship retail settings hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.
Extends a 4K A/V Transmission up to 230 ft. (70.1 m)... or Even Farther
The B127A-008-BH connects to Tripp Lite B127A-Series receivers to extend 4K signals from an HDMI source to eight HDMI displays up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. By adding Tripp Lite B127A-010-H signal repeaters or B127A-110-BH transceivers (each sold separately) to the application you can extend the signal to each connected display up to 400 feet (121.9 meters) or 460 feet (140.2 meters) respectively.
Transmits Crystal-Clear 4K Video with Multi-Channel Audio HDR and 4:4:4 Color
The B127A-008-BH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with true uncompressed 7.1-channel digital audio and Dolby TrueHD. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This splitter also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
Say you have a brand new 4K/60 Hz HDTV in one room but want to also connect your Blu-ray player or satellite box to an older 1080p TV in another room. The B127A-008-BH is backward compatible with 4K/30 Hz and 1080p resolutions via automatic switching allowing each connected monitor to display video at its maximum resolution.
Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver connect a 4K display to the splitter's local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities so the connected monitor must also support 4K/60 Hz to function properly.
Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the connected receivers over Cat6 cable. LEDs indicate when the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers where needed without worrying about finding a nearby AC outlet.
Plug-and-Play Operation for Quick Setup and Immediate Use
The splitter works right out of the package with no software required. Mounting hardware is included for installing it on a wall pole or 19-inch rack. Connect the splitter to an HDMI source device with a usersupplied HDMI cable (such as Tripp Lite's P568- or P569-Series). Then connect the splitter to Tripp Lite B127A-Series remote receivers with user-supplied Cat6 cable (such as Tripp Lite's N202-Series).
TAA-Compliant for GSA Schedule Purchases
The B127A-008-BH is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Maximum Operating Distance
460 ft
Maximum Video Resolution
3840 � 2160
Number of HDMI Inputs
1
Number of Network (RJ-45) Ports
8
Package Contents
- B127A-008-BH 8-Port HDMI over Cat6 Splitter
- External Power Supply (Input: 100-240V 50/60 Hz 1.5A; Output: 24V 2A)
- 4 x International Plug Adapters (North America U.K. Europe Australia)
- Mounting Hardware
- Owner's Manual
Product Name
B127A-008-BH 8-Port HDMI over Cat6 Splitter
Product Type
Signal Splitter
Weight (Approximate)
4.63 lb
Width
17.3"
