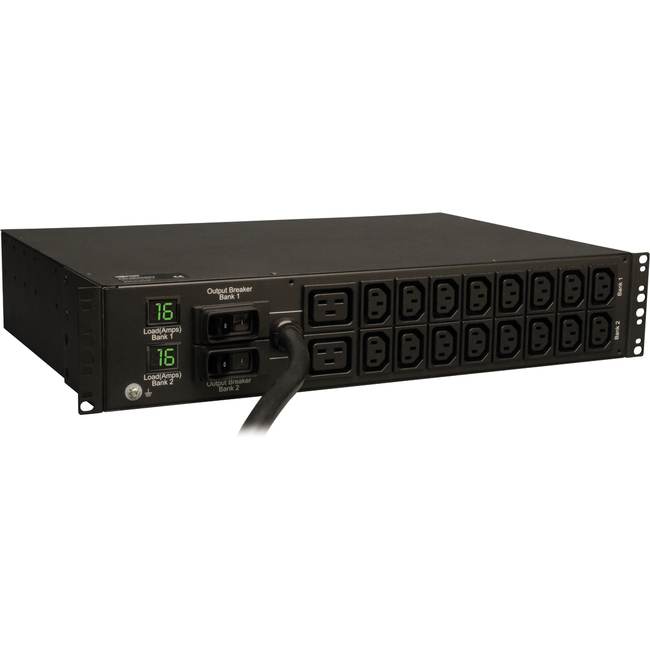

Tripp Lite PDU Metered 230V 32A 7.3kW 16 C13; 2 C19 IEC-309 Horizontal 2URM
Tripp Lite PDU Metered 230V 32A 7.3kW 16 C13; 2 C19 IEC-309 Horizontal 2URM - 2 x IEC 60320 C19, 16 x IEC 60320 C13 - 7.30 kVA - 2U - Horizontal Rackmount"
| $388.24 | Retail $602.78 |
- Metered single phase 32A 230V 2U horizontal rackmount PDU
- Set of 2 current meters reports current in amps for each output load bank
- Attached 12 ft. / 3.6m cord with IEC-309 32A (2P+E) input plug
- 18 total 230V outlets (2 C19, 16 C13)
- Reversible housing, 12.5 in. / 31.75cm depth
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
110227
Item:
PDUMH32HV
UPC Code:
037332159045
Our Part #
3F8730
Condition
New
$388.24EA
$602.78
$602.78
Availability
Only 53 Left In Stock
Product description
Tripp Lite PDU Metered 230V 32A 7.3kW 16 C13; 2 C19 IEC-309 Horizontal 2URM - 2 x IEC 60320 C19, 16 x IEC 60320 C13 - 7.30 kVA - 2U - Horizontal Rackmount"
2 x IEC 60320 C19, 16 x IEC 60320 C13 - 7.30 kVA - 2U - Horizontal Rackmount"
Specifications
Mounting Orientation
Horizontal
Power Rating (Watt)
7300 W
Receptacle Detail
16 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
UPC Alternates
037332159045
Additional Information
Plug Type : IEC-309 32A (2P+E)
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
12.5"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
3.5"
Input voltage
230 V AC
Limited Warranty
2 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDUMH32HV
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
PDUMH32HV horizontal 2U metered rack PDU supports 32A maximum capacity at 230V. Includes 12 ft / 3.6m attached line cord with Blue IEC-309 32A input plug and 18 output receptacles (16 C13 2 C19). Outlets are arranged in two separately breakered 9 outlet load banks. Set of two visual current meters tracks the output current of each load bank separately. Supports 2U rackmount installation in 19 inch racks. Included cord retention brackets keeps vital network equipment plugged in and continuously powered.
Mount Type
Rack-mountable
Package Contents
- Metered PDUMH32HV 18-Outlets 7.3kW PDU
- Mounting Brackets
- Plug Retention Brackets
- User Manual
Product Name
Metered PDUMH32HV 18-Outlets 7.3kW PDU
Product Series
Metered
Product Type
PDU
Protection Type
Overload Protection
Rack Height
2U
Receptacle Type
IEC 60320 C19
Receptacle Type
IEC 60320 C13
Weight (Approximate)
13.70 lb
Width
17.5"
