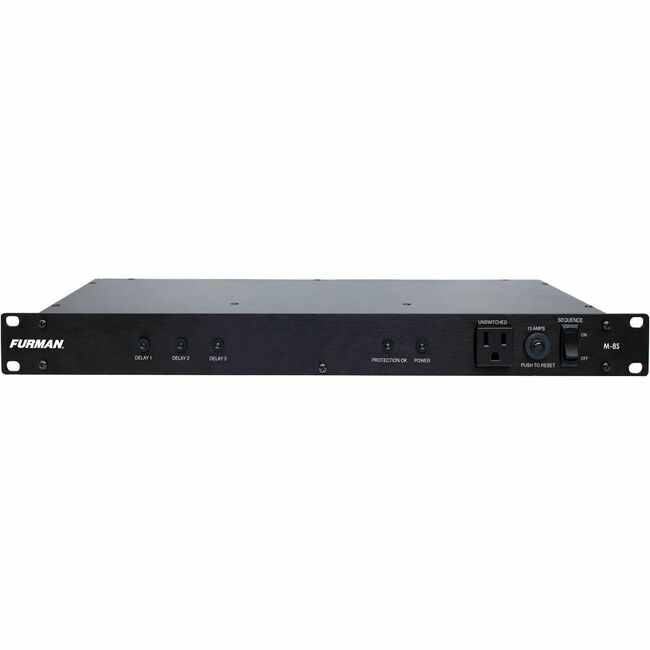

Furman POWER SEQUENCER
Furman POWER SEQUENCER - Surge protection - AC Power - 120 V AC Input
| $295.64 | Retail $469.95 |
Manufacturer:
Furman
Product ID:
111274
Item:
M-8S
UPC Code:
818224995107
Our Part #
39121020
Condition
New
$295.64EA
$469.95
$469.95
Availability
Only 5 Left In Stock
Product description
Furman POWER SEQUENCER - Surge protection - AC Power - 120 V AC Input
Surge protection - AC Power - 120 V AC Input
Specifications
Receptacles Detail
9 x AC Power
UPC Alternates
613815617358 654061041078 818224995107 997847417798
Additional Information
- Standard level AC Surge Protection : Merit Class (sacrificial)
- Spike Protection Mode : Line to neutral zero ground leakage
- Max Continuous Operating Voltage : 130V RMS
- Max Clamp Voltage : 500 Volts Peak
- Peak Impulse Current : 12000 Amps
- AC Filtering : Standard level Pi LCR Filter
- Noise Attenuation : >26dB 100 Khz to 1 MHz
- Operating Temperature Range : 5C (40F) to 40C (105F) degrees
- Humidity Range : <90% rH (Relative Humidity)
- Rocker Switch : Front panel Sequence (ON OFF)
- Thermal Circuit Breaker : Front panel push to reset
- Front Panel Indicators : Delay 1 Delay 2 Delay 3 Power Protection OK
- Rear Panel DIP Switches : 12V Mode On/Off GND Mode On Momentary/Maintained
- Potentiometer : Rear panel time calibration fine tune delay adjust
- Remote Terminal : Phoenix type 4-Pin Connector with Screw terminals; +12V STAT REM GND (Class 2 Wiring)
- Safety Agency : C/CSA/US
Compatibility
Rack
Cord Length
10 ft
Depth
8.8"
Height
1.8"
Input voltage
120 V AC
Limited Warranty
3 Year
Manufacturer
Furman
Manufacturer Part Number
M-8S
Manufacturer Website Address
http://www.furmansound.com
Marketing Information
Merit M-8S Power Sequencer is the perfect low-cost AC power solution for any rack mount system. Install an M-8S in your rack and the eight outlets in the rear panel will power up in sequence and protect all your equipment up to a 15-amp load.
Maximum Line Current
15 A
Output voltage
30 V DC
Plug/Connector Type
NEMA 5-15P
Product Name
POWER SEQUENCER
Product Type
Line Conditioner
Protection Type
Surge
Receptacle Type
AC Power
Surge energy rating
225 J
Width
19"
