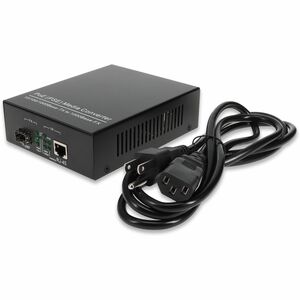

AddOn 10/100/1000Base-TX(RJ45) to 1000Base-SX(SC) MMF 850nm 550m POE Media Converter With EUR Standard Power Supply
AddOn 10/100/1000Base-TX(RJ45) to 1000Base-SX(SC) MMF 850nm 550m POE Media Converter With EUR Standard Power Supply - 100% compatible and guaranteed to work
| $193.94 | Retail $300.00 |
- Expand your network capabilities with this 2 transceiver/media converter
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over optical fiber cable
- No hassle of internal installation, install externally
Manufacturer:
AddOn
Product ID:
111716
Item:
ADD-GMCP-SX-5SC-ET
UPC Code:
821455156100
Our Part #
6E4195
Condition
New
$193.94EA
$300.00
$300.00
Availability
Only 28 Left In Stock
Product description
AddOn 10/100/1000Base-TX(RJ45) to 1000Base-SX(SC) MMF 850nm 550m POE Media Converter With EUR Standard Power Supply - 100% compatible and guaranteed to work
100% compatible and guaranteed to work
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Wavelength
850 nm
Maximum Distance Supported
1804.46 ft
Network (RJ-45)
Yes
SC Port Type
Duplex
UPC Alternates
821455156100
Certifications & Standards
IEEE 802.3af
Country of origin
United States
Depth
6"
Ethernet Technology
Gigabit Ethernet
Form factor
External
Height
2"
Limited Warranty
Lifetime
Manufacturer
AddOn
Manufacturer Part Number
ADD-GMCP-SX-5SC-ET
Manufacturer Website Address
http://www.addoncomputer.com
Marketing Information
This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-SX(SC) via a 850nm multi-mode fiber (MMF) SC connector which allows distance reach up to 550m. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-SX fiber while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a power sourcing equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port the converter will automatically disable the TX signal to the other media port thus passing through the link fault. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. This converter has a European plug.
- 1Gbs media converter for all of your data transfer needs
- 1 RJ-45 port to SC RJ-45 port to fit your application
- Application and environment tested and guaranteed to work
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
10/100/1000Base-TX
Network Technology
1000Base-SX
Number of Network (RJ-45) Ports
1
Power source
PoE
Product Name
10/100/1000Base-TX(RJ45) to 1000Base-SX(SC) MMF 850nm 550m POE Media Converter
Product Type
Transceiver/Media Converter
Total Number of Ports
2
USB
No
Weight (Approximate)
1 lb
Width
5"
