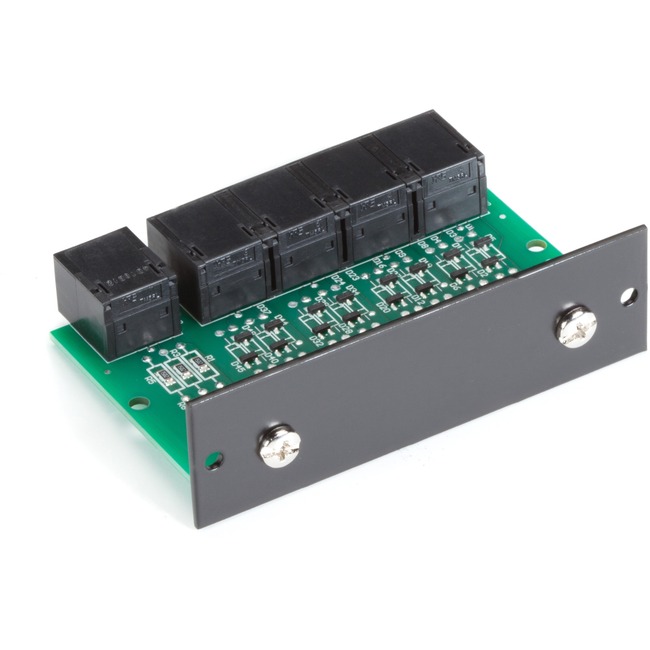

Black Box RS232 Passive Splitter Rackmount Card - RJ45, 4-Port
Black Box RS232 Passive Splitter Rackmount Card - RJ45, 4-Port - Network (RJ-45) - TAA Compliant
| $66.92 | Retail $79.99 |
- Enables four RS-232 terminal devices to share a single modem.
- Transmits data received from the modem to all attached terminal devices.
- Passive, non-powered. Operates transparent to data formats and speeds.
- Only one terminal device can send data to the modem at a time.
- transparent to data formats, rates & protocols.
- RS232 data output by the attached terminal devices is logically OR gated by the modem splitter and then transmitted to the modem.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
112532
Item:
TL421-C
UPC Code:
655093690418
Our Part #
32101529
Condition
New
$66.92EA
$79.99
$79.99
Availability
Only 213 Left In Stock
Product description
Black Box RS232 Passive Splitter Rackmount Card - RJ45, 4-Port - Network (RJ-45) - TAA Compliant
Network (RJ-45) - TAA Compliant
Specifications
UPC Alternates
655093690418 822088119296
Brand Name
Black Box
Country of origin
United States
Depth
6.6"
Environmental Certification
WEEE
Environmental Certification
RoHS 2
Environmentally Friendly
Yes
Height
2.3"
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
TL421-C
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Used with the RS-232 Modem Splitter Rackmount Chassis - 2U (TL400A) this splitter makes it easy and affordable for four terminals to share a single modem.
With this system you can avoid the cost of having to purchase and install multiple modems and multiple modem lines.
Plus it's easy to set up and use. There are no user-configurable switches jumpers or settings on the modem splitter. Simply connect the modem and terminal (DTE) devices to it then power up your modem and terminals as normal.
The splitter's master port connects to your modem using an RJ-45 straight-through cable and the appropriate RJ or DB adapter. Its other ports (Port 1 through Port 4) connect to your DTE terminal devices.
NOTE: Only one terminal device can send data to the modem at a time.
Number of Network (RJ-45) Ports
5
Product Name
RS232 Passive Splitter Rackmount Card - RJ45 4-Port
Product Type
Signal Splitter
Weight (Approximate)
1.59 oz
Width
4.3"
