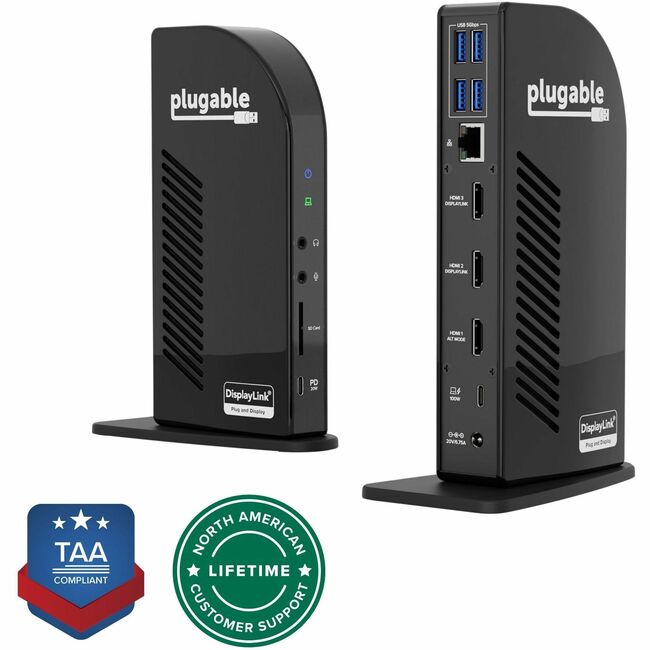

Plugable USB-C Triple Display Docking Station with Charging Support Power Delivery for Specific Windows USB Type-C and Thunderbolt 3 Systems

Plugable USB-C Triple Display Docking Station with Charging Support Power Delivery for Specific Windows USB Type-C and Thunderbolt 3 Systems - (2x HDMI and 1x DVI Outputs, 5x USB Ports, 60W USB PD)
$189.92Retail $349.99
  • USB-C FEATURES-USB-C and Thunderbolt 3 ports can enable features such as USB Alternate Mode (Alt Mode) and USB Power Delivery (PD) charging. Support for these features is determined by your computer manufacturer. See product description for details
  • IMPORTANT NOTES-The full product description has important info regarding requirements and limitations of this dock. USB-C required. Not all devices support all features. No HDCP support. Supports Intel and M1 Macs (macOS 10.14+ with driver installation)
  • TRIPLE DISPLAY DOCK-With a compatible USB-C or Thunderbolt 3 Mac or Windows laptop, or Windows tablet, this dock can charge your device, connect up to 3 monitors, add a Gigabit Ethernet connection, add 3.5mm headphone and microphone jacks, and add multiple USB ports
  • HDMI and DVI/VGA-Two additional video outputs (1x HDMI & 1x DVI/VGA) and Gigabit Ethernet via DisplayLink DL-3900. "Alt Mode" 4K HDMI port supports resolutions up to 3840x2160 4K@30Hz; DisplayLin
By:
Plugable
Manufacturer:
Plugable Technologies
Product ID:
113341
Item:
UD-ULTCDL
UPC Code:
819927010852
Our Part #
3V6250
Condition
New
$189.92EA
$349.99
Availability Only 333 Left In Stock
Great Deals Everyday

You may be also interested

Product description

Plugable USB-C Triple Display Docking Station with Charging Support Power Delivery for Specific Windows USB Type-C and Thunderbolt 3 Systems - (2x HDMI and 1x DVI Outputs, 5x USB Ports, 60W USB PD)
(2x HDMI and 1x DVI Outputs, 5x USB Ports, 60W USB PD)

Specifications

Maximum Power Supply Wattage
60 W
Number of USB Type-A Ports
4
Screen Mode Supported
4K
Supported Resolutions
1920 x 1200
Supported Resolutions
3840 x 2160
UPC Alternates
819927010852
USB Type-C Detail
1 x USB 3.0 Type-C (with PD) to Host
Additional Information
  • USB Ports (Front) | 1 x USB 3.0 Type-A (with BC1.2 1.5A charging support) 1 x USB 3.0 Type-C (with 1.5A Power Delivery)
  • USB Ports (Rear) | 3 x USB 3.0 Type-A (standard 900mA) 1 x USB 3.0 Type-C (with PD) to Host
  • Ethernet | 1 x Gigabit Ethernet Port (Full-duplex required)
  • Audio | 1 x 3.5mm Headphone Out 1 x 3.5mm Audio In
  • Power Adapter | 65W (20V 3.25A)
  • Host Interface | USB-C
  • Cable | USB-C to USB-C
  • Video Output 1 | HDMI 1.4 (USB-C Alt Mode powered from host system graphics chipset) 2K ( 1920�1200 ) @ 60Hz / 4K ( 3840�2160 ) @ 30Hz
  • Video Output 2 | DVI/VGA (DisplayLink-based) 2K ( 1920�1200 ) @ 60Hz
  • Video Output 3 | HDMI 1.4 (DisplayLink-based) 2K ( 1920�1200 ) @ 60Hz
Brand Name
Plugable
Compatibility
https://docs.google.com/spreadsheets/d/10GvIAP2oaBgegyrFbzFrKBG-QuWjU-0ZXXdx02nWoO8/htmlembed?gid=0&range=A1:E999&widget=false&gridlines=true&chrome=false
Connectivity technology
Wired
Country of origin
China
Device Supported
Notebook/Tablet PC
Ethernet Technology
Gigabit Ethernet
HDMI
Yes
Host interface
USB Type C
Limited Warranty
2 Year
Manufacturer
Plugable Technologies
Manufacturer Part Number
UD-ULTCDL
Manufacturer Website Address
http://www.plugable.com
Marketing Information

Instantly turn your Windows or Mac laptop into a multi-monitor desktop-by connecting a single cable-with the Plugable Triple Display USB-C Docking Station (UD-ULTCDL)

Plugable is well known for Docking Station products. Utilizing innovations introduced with USB 3.1 this dock is one of the first to use "Alternate Mode" from the USB-C specifications for one of the display outputs.

This dock is also one of the first to support USB Power Delivery enabling the dock to charge a laptop 2-in-1 or Windows tablet connected to it (up to 60W).

Note: New and innovative products aren't without compatibility concerns it is important to read the information below for details regarding display output types and system requirements. USB-C is required for this docking station it will not work properly when adapted to USB 3.0.

When attached to a fully compatible USB-C or Thunderbolt 3 Windows or Mac system the UD-ULTCDL supports Windows 10 8.x and 7 and macOS 10.14+. Chrome OS Linux and some older macOS versions are not supported.

Charge

  • Up to 60W of USB Power Delivery

If your device supports USB Power Delivery (USB PD) this docking station supports up to 60 watts (60W) of charging to your host device.

This means you won't need to take out the charger that came with your laptop when you're at your desk on supported hosts.

The one USB-C cable from the dock is all you'll need to stay charged and connect all your devices.

Some laptops may require more power than this dock provides (60W). The Dell XPS 15 9550/9560 and Precision 5510/7510 for example will display a warning during boot if connected to a 60W power adapter rather than a Dell 130W power adapter. These systems may still charge but at a slower rate.

Display

  • 1x HDMI 1.4
  • 1x HDMI 1.3
  • 1x DVI

With one USB-C (USB Type-C) cable connected to the dock overcome the limited number of display outputs and ports on your device. This dock connects up to three displays on supported devices.

For USB-C ports that do not support Alternate Mode video output will be limited to displaying through the DisplayLink HDMI and DVI ports.

Connect

  • 4x USB 3.0 Ports
  • 1x USB-C Port
  • 1x Gigabit Ethernet
  • 1x 3.5mm Headphone Jack
  • 1x 3.5mm Microphone Jack

Many laptops are removing or drastically reducing the number of ports available.

Get back your USB audio and network connections or just make it easier to leave things plugged in at your main work area and reconnect them with one cable from the dock.

More from the Manufacturer

Number of Displays Supported
3
Number of HDMI Outputs
2
Operating System Supported
Windows
Operating System Supported
Linux
Operating System Supported
macOS
Operating System Supported
Chrome OS
Package Contents
  • USB-C Triple Display Docking Station
  • 1 x USB-C to USB-C Cable
  • 1 x DVI to VGA Adapter
  • 1 x 65W Power Adapter
Packaged Quantity
1
Product Name
USB-C Triple Display Docking Station
Product Type
Docking Station
Total Number of USB Ports
5
