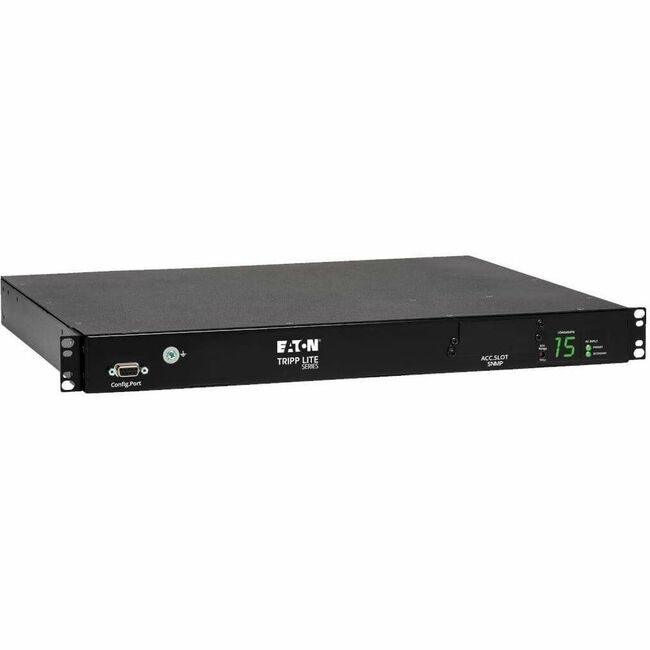

Tripp Lite PDU Metered ATS 2/2.4KW 200/240V 10 C13 2 C14 3.6M Cords 1URM
Tripp Lite PDU Metered ATS 2/2.4KW 200/240V 10 C13 2 C14 3.6M Cords 1URM - IEC 60320 C14 - 10 x IEC 60320 C13 - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC - 2.40 kVA - 1U/2U - Horizontal Rackmount
| $471.01 | Retail $694.52 |
- Primary and Secondary Inputs for Power Redundancy
- Enables redundant power for network devices with non-redundant power supply configurations
- Dual 3.6 m input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources
- 10 C13 outlets
- Automatic Transfer Switching
- Dynamic solid-state (TRIAC) automatic transfer switching
- Switches to secondary power source if primary source fails or becomes unstable
- 2-5 ms transfer time ensures uninterrupted operation of connected equipment
- Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source
- Digital Load Meter
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
113764
Item:
PDUMH15HVAT
UPC Code:
037332197900
Our Part #
7U0434
Condition
New
$471.01EA
$694.52
$694.52
Availability
Only 78 Left In Stock
Product description
Tripp Lite PDU Metered ATS 2/2.4KW 200/240V 10 C13 2 C14 3.6M Cords 1URM - IEC 60320 C14 - 10 x IEC 60320 C13 - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC - 2.40 kVA - 1U/2U - Horizontal Rackmount
IEC 60320 C14 - 10 x IEC 60320 C13 - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC - 2.40 kVA - 1U/2U - Horizontal Rackmount
Specifications
Mounting Orientation
Horizontal
Plug/Connector Detail
2 x IEC 60320 C14
Power Rating (Watt)
2400 W
Receptacle Detail
10 x IEC 60320 C13
UPC Alternates
037332197900
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
14.4"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
1.7"
Input current
10 A
Input voltage
230 V AC
Input Voltage Range
200 V AC - 240 V AC
Limited Warranty
2 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDUMH15HVAT
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The PDUMH15HVAT 2-2.4kW Single-Phase 200-240V ATS/Metered PDU enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms it mounts in 1U of space in EIA-standard 19-inch racks and features 10 C13 outlets.
Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200-240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in slot supports the optional SNMPWEBCARD and WEBCARDLX (sold separately) which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring configuration outlet control and notifications via web browser SSH telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs.
Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200-240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in slot supports the optional SNMPWEBCARD and WEBCARDLX (sold separately) which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring configuration outlet control and notifications via web browser SSH telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs.
Mount Type
Rack-mountable
Output voltage
208 V AC
Output voltage
240 V AC
Output voltage
220 V AC
Output voltage
200 V AC
Package Contents
- PDUMH15HVAT 10-Outlet PDU
- 10 x C14 plug lock inserts
- 2 x C13 to C14 power cords 3.6 m (11.8 ft.)
- 2 x Mounting brackets horizontal
- 2 x Mounting brackets vertical
- 6 x Screws
- Owner's manual
Packaged Quantity
1
Plug/Connector Type
IEC 60320 C14
Product Name
PDUMH15HVAT 10-Outlet PDU
Product Type
PDU
Protection Type
Overload Protection
Rack Height
1U/2U
Receptacle Type
IEC 60320 C13
Weight (Approximate)
10.32 lb
Width
17.3"
