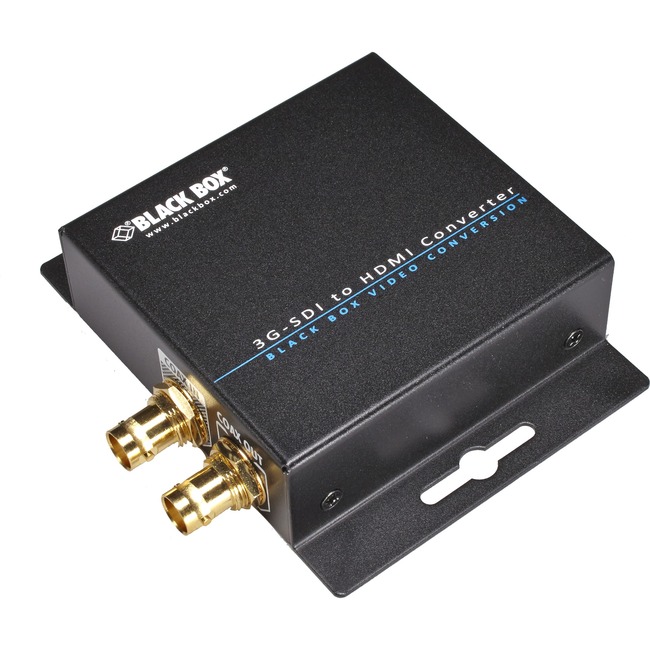

Black Box 3G-SDI/HD-SDI to HDMI Converter
Black Box 3G-SDI/HD-SDI to HDMI Converter - Functions: Video Conversion - 1920 x 1080 - SDI - Wall Mountable - TAA Compliant
| $228.50 | Retail $260.08 |
- Converts serial digital interface video for output to an HDMI display.
- Supports 3G-SDI (3 Gbps), HD-SDI, and SD-SDI input on coax BNC.|For adding an HDMI screen to a high-end broadcasting or AV application.|Also has SDI loopout for a local SDI monitor or daisychaining.
- Handles higher SDI bit rates of 2.97 Gbps (3G-SDI).
- Autodetects SDI video standard on its 75-ohm coax input.
- Supports 1080p HDMI video with Deep Color depth.
- Reclocks SDI data for low-jitter video output.
- Provides up to eight-channel audio support.
- No software or driver installation required.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
118905
Item:
VSC-SDI-HDMI
UPC Code:
700604209754
Our Part #
RP6652
Condition
New
$228.50EA
$260.08
$260.08
Availability
Only 3 Left In Stock
Product description
Black Box 3G-SDI/HD-SDI to HDMI Converter - Functions: Video Conversion - 1920 x 1080 - SDI - Wall Mountable - TAA Compliant
Functions: Video Conversion - 1920 x 1080 - SDI - Wall Mountable - TAA Compliant
Specifications
UPC Alternates
700604209754 822088062400
Brand Name
Black Box
Certifications & Standards
CE
Country of origin
Taiwan
Depth
3.3"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Wall Mountable
Functions
Video Conversion
Height
1.2"
Limited Warranty
3 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
VSC-SDI-HDMI
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Essential for any professional video and broadcast engineering application this handy converter enables you to connect a 3G-SDI HD-SDI or SD-SDI source for output on an HDMI display. This way you can repurpose an ordinary LCD for video monitoring in your SDI setup.
The affordably priced device provides digitally pure SDI-to-HDMI conversion ensuring no loss in the conversion for both video and audio signaling.
Use it in a TV studio post-production digital cinema or AV application where you need to show uncompressed digital video from professional video equipment on a consumer-grade HDTV.
Even better it features SDI loop-out via a second coax connector. This way you can display a 3G-SDI signal from a camera on an HDMI panel while simultaneously outputting the 3G-SDI signal to a second SDI device for local monitoring. Or use the loop-out to daisy-chain to additional SDI equipment.
The 3G-SDI/HD-SDI to HDMI Converter processes up to eight channels of audio including 7.1-channel or 5.1-channel audio in addition to HDMI video. If your SDI source device supplies multiple channels of surround sound or Dolby® TrueHD audio for example the converter outputs the same number of channels for the HDMI connector's pinning.
For both older and newer SDI interfaces the converter processes bit rates from 270 Mbps up to 2.97 Gbps.
Cable equalization helps compensate for loss when connecting the converter to an SDI source at maximum standard distances*.
Maximum Data Transfer Rate
23.76 Gbit/s
Maximum resolution
1920 x 1080
Number of HDMI Outputs
1
Package Contents
- 3G-SDI/HD-SDI to HDMI Converter
- AC Power Adapter
- Wallmount Ears
- Screws
- User Manual
Product Name
3G-SDI/HD-SDI to HDMI Converter
Product Type
Signal Converter
Weight (Approximate)
3.70 lb
Width
3.1"
