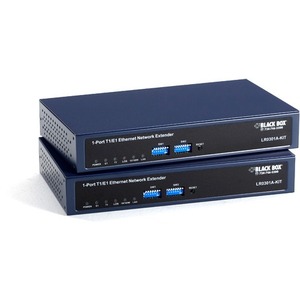

Black Box LR0300 Series Managed T1/E1 Fast Ethernet Extender Kit - 1km, 2-Mbps
Black Box LR0300 Series Managed T1/E1 Fast Ethernet Extender Kit - 1km, 2-Mbps
| $1,005.65 | Retail $1,139.99 |
- Kit includes two extenders.
- Bridges 10BASE-T/100BASE-TX Ethernet across a single T1/E1 line.
- Support speeds up to 1.544 Mbps on T1 and 2.048 Mbps on E1.
- Supports Fractional E1/T1 in framed and unframed mode
- Autosensing, autonegotiating 10-/100-Mbps LAN connections.
- Auto MDI/MDI-X means you never need a crossover cable on the Ethernet side.
- DIP switches make configuration easy.
- Line build-out (LBO) capability.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
120045
Item:
LR0301A-KIT
UPC Code:
093007819768
Our Part #
31162800
Condition
New
$1,005.65EA
$1,139.99
$1,139.99
Availability
Only 4 Left In Stock
Product description
Black Box LR0300 Series Managed T1/E1 Fast Ethernet Extender Kit - 1km, 2-Mbps
Specifications
UPC Alternates
093007819768 700604248128 822088077497
Brand Name
Black Box
Dimensions
- 1.7" Height x 9.8" Width x 5.9" Depth
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
LR0301A-KIT
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
The pair of extenders included with this kit act as a bridge enabling you to link two Ethernet networks across T1/E1. Because you're using leased lines provided by your telco there are no distance limitations - you can extend your network anywhere you can get a T1 line.
Ethernet Extender Kit 1 Port T1/E1. Extends 1 port 10/100Mbps Ethernet RJ45 over T1 or E1 interface. The kit includes 2 extenders for near-end (local) far-end (remote) deployment. Typical applications include Enterprise LAN extension campus LAN expansion. This kit includes a pair of auto-rate Ethernet extenders using a standard T1/E1 interface. Devices include internal 110-220VAC power supplies. The management interface is a console port.
The pair of extenders included with this kit act as a bridge enabling you to link two Ethernet networks across T1/E1. Because you're using leased lines provided by your telco there are no distance limitations - you can extend your network anywhere you can get a T1 line. The T1/E1 Ethernet Network Extender converts protocols and data from Fractional T1/E1 to 10BASE-T/100BASE-TX Ethernet and supports both framed and unframed modes with line codes.
Package Contents
- 2 x Extenders
- 2 x Power cords
- 2 x CAT5 Ethernet cables
- 2 x T1/E1 RJ-48 to Y-connector cables
- 1 x CD containing the user manual
Product Name
LR0300 Series Managed T1/E1 Fast Ethernet Extender Kit - 1km 2-Mbps
Product Type
Extended Port Kit
