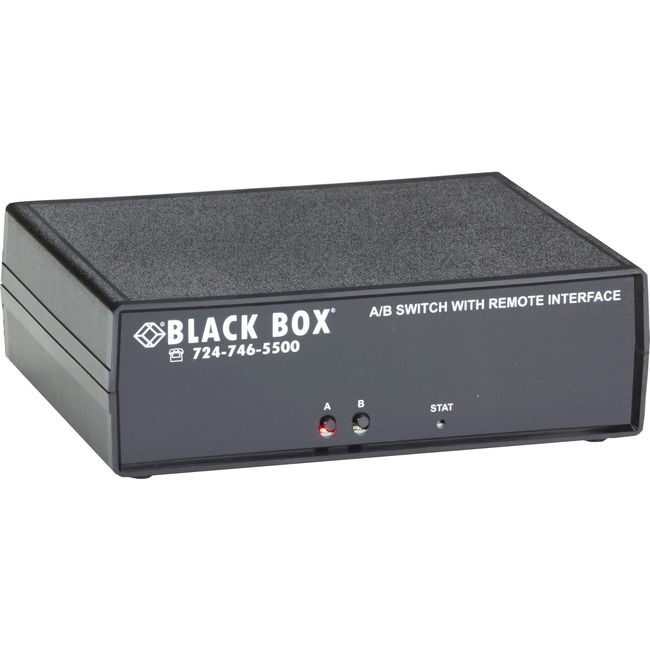

Black Box Remotely Controlled Layer 1 A/B Switch - DB9
Black Box Remotely Controlled Layer 1 A/B Switch - DB9 - 3 x Serial Port
| $421.37 | Retail $455.95 |
- Switch ports are transparent to data rates, formats, and protocols and can handle speeds up to 10 Mbps.
- Manual control of the switch port connection state is supported through pushbutton switches on the front of the unit.
- The connection state will be maintained if power fails or is removed.
- Connecting (shorting) input A (pin 1) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the A position.
- Connecting (shorting) input B (pin 3) to Ground (pin 2) for a minimum of approximately 100 msec will cause the unit to switch to the B position.
- If desired, the A or B control input can remain connected to the Ground input, which will disable all other control interfaces including the front panel pushbutton switches from being able to switch connection states of the A/B Switch.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
120048
Item:
SW1047A
UPC Code:
013269122703
Our Part #
43211601
Condition
New
$421.37EA
$455.95
$455.95
Availability
Only 25 Left In Stock
Product description
Black Box Remotely Controlled Layer 1 A/B Switch - DB9 - 3 x Serial Port
3 x Serial Port
Specifications
Input Connector Type
Serial
Number of Serial Ports
3
UPC Alternates
013269122703 822088118213
Additional Information
- Power Input: 100-240 VAC 50-60 Hz autosensing; Output: 5 VDC
- Switching Speed Typical: 5 msec; Maximum: 10 msec
Connectors:
- A/B switch ports: (3) DB9 F
- Serial control port: DB9 F
- Remote control/status port: (1) 6-position terminal block
- Power: (1) 2.1 x 5.5-mm power input
Brand Name
Black Box
Certifications & Standards
- CE
- FCC
Country of origin
United States
Depth
8.1"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Height
2.5"
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
SW1047A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Product Condition
New
Product Name
Remotely Controlled Layer 1 A/B Switch - DB9
Product Type
Serial Switchbox
Weight (Approximate)
4 lb
Width
6.3"
