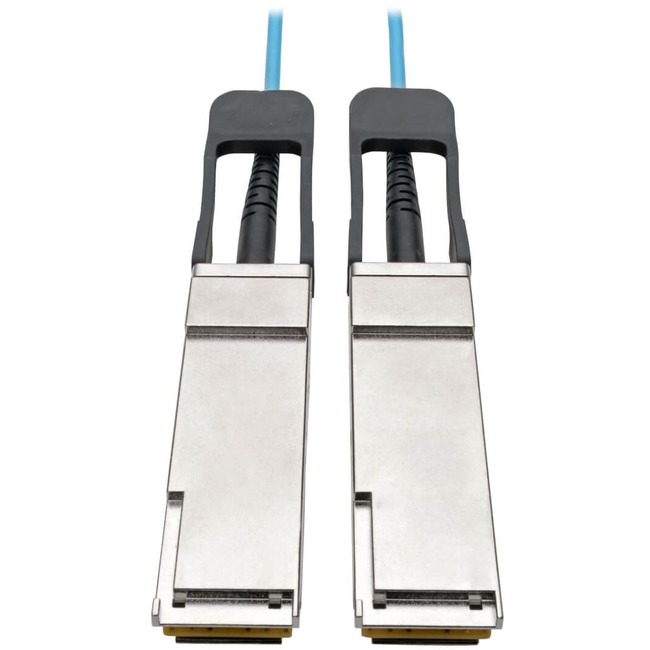

Tripp Lite QSFP+ to QSFP+ Active Optical Cable - 40Gb, AOC, M/M, Aqua, 2 m (6.6 ft.)
Tripp Lite QSFP+ to QSFP+ Active Optical Cable - 40Gb, AOC, M/M, Aqua, 2 m (6.6 ft.) - 6.60 ft Fiber Optic Network Cable for Switch, Server, Router, Network Device - First End: 1 x QSFP+ Male Network - Second End: 1 x QSFP+ Male Network - 40 Gbit/s - 50/125 µm - Aqua
| $296.41 | Retail $416.00 |
- Ideal for Cisco switches, servers, routers and other high-end networking equipment
- Combines 4 full-duplex 10 Gbps SFP+ lanes for an aggregated 40 Gbps rate
- Multi-platform support for 40 Gb Ethernet, InfiniBand, Fibre Channel and PCIe
- Ergonomic push/pull tabs allow easy one-handed connection and disconnection
- Compliant with QSFP+ MSA and SFF-8436 architecture for full QSFP compatibility
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
123879
Item:
N28F-02M-AQ
UPC Code:
037332225511
Our Part #
5ZV367
Condition
New
$296.41EA
$416.00
$416.00
Availability
Only 100 Left In Stock
Product description
Tripp Lite QSFP+ to QSFP+ Active Optical Cable - 40Gb, AOC, M/M, Aqua, 2 m (6.6 ft.) - 6.60 ft Fiber Optic Network Cable for Switch, Server, Router, Network Device - First End: 1 x QSFP+ Male Network - Second End: 1 x QSFP+ Male Network - 40 Gbit/s - 50/125 µm - Aqua
6.60 ft Fiber Optic Network Cable for Switch, Server, Router, Network Device - First End: 1 x QSFP+ Male Network - Second End: 1 x QSFP+ Male Network - 40 Gbit/s - 50/125 µm - Aqua
Specifications
Connector on First End Details
1 x QSFP+ Network - Male
Connector Type on First End
QSFP+ Network - Male
UPC Alternates
037332225511
Brand Name
Tripp Lite
Cable length
6.60 ft
Cable type
Fiber Optic
Color
Aqua
Connector on First End
1 x QSFP+ Male IEEE 802.3ba Network
Connector on First End
QSFP+ Male Network
Core/Cladding Diameter
50/125 µm
Country of origin
China
Data transfer rate
40 Gbit/s
Device Supported
Network Device
Device Supported
Server
Device Supported
Switch
Device Supported
Router
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
Active
Features
EMI Protection
Fiber Optic Mode
Multi-mode
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N28F-02M-AQ
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
QSFP+ Fiber Cable Connects Network Equipment at Speeds up to 40 Gbps
This two-meter (6.6-foot) QSFP+ Active Optical Cable (AOC) provides next-generation performance by combining four full-duplex 10 Gbps SFP+ channels into one affordable high-density package. Each male connector contains four fiber optic transceivers each capable of data transfer speeds up to 10 Gbps. Together the N28F-02M-AQ provides an aggregated speed up to 40 Gbps making it ideal for switches servers routers and other high-end networking equipment.
Push/Pull Tab Connectors Provide Quick Easy Connections
The hot-pluggable QSFP+ connectors include ergonomic push/pull tabs which are easily accessible in high-density applications and make the cable easy to install and remove with just one hand.
Engineered and Optimized for Bandwidth-Intense Applications
This QSFP+ to QSFP+ cable integrates a 40 Gbps Ethernet-optimized 38-position "board as connector" design. Die-cast zinc connectors offer superior EMI (electromagnetic interference) resistance and reduced crosstalk. The connectors have also been tested to meet stringent insertion loss standards. The QSFP+ optical cable's 8-pair wire technology is optimized for 40GBASE-CR4 6G SAS Fibre Channel PCIe SONET and InfiniBand applications. The plenum-rated OFNP jacket is designed for connecting network components in drop ceiling walls and ducts.
Cisco-Compatible Cable Fully Compliant with the Latest Standards
This QSFP+ cable is fully compliant with the latest QSFP+ Multi-Source Agreement (MSA) IEEE 802.3ba standards and industry-standard SFF-8436 specifications. It is compatible with all QSFP and QSFP+ ports and Cisco's QSFP-H40G-AOC1M cable.
Product color
Aqua
Product Name
QSFP+ to QSFP+ Active Optical Cable - 40Gb AOC M/M Aqua 2 m (6.6 ft.)
Product Type
Network Cable
