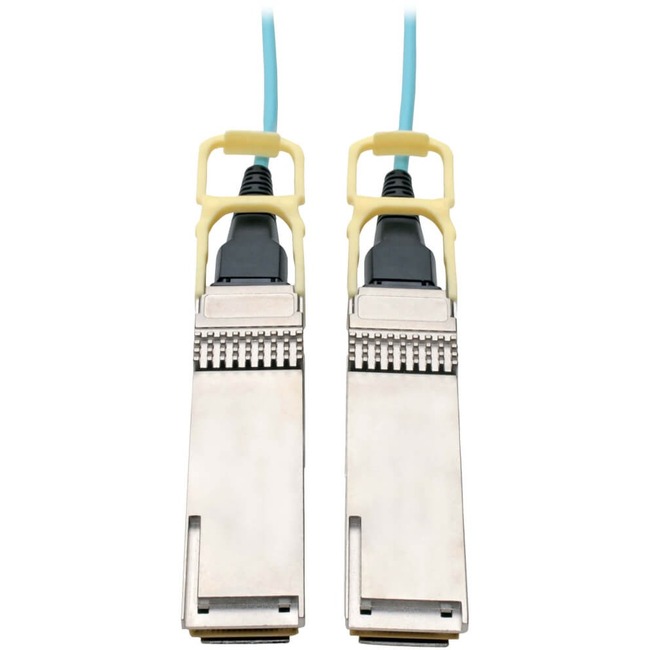

Tripp Lite QSFP28 to QSFP28 Active Optical Cable - 100GbE, AOC, M/M, Aqua, 20 m (65.6 ft.)
Tripp Lite QSFP28 to QSFP28 Active Optical Cable - 100GbE, AOC, M/M, Aqua, 20 m (65.6 ft.) - 66 ft Fiber Optic Network Cable for Switch, Server, Router, Network Device - First End: 1 x QSFP28 Male Network - Second End: 1 x QSFP28 Male Network - 100 Gbit/s - 50/125 µm - Aqua
| $966.91 | Retail $1,427.20 |
- Combines 4 full-duplex 25 Gbps SFP lanes for an aggregated 100 Gbps rate
- Ideal for switches, servers, routers and other high-end networking equipment
- Multi-platform support for 100 Gb Ethernet, InfiniBand, Fibre Channel and PCIe
- Ergonomic push/pull tabs allow easy one-handed connection and disconnection
- Compliant with QSFP28 MSA and SFF-8636 architecture for full QSFP compatibility
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
123885
Item:
N28H-20M-AQ
UPC Code:
037332225641
Our Part #
5ZV380
Condition
New
$966.91EA
$1,427.20
$1,427.20
Availability
Only 20 Left In Stock
You may be also interested
Product description
Tripp Lite QSFP28 to QSFP28 Active Optical Cable - 100GbE, AOC, M/M, Aqua, 20 m (65.6 ft.) - 66 ft Fiber Optic Network Cable for Switch, Server, Router, Network Device - First End: 1 x QSFP28 Male Network - Second End: 1 x QSFP28 Male Network - 100 Gbit/s - 50/125 µm - Aqua
66 ft Fiber Optic Network Cable for Switch, Server, Router, Network Device - First End: 1 x QSFP28 Male Network - Second End: 1 x QSFP28 Male Network - 100 Gbit/s - 50/125 µm - Aqua
Specifications
UPC Alternates
037332225641 818239180000 818242420520
Brand Name
Tripp Lite
Cable length
66 ft
Cable type
Fiber Optic
Color
Aqua
Connector on First End
1 x QSFP28 Male IEEE 802.3bm Network
Connector on First End
QSFP28 Male Network
Core/Cladding Diameter
50/125 µm
Country of origin
China
Data transfer rate
100 Gbit/s
Device Supported
Router
Device Supported
Network Device
Device Supported
Server
Device Supported
Switch
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
EMI Protection
Features
Active
Fiber Optic Mode
Multi-mode
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N28H-20M-AQ
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
QSFP28 Cable Connects Network Equipment at Speeds up to 100 Gbps
This 20-meter (65.6-foot) QSFP28 Active Optical Cable (AOC) provides next-generation performance by combining four full-duplex 25 Gbps SFP channels into one affordable high-density package. Each male connector contains four independent 850 nm VCSEL-based transmitters and four independent receivers using PIN photo detectors inside. Each lane supports data transfer speeds up to 25 Gbps. Together the N28H-20M-AQ provides an aggregated speed up to 100 Gbps making it ideal for switches servers routers and other high-end networking equipment.
Push/Pull Tab Connectors Provide Quick Easy Connections
The hot-pluggable QSFP28 connectors include ergonomic push/pull tabs which are easily accessible in high-density applications and make the cable easy to install and remove with just one hand.
Engineered and Optimized for Bandwidth-Intense Applications
This QSFP28 active optical cable integrates a 100 Gbps Ethernet-optimized 38-position "board as connector" design. Die-cast zinc connectors offer superior EMI (electromagnetic interference) resistance and reduced crosstalk. The connectors have also been tested to meet stringent insertion loss standards. The cable is suitable for high-speed short-reach dense data connections such as 100GBASE-SR4 Ethernet PCIe Fibre Channel and InfiniBand applications. The plenum-rated OFNP jacket is designed for connecting network components in drop ceiling walls and ducts.
Fully Compliant and Compatible with the Latest Standards
This cable is fully compliant with the latest QSFP28 Multi-Source Agreement (MSA) IEEE 802.3bm standards and industry-standard SFF-8636 specifications. It is compatible with all QSFP and QSFP+ ports.
Product Name
QSFP28 to QSFP28 Active Optical Cable - 100GbE AOC M/M Aqua 20 m (65.6 ft.)
Product Type
Network Cable
