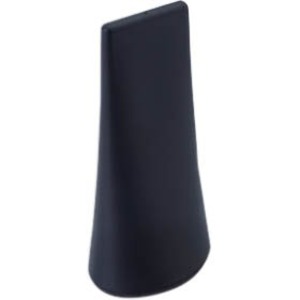

Taoglas Shanghai Magnetic Mount 698-2700MHz LTE Antenna
Taoglas Shanghai Magnetic Mount 698-2700MHz LTE Antenna - 698 MHz to 2700 MHz - Cellular NetworkMagnetic/Adhesive - Omni-directional - SMA Connector
| $20.42 |
- Receive signals from multiple directions with this omnidirectional antenna
- With its strong connection and faster transfer speeds, this cellular network provides the best reception
- Can be mounted as magnetic/adhesive
Manufacturer:
Taoglas
Product ID:
124023
Item:
GA.130.201111
Our Part #
6GZ750
Condition
New
$20.42EA
Availability
Only 5 Left In Stock
Product description
Taoglas Shanghai Magnetic Mount 698-2700MHz LTE Antenna - 698 MHz to 2700 MHz - Cellular NetworkMagnetic/Adhesive - Omni-directional - SMA Connector
698 MHz to 2700 MHz - Cellular NetworkMagnetic/Adhesive - Omni-directional - SMA Connector
Specifications
Directivity
Omni-directional
Operating Frequency Range
698 MHz to 2700 MHz
Application/Usage
Cellular Network
Connector Type
SMA
Country of origin
Taiwan
Depth
2.09"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Magnetic/Adhesive
Height
5.63"
Manufacturer
Taoglas
Manufacturer Part Number
GA.130.201111
Manufacturer Website Address
http://www.taoglas.com
Marketing Information
The Shanghai GA.130 4G magnetic wideband cellular antenna delivers stable omni-directional gain and highest efficiencies across all common 4G 3G & 2G global cellular bands from 698 MHz to 2.7 GHz. This sculpted high performing antenna can be used for all cellular devices and will not require changing antennas when deploying from most major markets worldwide such as 4G to 3G. This antenna can either be mounted magnetically on a metal surface or via the 3M adhesive if non-metal surfaces.
A reliable return loss of <10dB when mounted on a metal plate ensures the antenna complies with the industry standards set by module makers and networks worldwide.
Taoglas recommends using the antenna with 2m cable length or less and can provide customized connectors and cable lengths upon customer request. The strong magnetic base is extremely stable and robust using only high-quality neodymium magnets for a secure magnetic mount to ensure a high pull force to disengage.
An adhesive mount GA.131.201111 and permanent mount option GA.132.201111 are also available upon request. For further information please contact your regional Taoglas sales office for support.
A reliable return loss of <10dB when mounted on a metal plate ensures the antenna complies with the industry standards set by module makers and networks worldwide.
Taoglas recommends using the antenna with 2m cable length or less and can provide customized connectors and cable lengths upon customer request. The strong magnetic base is extremely stable and robust using only high-quality neodymium magnets for a secure magnetic mount to ensure a high pull force to disengage.
An adhesive mount GA.131.201111 and permanent mount option GA.132.201111 are also available upon request. For further information please contact your regional Taoglas sales office for support.
Product Model
GA.130
Product Name
Shanghai Magnetic Mount 698-2700MHz LTE Antenna
Product Type
Antenna
Weight (Approximate)
5.11 oz
Width
2.83"
