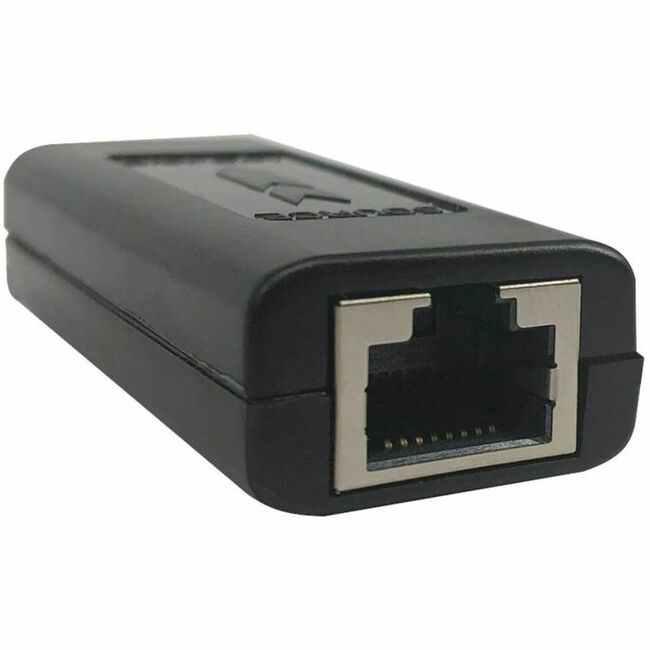

Tripp Lite Over Cat6 Repeater for B127A Extenders 4K60Hz HDR 4:4:4 PoC TAA

Features

HDMI Repeater Ideal for Extending 4K Digital Signage Video in Schools and Restaurants
This remote repeater is recommended for video presentations in conference rooms schools trade shows meeting facilities houses of worship retail settings hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127A-010-H connects between a transmitter and transceiver to extend 4K signals up to 400 feet via user-supplied Cat6 cabling.

Boosts Signal Distance in a Daisy-Chain Installation
This signal booster joins Tripp Lite's B127A-111-BHTH extender kit and B127A-110-BH transceivers to create daisy chains. Insert the B127A-010-H between the transmitter and the first transceiver in the chain to extend the first link up to 400 feet. When the booster is used with the maximum four transceivers the installation can reach 1090 feet from the transmitter to the last transceiver in the chain. Note: B127A-010-H will only work when used in the first link of the daisy-chain installation.

Works with All Tripp Lite B127A-Series Models
The B127A-010-H boosts the 4K audio/video signals in any application using a B127A model including HDMI DisplayPort and USB-C applications. When used with HDMI models it supports 3840 x 2160 (4K x 2K) resolutions at 60 Hz as specified by HDMI 2.0 with 4:4:4 chroma subsampling. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. When used with DisplayPort or USB-C models it supports 3840 x 2160 at 60 Hz DisplayPort 1.2 and 4:4:4 color.

Built-In PoC Technology Provides Transceiver Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the repeater over Cat6 cable. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the repeater where needed without worrying about finding a nearby AC outlet.

Plug-and-Play Operation for Quick Setup and Immediate Use
The repeater works right out of the box with no software or external power required. Use Cat6 patch cable (such as Tripp Lite's N202-Series) to connect its RJ45 ports to both the transmitter and transceiver.

TAA-Compliant for GSA Schedule Purchases
The B127A-010-H is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Typical Applications

• Boost the distance of a Tripp Lite B127A-Series extender/receiver kit to a total of 400 ft. when additional signal distance is required
• Extend video signals from one room to another using Cat6 cable which can pass through conduit to meet building codes
• Improve the line of sight for digital signage in a hotel restaurant theater house of worship trade show or other location

System Requirements

• Source device with HDMI output (Blu-ray player cable box laptop)
• Tripp Lite B127A-Series transmitter transceiver and/or extender kit

• B127A-010-H HDMI Repeater
• Owner's Manual
