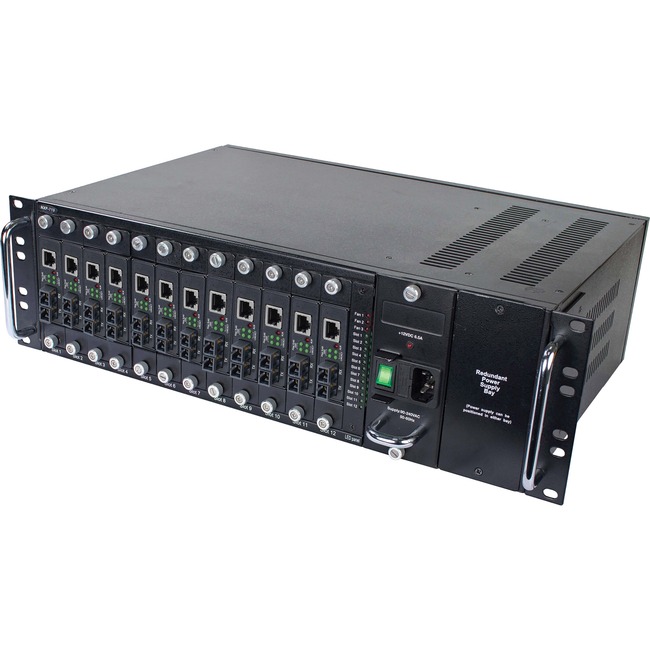

Tripp Lite N785-CH12 Media Converter Chassis
Tripp Lite N785-CH12 Media Converter Chassis - 2 x Number of Power Supplies Supported - 1 x Number of Power Supplies Installed - 12 Slot - 3U - Rack-mountable, Surface Mountable, Desktop, Wall Mount
| $578.45 |
- Accepts up to 12 select Tripp Lite media converters, including SC, ST and SFP types
- Rear fans keep equipment cool and connect to front LEDs for easy troubleshooting
- Compatible with primary and redundant DC or AC power supplies (AC supply included)
- On/off trigger guard helps prevent the power switch from being activated by accident
- Flexible installation options include desktop, wall and 3U rack with included hardware
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
126507
Item:
N785-CH12
UPC Code:
037332268600
Our Part #
00GG36
Condition
New
$578.45EA
Availability
Only 40 Left In Stock
Product description
Tripp Lite N785-CH12 Media Converter Chassis - 2 x Number of Power Supplies Supported - 1 x Number of Power Supplies Installed - 12 Slot - 3U - Rack-mountable, Surface Mountable, Desktop, Wall Mount
2 x Number of Power Supplies Supported - 1 x Number of Power Supplies Installed - 12 Slot - 3U - Rack-mountable, Surface Mountable, Desktop, Wall Mount
Specifications
Compatible Rack Unit
3U
Number of Power Supplies Installed
1
Number of Power Supplies Supported
2
Power Supply Installed
Yes
Shipping Depth
24.06"
Shipping Height
13.90"
Shipping Width
16.69"
UPC Alternates
037332268600
Brand Name
Tripp Lite
Compatibility
Tripp Lite Media Converters:
- N784-H01-SCMM
- N784-H01-STMM
- N784-H01-SCSM
- N785-H01- SCMM
- N785-H01-SCSM
- N785-H01-SFP
Country of origin
Taiwan
Depth
5.2"
Form factor
Rack-mountable
Form factor
Wall Mount
Form factor
Surface Mountable
Form factor
Desktop
Height
11.4"
Input voltage
230 V AC
Input voltage
120 V AC
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N785-CH12
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Houses and powers up to 12 media converters to help you create customized copper-to-fiber or copperto-copper installations.
Features | House Organize and Power Up to 12 Tripp Lite Media Converters
This media converter chassis accommodates as many as 12 Tripp Lite N784-H and N785-H multimedia converters including SC ST and SFP fiber types. You can easily install the media converters in the chassis' input slots using the included mounting brackets and hardware to create a variety of copper-tofiber or copper-to-copper installations including singlemode multimode and open SFP port converters. The N785-CH12 is compatible with N784-H01-SCMM N784-H01-STMM N784-H01-SCSM N785-H01- SCMM N785-H01-SCSM and N785-H01-SFP converters.
Works with DC and AC Power Supplies
The N785-CH12 is compatible with both DC and AC power supplies including the preinstalled N785- CH75W-AC with six-foot (1.8-meter) power cord NEMA 5-15P input and preinstalled glass-tube fuse (two spare fuses are also included). A second power supply may be installed to provide redundant power to the chassis and avoid network downtime. A trigger guard helps prevent the power switch from being turned off accidentally.
Rear Fans Help Prevent Overheating
Three fans built into the rear of the chassis draw air inward to help keep the media converters cool. You may periodically clean the fans by removing the panel assembly.
LEDs Keep You Informed at a Glance
Green LEDs on the front Status Monitoring Panel indicate when a media converter has been correctly installed in each input slot. These LEDs will not illuminate if an input slot is empty or if power is not being properly supplied. Three red LEDs let you know the cooling fans are functioning properly. Another red LED informs you that the chassis is receiving power.
Flexibility in Installation Gives You Options
The N785-CH12 mounts into 3U of space in your EIA-standard 19-inch rack using the included hardware. It can also rest flat on any desktop or mount on a wall with the use of a shelf (not included) that is securely mounted to a suitable structure. The shelf must support at least 33 pounds (15 kilograms). It should not only be large enough to accommodate the chassis but also allow sufficient space for adequate ventilation on all sides.
Features | House Organize and Power Up to 12 Tripp Lite Media Converters
This media converter chassis accommodates as many as 12 Tripp Lite N784-H and N785-H multimedia converters including SC ST and SFP fiber types. You can easily install the media converters in the chassis' input slots using the included mounting brackets and hardware to create a variety of copper-tofiber or copper-to-copper installations including singlemode multimode and open SFP port converters. The N785-CH12 is compatible with N784-H01-SCMM N784-H01-STMM N784-H01-SCSM N785-H01- SCMM N785-H01-SCSM and N785-H01-SFP converters.
Works with DC and AC Power Supplies
The N785-CH12 is compatible with both DC and AC power supplies including the preinstalled N785- CH75W-AC with six-foot (1.8-meter) power cord NEMA 5-15P input and preinstalled glass-tube fuse (two spare fuses are also included). A second power supply may be installed to provide redundant power to the chassis and avoid network downtime. A trigger guard helps prevent the power switch from being turned off accidentally.
Rear Fans Help Prevent Overheating
Three fans built into the rear of the chassis draw air inward to help keep the media converters cool. You may periodically clean the fans by removing the panel assembly.
LEDs Keep You Informed at a Glance
Green LEDs on the front Status Monitoring Panel indicate when a media converter has been correctly installed in each input slot. These LEDs will not illuminate if an input slot is empty or if power is not being properly supplied. Three red LEDs let you know the cooling fans are functioning properly. Another red LED informs you that the chassis is receiving power.
Flexibility in Installation Gives You Options
The N785-CH12 mounts into 3U of space in your EIA-standard 19-inch rack using the included hardware. It can also rest flat on any desktop or mount on a wall with the use of a shelf (not included) that is securely mounted to a suitable structure. The shelf must support at least 33 pounds (15 kilograms). It should not only be large enough to accommodate the chassis but also allow sufficient space for adequate ventilation on all sides.
Package Contents
- N785-CH12 Media Converter Chassis
- Power Supply with 6 ft. Power Cord NEMA 5-15P Plug and Glass-tube Fuse (Input: 90-240V 50/60 Hz 2A; Output: 12V 6.5A)
- 2 x Mounting Brackets
- 24 x Mounting Panels
- 2 x Rack-mount Kits
- 48 x M3 6x5 mm Screws
- 10 x F3 6x5 mm Screws
- 6 x M5 16x10 mm Screws
- 4 x M4 10x8 mm Screws
- 2 x Spare Glass-tube Fuses
- Owner's Manual
Product Name
N785-CH12 Media Converter Chassis
Product Type
Media Converter Chassis
Shipping Weight (Approximate)
24.25 lb
Total Number of Expansion Slots
12
Width
16.9"
