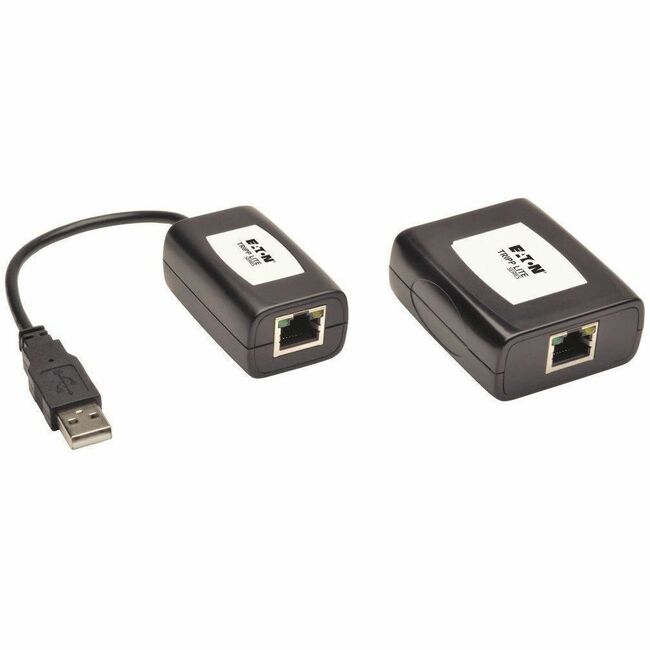

Tripp Lite Extended Port Kit

• Receiver Unit Dimensions (hwd / cm.) 2.4 x 6.1 x 5.18
• Transmitter Unit Dimensions (hwd / cm.) 2.4 x 5.5 x 3.45

Connects Your Computer or Laptop to a USB Device up to 164 ft. (50 m) Away
This plug-and-play extender kit is ideal for connecting your home or office computer's USB-A port to a printer webcam external hard drive or other USB peripheral located up to 164 feet (50 meters) away. The B203-101-PNPINT includes a local transmitter and a remote receiver. It sends USB signals over user-supplied Cat5e/6 cabling (such as Tripp Lite's N202-Series Cat6 Ethernet cables).

With Great Distance Comes Great Flexibility
By extending the USB connection beyond the standard 16-foot (4.88 meters) distance limitation to 164 feet (50 meters) the B203-101-PNPINT provides workstation flexibility to place your computer and its connected USB peripheral where they are best suited even in separate rooms. This extender kit supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 technology allowing you to connect legacy devices. No network connectivity is needed.

Built-In USB Cable Offers a Fast Easy Plug-and-Play Connection
Just connect the transmitter's USB cable to your computer's USB-A port connect a USB peripheral to the receiver's USB-A port and connect the two units with Cat5e/6 cable (sold separately). No drivers or other software is needed. The included external power supply connects to the receiver. It comes with four international plug adapters (North America United Kingdom Europe Australia) so you can connect to a wall outlet UPS PDU or surge protector almost anywhere.

TAA-Compliant for GSA Schedule Purchases
The B203-101-PNPINT is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

• Transmitter
• Receiver
• External power supply (Input: 100-240V 50/60 Hz 0.35A; Output: 5V 2A)
• 4 x International plug adapters (North America U.K. Europe Australia)
• Owner's manual

• Receiver Unit Weight (kg) 0.08
• Transmitter Unit Weight (kg) 0.08
