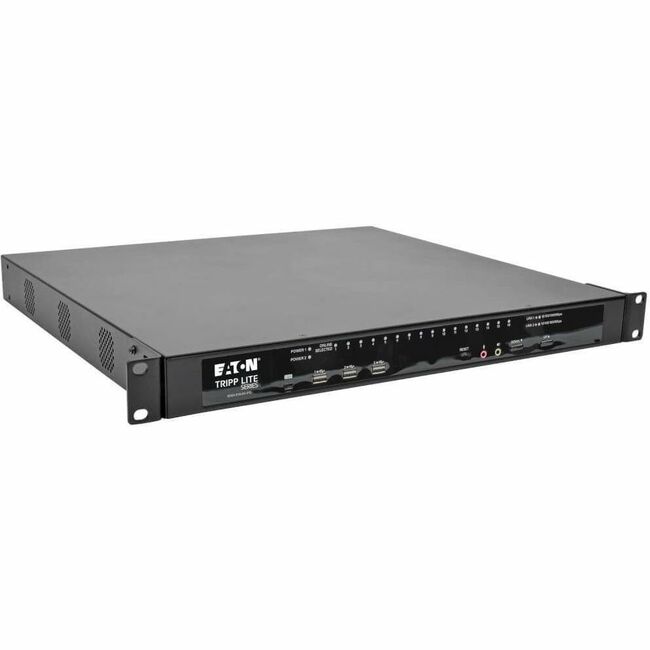

Tripp Lite 16-Port KVM Switch Cat5 Over IP 1 Local 4 Remote User 1U TAA GSA
Tripp Lite 16-Port KVM Switch Cat5 Over IP 1 Local 4 Remote User 1U TAA GSA - 16 Computer(s) - 1 Local User(s) - 4 Remote User(s) - 1600 x 1200 - 2 x PS/2 Port - 2 x USB - Rack-mountable - 1U
| $4,722.55 | Retail $6,880.00 |
- Simultaneous support for 5 users(1 local, 4 remote)
- Supports IPv4, Link Local IPv6 Address and IPv6 Stateless Auto configuration protocols
- Includes both DVI and VGA console ports for connection of either a DVI or VGA monitor
- Blade server support
- Virtual Media allows computers connected using a B055-001-USB-V2 SIU to access DVD/CD drives, flash drives and other storage media from a user's remote computer as if it were directly connected
- Remote Authentication: RADIUS, LDAP, LDAPS, and Active Directory
- Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
127059
Item:
B064-016-04-IPG
UPC Code:
037332151544
Our Part #
2KM156
Condition
New
$4,722.55EA
$6,880.00
$6,880.00
Availability
Only 3 Left In Stock
Product description
Tripp Lite 16-Port KVM Switch Cat5 Over IP 1 Local 4 Remote User 1U TAA GSA - 16 Computer(s) - 1 Local User(s) - 4 Remote User(s) - 1600 x 1200 - 2 x PS/2 Port - 2 x USB - Rack-mountable - 1U
16 Computer(s) - 1 Local User(s) - 4 Remote User(s) - 1600 x 1200 - 2 x PS/2 Port - 2 x USB - Rack-mountable - 1U
Specifications
KVM Technology
Digital
Number of Local Users Supported
1
Number of Remote Users Supported
4
UPC Alternates
037332151544 098379125721
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
16"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Graphic Mode
UXGA
Height
1.8"
Limited Warranty
3 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B064-016-04-IPG
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Tripp Lite's 16-port NetDirector Cat5 IP KVM Switch is the optimal solution for remotely controlling multiple computers(combination of PS/2 USB and Serial) by up to 5(1 Local and 4 Remote) independent simultaneous users. Both DVI and VGA console ports are included for connection of either a DVI or VGA monitor. High video resolution: up to 1920 x 1200 @ 60Hz - 24 bit color depth for the local console; up to 1920 x 1200 @ 60Hz with 24 bit color depth for remote sessions at up to 164 ft.(50 m). A full-screen graphical OSD with multi-level authentication(Super Administrator Administrator and User) allows you to quickly and efficiently manage your installation and can be displayed in English German Russian Japanese traditional Chinese and simplified Chinese. Critical events on the installation can be tracked via email notification SNMP traps the Windows-based log server or Syslog server. Accessing the connected computers is a breeze; view multiple computers at the same time using panel array mode automatically sync USB mice access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2
Server Interface Unit to access DVD/CD drives flash drives and other storage media as if they were directly connected to the computer. In addition three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Also located on the front of the KVM is a USB Mini-B port that allows for direct connection of a laptop for easy console operation of the switch. Other features include FIPS 140-2 level 1 security standards support dual power supplies that allow the unit to continue running in the event one power supply stops receiving power temperature sensors that control the speed of the unit's cooling fans remote authentication support via RADIUS LDAP LDAPS and Active Directory dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing.
Server Interface Unit to access DVD/CD drives flash drives and other storage media as if they were directly connected to the computer. In addition three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Also located on the front of the KVM is a USB Mini-B port that allows for direct connection of a laptop for easy console operation of the switch. Other features include FIPS 140-2 level 1 security standards support dual power supplies that allow the unit to continue running in the event one power supply stops receiving power temperature sensors that control the speed of the unit's cooling fans remote authentication support via RADIUS LDAP LDAPS and Active Directory dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing.
Maximum Video Resolution
1600 x 1200
Number of Computers Supported
16
Number of USB Ports
2
Package Contents
- NetDirector KVM Switch
- 2 x C5 to 5-15P Power Cords
- CD With Owner's Manual
- Quick Start Guide
- RJ-45 to DB-9 Adapter For Dial-In Modem Functionality
- USB/PS/2 Combo Console Cable Kit
- Grounding Wire
- Set of Foot Pads
- Rackmount Hardware
Product Line
NetDirector
Product Name
NetDirector KVM Switch
Product Type
KVM Switchbox
Rack Height
1U
Weight (Approximate)
17 lb
Width
17"
